EN-41000 four color 1000mm flexographic printing press
Model: EN-41000
1. flexographic printing press Main Technical Parameters:
1,Model:1000mm
2,print material: non woven fabric, roll paper, plastic film and so on
3,max printing width:960mm
4,max printing length: 100-1000mm
5,printing speed: 10-50m/min
6,Thickness of plate(Including Two-sides Glue Paper): 2.38mm
7,Overall Dimensions: 4600*2000*2500mm
8,Weight of Machine : 2800kg
2. Feeding material part:
1, roller length:1100mm
2, effective printing roller length: 960mm
3, roller core diameter of 76mm
4, discharge maximum diameter:800mm
3. Traction part:
1, traction consists of: chrome-plated roller, rubber roller
2, group number: 4 groups
4. Printing sections:
1, printing consists of:chrome-plated roll, plate roller, anilox roller, rubber roller
2, plate roller circumference: 100-350mm
3, print material: resin plate or rubber plate
4, Transmission: 0 helical gear drive
5, printing chromatography:360-degree rotation
6, adjustment method: Manual or Automatic
7, rise and fall of plate roller:manual
5.Drying system:
1, drying method: blow and heating
2, the heating zones: 4Color: 4 units
3, heating power: 2.2kw
4, auxiliary drying length: 1 meter
5, fans: 2
6, fan power 600mm: 2*0.55kw
6.Electrical Parts:
1, Main Motor: 4-color 1000mm: 3.5kw
2, Ink Motor: 4-Color: 1000mm: 0.75kw
3, Speed using frequency converter control
7.Rewinding Part:
1, roller length: 1100mm
2, effective roller length: 1000mm
3, roll core diameter: 76mm
4, discharge maximum diameter: 1000mm
5, rewinding method: friction type
8.The main list of detailed configuration
1, the main motor (frequency conversion motor): 1: 2.2KW (Shanghai)
2, ink motor: one 0.75kw (Shanghai)
3, host converter: 1 set (Hong Kong)
4, fan: 2 * 0.75KW (Shanghai)
5, aluminum roller guide:(Taiwan)
6, Anilox roller: (China)
7, rubber roller: (China)
8, magnetic braker: one (Shanghai)
9, Tension Controller: (Shanghai)
10, low-voltage electrical appliances: (China Chint Group)
11, photoelectric correction: (China)
12, air shaft: 2 (Ryan glare Machinery Factory)
13, the switch: (Schneider)
14, electrical control box: (China)
15, pneumatic components: (China)
Spare parts for free:
Tool Box 1 set (1-10# screwdriver, oil gun, Inner Hexagon Spanner 1 set, Switches 2 pcs, Contactor 2 pcs ,heating tube 2 pcs, machine operation instruction 1 pcs, the inverter instruction 1 pcs )
9. flexographic printing press Picture show

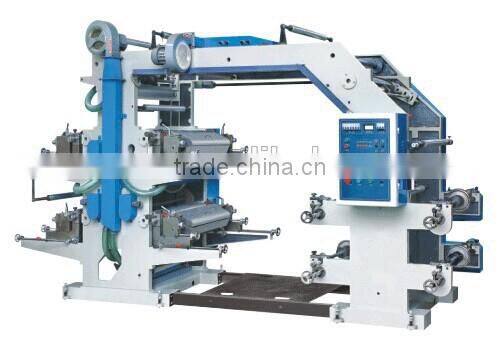

whole machine:

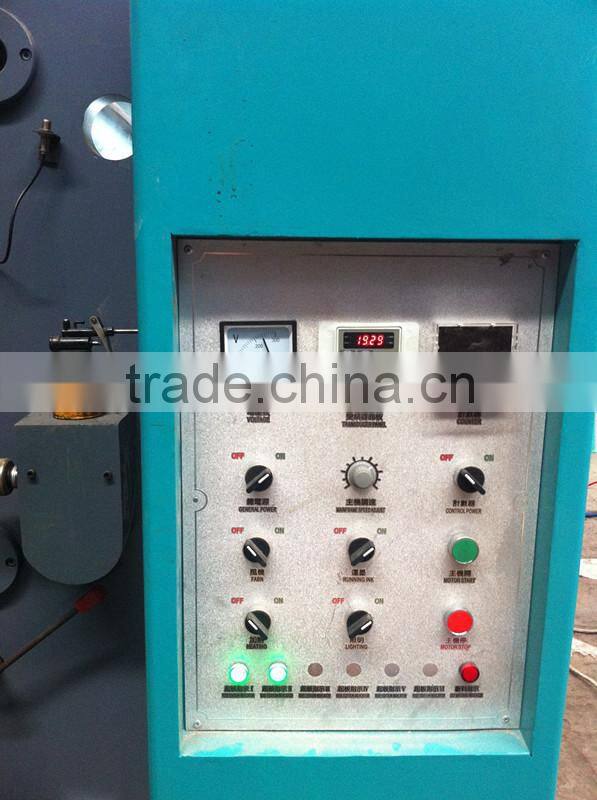

Machine part:
flexographic printing press shipping:Loading container in factory.
Our after sale service:
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.
If you are interested in our Products,pls contact me freely.
We are willing to provide our best quotation and service to you.
Waitting for your reply.
Thanks
Fiona
Note: Our factory also could specially make machine size for you, any other requirement, pls feel free to contact me , thanks!
Company:Ruian Enoch Plastic Machinery Co.,Ltd
Website: .
Mobile:0086-18968887620
Tel: 0086-577-65111018 Fax: 0086-577-65111028
