Double-layer,four-line,Bottom Sealing Cold Cut Bag Making Machine (LDF-800/1000/1200)

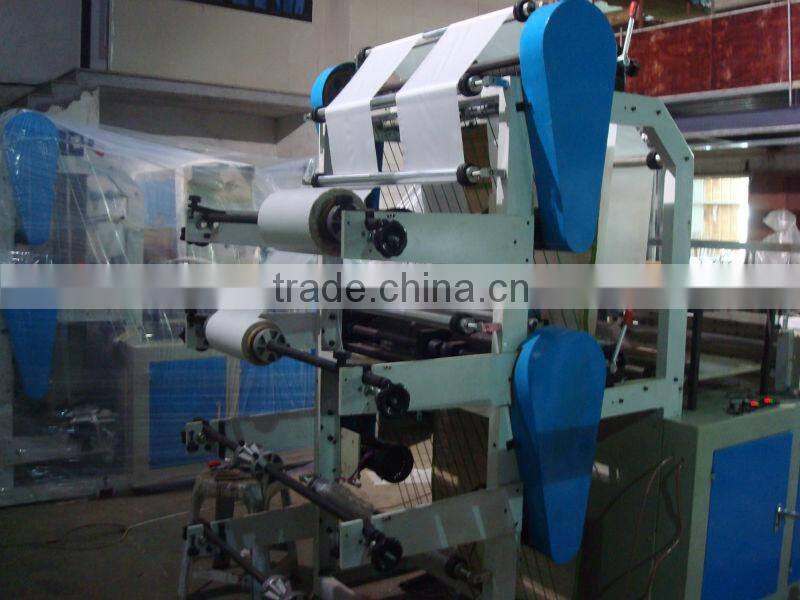

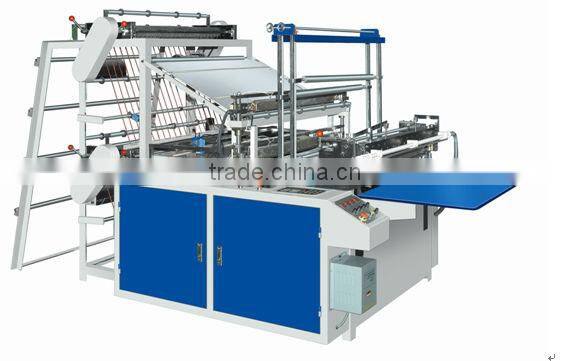

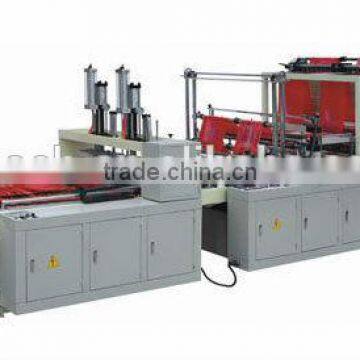

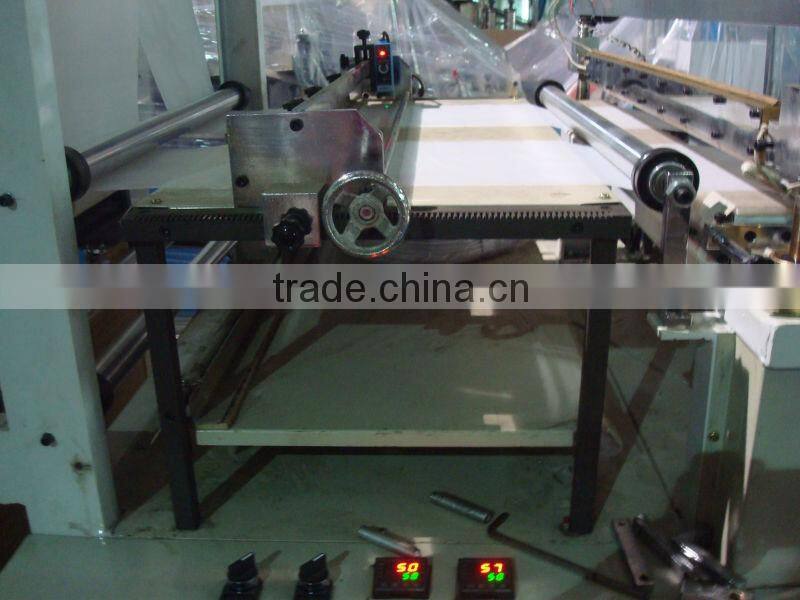

1.machine pics
2.machine deatils and specification
Use: It is suitable for producing all kinds of natural & color film into vest bag and flat-rim bags, which widely used in food packing, garment packing, industrial field and electrical products etc.
Characteristic:
1. It adopt moveable lower blade so as to avoid sticking film. It's the biggest advantage in the machine.
2. It has imported photocell for tracking with stable function; When losing photoelectric sign, machine stops automatically. And unwinding part adopts reflecting photoelectrical controller.
3. It adopts micro computer to control, servo motor to pull material, and cutting pieces setup can be at random.
4. It equips with DC motor, has overloading protection function and high position stop function.
Main Technical Parameters | |||
Model |
LDF-800 |
LDF-1000 |
LDF-1200 |
Producing Width |
700mm×2,250mm×4 |
900mm×2,350mm×4 |
1100mm×2,450mm×4 |
Max.Cutting Length |
800mm |
1200mm |
1200mm |
Thickness |
0.01-0.20mm |
0.01-0.20mm |
0.01-0.20mm |
Making Bag Output |
50-100circle/min |
50-100circle/min |
50-100circle/min |
Main Power |
1.5kw |
1.5kw |
1.5kw |
Overall Power |
4.5kw |
5kw |
5kw |
Weight of Overall |
1500kg |
1800kg |
2000kg |
Overall Dimensions (L×W×H) |
5000×1400×2000mm |
5000×1600×2000mm |
5000×1800×2000mm |

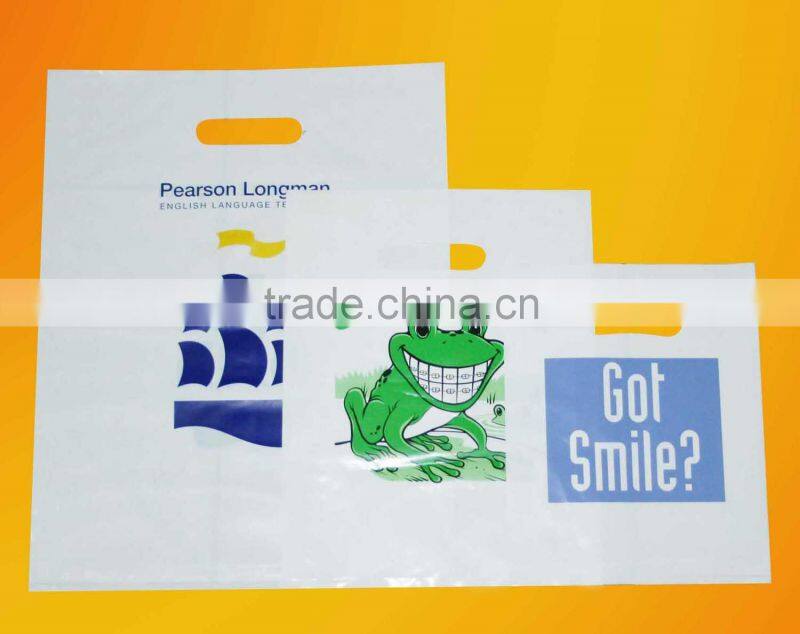

3. Bag sample :
Our Services
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.
Packaging & Shipping
Packaging:first packed by film.then fix by stretch film.
shipping:Loading container in factory
