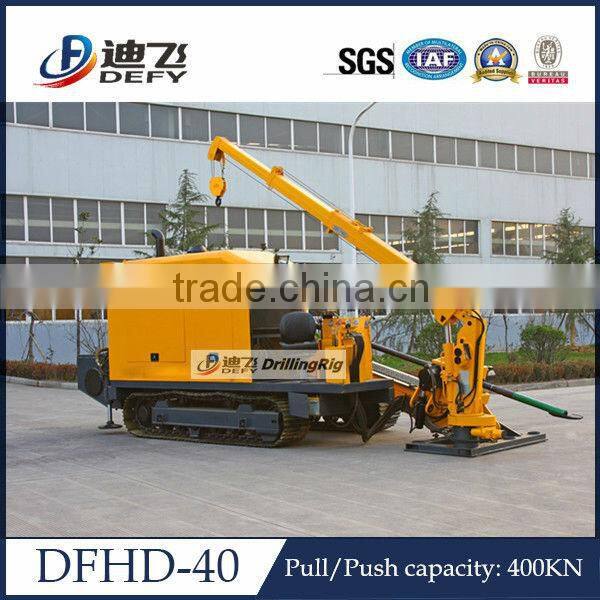

Underground Cable Pipeline 400KN Horizontal Directional Drilling Rig Machine Manufacturer
- Qingdao Ningbo
- T/T Money Gram Credit Card
You May Like
-
15Ton Thrust Underground Pipeline Laying Horizontal Directional Drill Machine DFHD-15
-
HDD Rig DFHD-15DL With a Max. Pull Force of 15Tons and Crawler Chassis for Any Terrain
-
DFHD-15DL 15Tons Directional Boring Machine for Sale
-
15T Horizontal Directional Boring Rig for Sale, DFHD-15DL HDD Rig Manufacturer
-
DFHD-15DL Powerful Horizontal Directional Drilling Rig for Trenchless Pipeline Installation
-
Underground Pipeline Laying Horizontal Directional Drill Rig Machine DFHD-15DL
Product Details
| Condition | New | Type | Other, HDD Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | DFHD-40 | |
| Usage | Other | Power(W) | 175 KW | |
| Dimension(L*W*H) | 7800*2300*2350 mm | Weight | 16T | |
| Certification | BV,SGS certificate | Warranty | One year warranty excluding wearing parts | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Manufacturer of DFHD-15 Horizontal
Directional Drilling Rig, HDD Rig for Sale
Brief Details of Horizontal Directional Drilling Rig :
1. Model No.: DFHD-40
2. Engine Power: 175KW (2200r/min)
3. Feeding Force: 400KN
4. Pulling Force: 400KN
5. Warranty: One year guarentee excluding wearing parts
6. Certifications: BV,SGS Certificate
7. Application:Municipal,electricity,telecommunications,water,gas,heat trenchless laying of pipelines
Product Specifications of DFHD-40 Horizontal Directional Drilling Rig:
1. Introduction
DFHD-40 is a full Hydraulic drilling rig mounted on self-propelled rubber crawler,equipped with durable rubber belts of crawlers, the rig is suitable for moving. And the rig could get on and off standard trailer on its own and it is quick for transportation and allocation. With movable mast, the rig is guaranteed to drill within the full angle scope. It is in good stability with graceful structure.With big torque, reasonable structure design, advanced operation way and 4.5 m length of rod.
Parameters of HDD Rig DFHD-40
The Main Machine | |
Power of Engine | 175KW(2200r/min) |
Max. Push capacity | 400KN |
Max. Pull capacity | 400KN |
Mud Pump | BWF-400 |
Hollow Spindle RPM | Lower 0-40r/min |
High 0-80r/min | |
Feeding Stroke | 5000 mm(137.8 inch) |
Diameter of Guide Hole | 170mm |
Drilling Angle | 8°---22° |
Pressure of hydraulic system | 20Mpa |
Traveling speed | 1.5 km/h (8200 feet/h) |
Structural Style | integrated with rubber crawler and mud pump |
Dimension (L×W×H) | 7800*2300*2350 mm |
Weight | 16tons |
Different Models of Horizontal Directional Drilling Rigs for your choice
Model | Engine Power | Feeding force(KN) | Pulling Force(KN) |
DFHD-15 | 85KW (2200r/min) | 75 | 150 |
DFHD-20 | 110KW (2300r/min) | 200 | 200 |
DFHD-28 | 132KW (2300r/min) | 280 | 280 |
DFHD-32 | 145KW(2300r/min) | 320 | 320 |
DFHD-40 | 175KW(2300r/min) | 400 | 400 |
DFHD-60 | 225KW (2200r/min) | 620 | 620 |
DFHD-120 | 338KW (1900r/min) | 1220 | 1220 |
DFHD-245 | 450KW*2 sets | 2450 | 2450 |
DFHD-400 | 552KW*2 sets | 4000 | 4000 |
DFHD-550 | 784KW*2 sets | 5500 | 5500 |
DFHD-750 | 960KW*2 sets | 7500 | 7500 |
Drilling Rig Manufacturer DERY Service
2.Your problems can get feedback in 8 hours and soloved in 24 hours.
3.Machine can be customized as per your requirements.
Contact details
Please donot hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
