Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-1
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-2
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-3
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-4
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-5
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale thumbnail-6
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-1

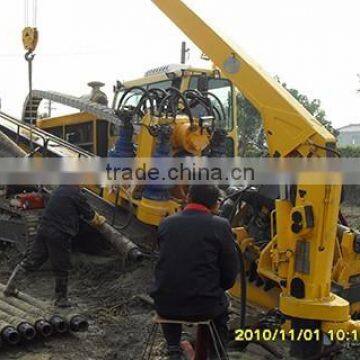

Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-2
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-3
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-4
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-5
Large Pulling Force Hdd Machine Horizontal Directional Drilling Machine for Sale photo-6
US$ 180,000 - 220,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, HDD machine
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, HDD machine
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DFHD-68
Usage Other, optical fiber line, water pipe
Voltage 380V
Power(W) 243kW
Dimension(L*W*H) 9000*2750*2800mm
Weight 22000kg
Certification ISO, BV, SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

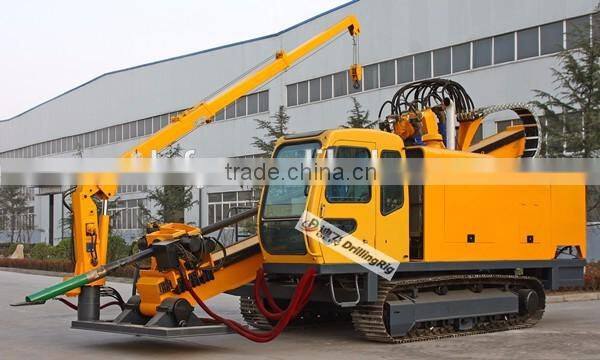

DFHD-68 horizontal directional drilling machine for sale

DFHD-68 Horizontal directional drilling machine is widely used for not digging the ground surface, the laying of a variety of underground utilities (pipelines, cables, etc.) a construction machine, which is widely used in water supply, electricity, telecommunications, natural gas, gas, oil and other pipeline laying construction, it is suitable for sand, clay, gravel, etc. conditions.

Large Pulling Force

680kN pulling force, enough for middle and large scale drilling projects.

Anchor institutions:

Anchor institutions ensures working stability.

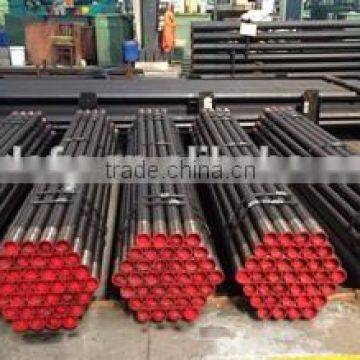

Drill rod and drill bits:

Drill pipe is a high strength steel pipe drill diameter Φ200 ~ Φ900mm.

Powerful Cranes

Equipped with cranes, more convenient to hoist and install drill rods.

Driver‘s Cab

Equipped with driver's cab, more hommization and convenient.

Crawler Type

More stable and high trafficability, can get across different area and move in the working site.

Detailed Image
Technical Parameter
DFHD-68 Horizontal Drilling Machine
1
Main Machine
2
Power
WeiChai243kW / Cummins 239KW
3
Feeding/pulling system
680/680kN
4
Roted rotary torque
27000N.m(45r/min)   13500N.m(90r/min)
5
Rotary speed of main shaft
0-45r/min , 0-90r/min
6
Feeding stroke
6m
7
Pilot hole diameter
φ240mm
8
Drilling angle
8-16°
9
Walking speed
1.5-3.0km/h
10
Structure type
Steel crawler, Motor rack and pinion feeding, cab, crane, mud pump are integrated on one.
11
Crane
2 tons direct-arm Crane
12
Dimension
9000×2750×2800mm
13
Weight
22000kg
14
Mud pump
15
Model
BWF-600
16
Max. Water flow
600L/min
17
Max. Pressure
8Mpa
18
Weight
650kg
19
Pulping system
Optional
20
Auxiliary System
21
Drill rod
φ102×5000mm
22
Pilot drill bit
φ170(φ230)mm
23

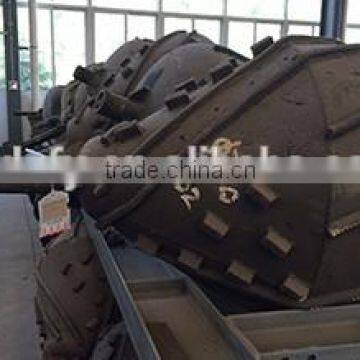

Reaming bit
φ425φ500φ680φ760φ820φ920φ1000
24
Transfer case
80T
Packing & Delivery
Working Site

DFHD-68 Horizontal directional drilling machine working in Cambodia

Our Company

ZhengZhou Defy 12 years professional exporting experience, realiable drilling machine manufacturer since 1970S.

Defy offer water well drilling machines drilling depth from 100m, 200m, 400m, 600m, 800m and 1500m. with 75-1500mm diameter. geotechnical core drilling machine from 0-3000m depth.


HDD drilling machine,15ton, 32ton, 68ton, 130ton pulling force for your choices.

Spindle rotary type drilling machine,Horizontal directional tube well drilling machine, pneumatic air operated drilling machine, trailer, crawler, truck mounted drilling machine for your choices.
