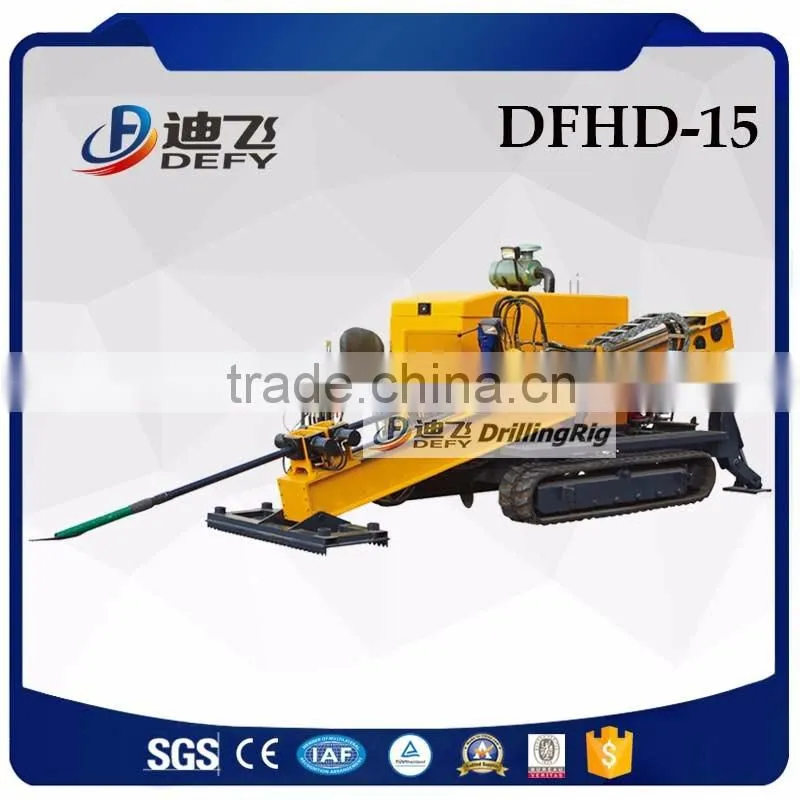

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-1

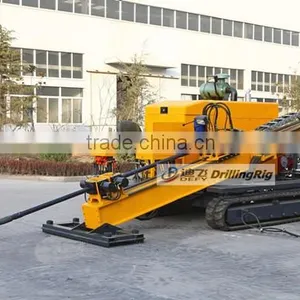

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-2

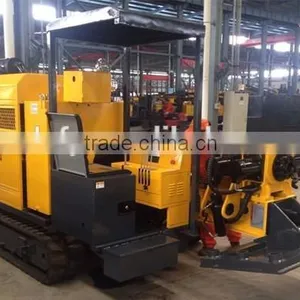

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-3
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-4
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-5
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice thumbnail-6
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-1

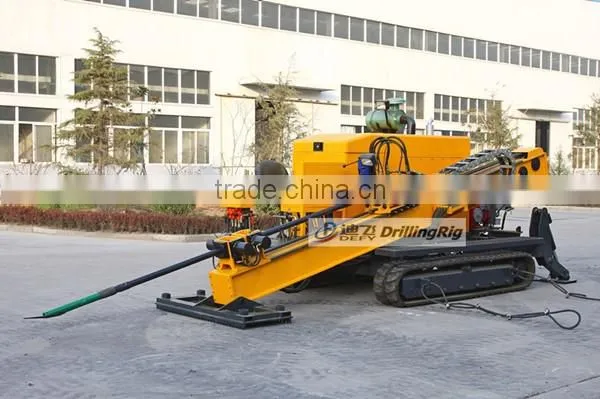

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-2

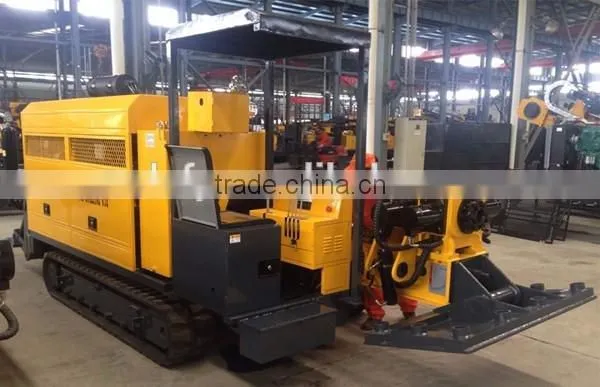

DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-3
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-4
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-5
DFHD-15 15t Mini Horizontal Directional Core Drilling Machine Supplier's Choice photo-6
US$ 35,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DFHD-15
Usage Coal
Voltage 220V/380V
Power(W) 89hp
Dimension(L*W*H) 5800*2050*2380 mm
Weight 6100kg
Certification bv,sgs
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Detailed Images

DFHD-15 15t Mini horizontal directional core drilling machine

15t Mini horizontal directional core drilling machine is widely used for not digging the ground surface, the laying of a variety of underground utilities (pipelines, cables, etc.) a construction machine, which is widely used in water supply, electricity, telecommunications, natural gas, gas, oil and other pipeline laying construction, it is suitable for sand, clay, gravel, etc. conditions.

Technical Parameter
DFHD-15 15t Mini horizontal directional core drilling machine
Item
Power of Engine
66.2 KW(89HP) (2200r/min)
1
Max. Push capacity
75KN (16860 lbf)
2
Max. Pull capacity
150KN (33720 lbf)
3
Rated Torque
4200 N·M(3096 lbf·ft)
4
Hollow Spindle RPM
Lower 0-60r/min,h 0-120r/min High
5
Feeding Stroke
3500 mm(137.8 inch)
6
Diameter of Guide Hole
80 mm(3.15 inch)
7
Drilling Angle
0°---20°
8
Pressure of hydraulic system
20-25Mpa(2901-3626 psi)
9
Traveling speed
2.5 km/h (8200 feet/h)
10
Structural Style
integrated with rubber crawler and mud pump
11
Dimension (L×W×H)
5800×2050×2380 mm(228×81×94 inch)
12
Weight
6100 kg(13450 lb)
13
Mud Pump
Mud Pump
14
Specification
BW-160A
15
Max. Discharge
160 L/min(42.3 US Gallons/min)
16
Peak Pressure
10 Mpa(1450 psi)
17
Mud Process System
Mud Process System
18
Mud Tank
1.5M3 (53 feet3)
19
Drilling tools and auxiliary system
Drilling tools and auxiliary system
20
Specification of Rod
60×3000 mm(2.36×118 inch)
21
Guide Bit
80 mm(3.15 inch)
22
Reamer
179;259;313;365;417mm
(7.05;10.2;12.32;14.37;16.42 inch)
24
Distributor
25T(55125 lb)
25
Tracker
Optional Part

Advantages:


1. With low emission diesel engine, it is suitable for performance in city;

2. The chassis and mast are high in rigidity and intensity, they are durable and reliable.

3. Equipped with hydraulic outriggers, ensuring working stability.

4. The mud pump is driven hydraulically with four-speed mechanical gear shift/stepless speed change.

5.Equipped individually of mud processing unit, adopting injection and recirculation storage procession method,the efficiency will be increased and the intensity of labor will be decreased.

6.With the rod, 60mm in diameter and 3000mm in length, the drilling tools are complete in matching accessories and could be produced in accordance with the requirement of clients unusually.

Detail pictures



Reamer bits


Guide bit

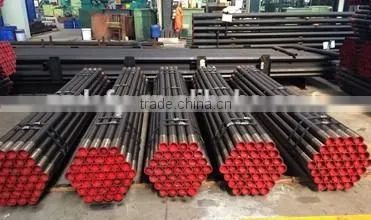

drilling rods

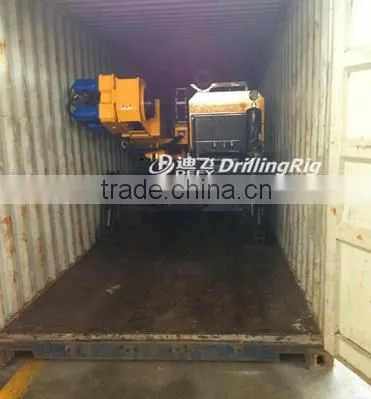

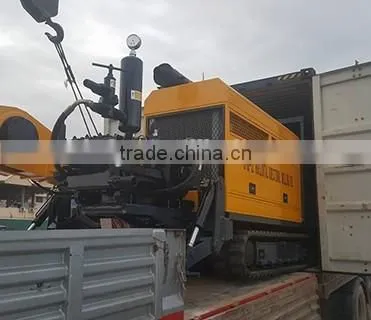

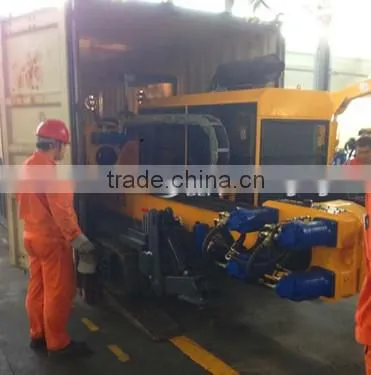

Delivery pictures of DFHD-15 15t Mini horizontal directional core drilling machine
