15T Full Hydraulic HDD Drilling Rig for Fiber Pipe Laying

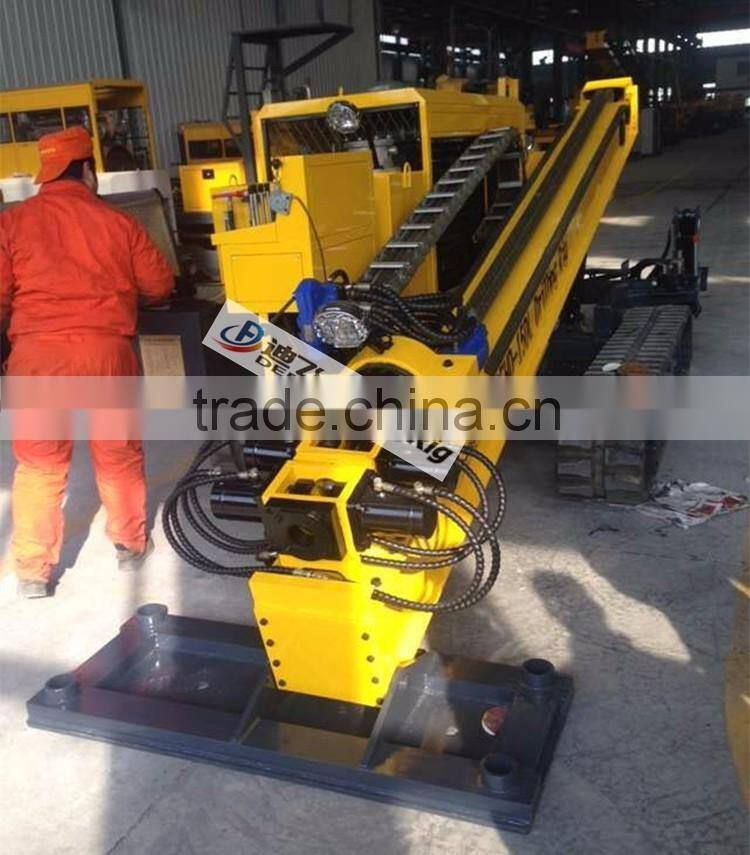

15T Full Hydraulic HDD Drilling Rig for Fiber Pipe Laying photo-1
US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DFHD-15
Usage Other, urban pipe laying
Voltage 380V
Power(W) 66.2 KW
Dimension(L*W*H) 5800x2050x2380mm
Weight 6100 kg
Certification BV,SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

DFHD-15 HDD Drilling Rig for Fiber Pipe Laying

DFHD-15 HDD Drilling Rig is a full Hydraulic Directional Drilling Rig self-propelled with rubber crawler belts. With advanced and compact structure, high efficiency, low oil temperature; main hydraulic components, motor and mud pump all selected and adopted from domestic famous-brand products as auxiliary equipments; equipped with durable rubber belts of crawlers, the rig is suitable for moving in the city. And the rig could get on and off standard trailer on its own and it is quick for transportation and allocation. With movable mast, the rig is guaranteed to drill within the full angle scope. It is in good stability with graceful structure.

Application

1. municipal, electricity, telecommunications, water, gas, oil, gas, heat trenchless laying of pipelines.
2. The level of precipitation for the project.
3. Control Project for the bad environment (contaminant seepage treatment).
4. For long distance Forepoling project.
5. The basis for special treatment and advanced drilling and other pipe jacking project.

Specification
The Main Machine
Power of Engine
66.2 KW(89HP) (2200r/min)
Max. Push capacity
75KN (16860 lbf)
Max. Pull capacity
150KN (33720 lbf)
Rated Torque
4200 N·M(3096 lbf·ft)
Spindle RPM
Lower 0-60r/min
High 0-120r/min
Feeding Stroke
3500 mm(137.8 inch)
Diameter of Guide Hole
80 mm(3.15 inch)
Drilling Angle
0°---20°
Pressure of hydraulic system
20-25Mpa(2901-3626 psi)
Traveling speed
2.5 km/h (8200 feet/h)
Structural Style
integrated with rubber crawler and mud pump
Dimension (L×W×H)
5800x2050x2380 mm(228×81×94 inch)
Weight
6100 kg(13450 lb)
Mud Pump
Specification
BW-160A
Max. Discharge
160 L/min(42.3 US Gallons/min)
Peak Pressure
10 Mpa(1450 psi)
Mud Process System
Mud Tank
1.5M3 (53 feet3)
Drilling tools and auxiliary system
Specification of Rod
60×3000 mm(2.36×118 inch)
Guide Bit
80 mm(3.15 inch)
Reamer
179;259;313;365;417mm
(7.05;10.2;12.32;14.37;16.42 inch)
40T(88200 lb)
Distributor
25T(55125 lb)
Detailed Images

Drill Rod

Model: G105 Material

Wear -resistant, good anti-stress.

Directional Drill Bit

Probe of Guide instrument is installed inside, to guide direction.

Reamer Bit

Reaming holes for pipes

Size: 159mm, 216mm, 316mm, 416mm, 516mm, 616mm, 716mm, 816mm, 900mm, 1000mm, 1100mm, 1200mm, etc.

GL-350 Guide Instrument

Main part is imported from America.

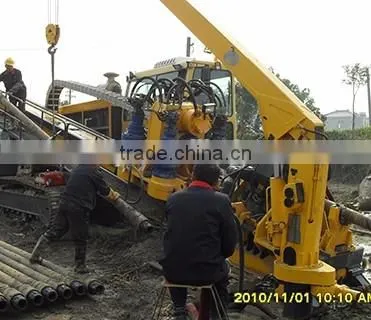

Working Site
Packing & Delivery
Packaging
Size
40' HQ for complete set
Weight
10 T



Packaging Details
Main machine is naked packing.
Small parts are packed in wooden and carton cases.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Inspect our Factory and discuss details.
* Try machine.

After-Sales Service

* Training how to install and operate machine in our factory.
* Overseas training is available as request.
* We will send you accessories at any time you need.
