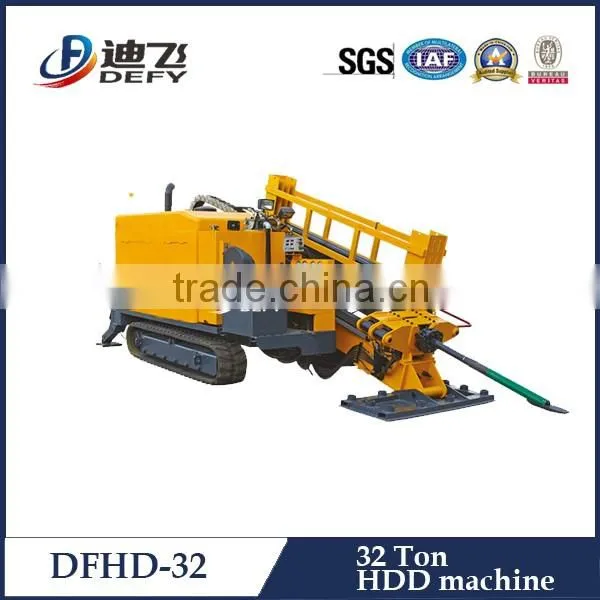

DFHD-32 New Condition and Diesel Power Type HDD Drill Rig

Name: DFHD-32 New Condition and Diesel Power Type HDD Drill Rig
Brand: DEFY
SKU: 117560811
Availability: InStock

DFHD-32 New Condition and Diesel Power Type HDD Drill Rig thumbnail-1

DFHD-32 New Condition and Diesel Power Type HDD Drill Rig photo-1

US$ 70,000 - 90,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Lianyungang Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Henan, China

Brand Name DEFY

Model Number DFHD-32

Usage Other, urban pipe laying

Voltage 380V

Power(W) 145KW

Dimension(L*W*H) 5820*2250*2400mm

Weight 8400 kg

Certification BV,SGS

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

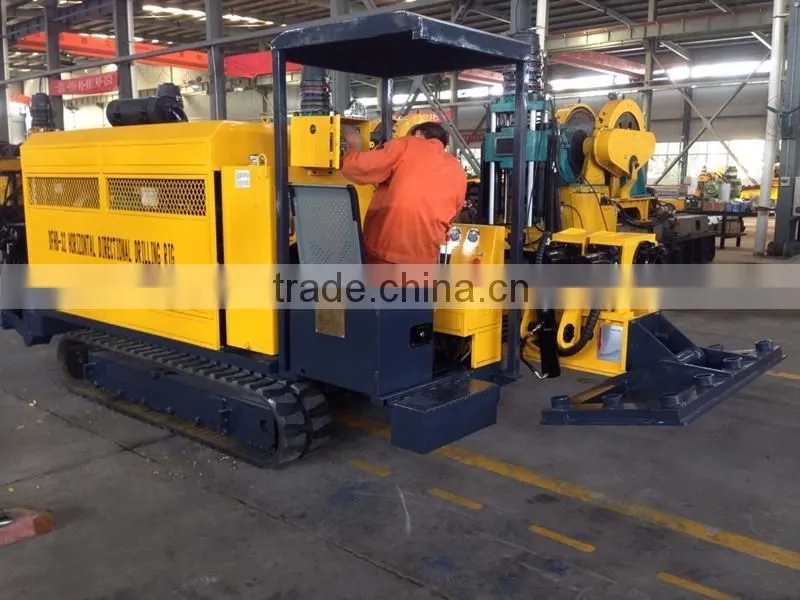

DFHD-32 HDD Drilling Rig for Sale

DFHD-32 HDD Drill Rig is driven with full hydraulic system, propelled with its own crawlers. With reasonable structure, easy operation, high efficiency; main hydraulic components, motor and mud pump all selected and adopted from domestic famous-brand products as auxiliary equipment; with durable rubber belts of crawlers, the rig is suitable for moving in the city with no injury of pavement. And the rig could get on and off standard trailer on its own and it is quick and convenient for transportation and allocation. With low center of gravity, the rig is durable and reliable and in good stability with graceful structure.

Application

1. municipal, electricity, telecommunications, water, gas, oil, gas, heat trenchless laying of pipelines.
2. The level of precipitation for the project.
3. Control Project for the bad environment (contaminant seepage treatment).
4. For long distance Forepoling project.
5. The basis for special treatment and advanced drilling and other pipe jacking project.

Specification

The Main Machine
Power of Engine	Weichai Deutz 145kW
Max. Push capacity	330kN
Max. Pull capacity	330kN
Rated Torque	13000N.m
Spindle RPM	Lower 0-48r/min
Spindle RPM	High 0-96r/min
Feeding Stroke	3300 mm(130 inch)
Diameter of Guide Hole	φ130（165）mm
Drilling Angle	0°20°
Pressure of hydraulic system	20Mpa(2901 psi)
Traveling speed	2-2.6 km/h(6560-8528 feet/h)
Structural Style	integrated with rubber crawler and mud pump
Dimension (L×W×H)	582022502400mm
Weight	8400 kg
Mud Pump
Specification	BW-250
Max. Discharge	250 L/min
Peak Pressure	7 Mpa
Mud Process System
Data of engine	4KW(5.4HP) petrol engine
Pump parameter	KGP30、30m3/h
Mud processing capacity	6 M3/h (212 feet3/h)
Mud Tank	2M3 (71 feet3/h)
Drilling tools and auxiliary system
Specification of Rod	73×3000 mm(2.87×118 inch)
Guide Bit	130 mm or 150mm
Reamer	325;400;500;600;720mm
Distributor	40T(88200 lb)
Tracker	Optional Part

Detailed Images

Drill Rod

Model: G105 Material

Wear -resistant, good anti-stress.

Directional Drill Bit

Probe of Guide instrument is installed inside, to guide direction.

Reamer Bit

Reaming holes for pipes

Size: 159mm, 216mm, 316mm, 416mm, 516mm, 616mm, 716mm, 816mm, 900mm, 1000mm, 1100mm, 1200mm, etc.

GL-350 Guide Instrument

Main part is imported from America.

Working Site

Packing & Delivery

Packaging
Size	40' HQ for complete set
Weight	10 T
Packaging Details	Main machine is naked packing. Small parts are packed in wooden and carton cases.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Inspect our Factory and discuss details.
* Try machine.

After-Sales Service

* Training how to install and operate machine in our factory.
* Overseas training is available as request.
* We will send you accessories at any time you need.
