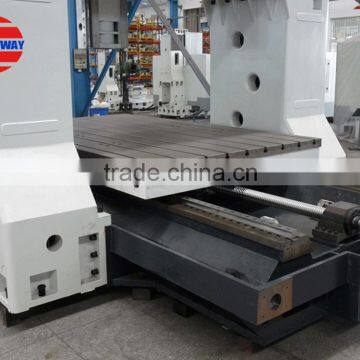

Large Cnc Gantry Type Milling Machine LM-5027

Machine Type

unit

LM5027A/B

Worktable

Worktable(length×width)

mm

5000×2300

Maximum load of table

kg

18000/22000

T-slot(number of slot × slot width × pitch)

mm

11-22×200

Triaxial itinerary

Gantry width

mm

2700

Travel for X/Y/Z axes

mm

5200/2700/1000

Distance from spindle nose to table surface

mm

310-1310

Feed system

CNC system

FANUC-Oi MD&FANUC 31i

Rapid shift of axes of X/Y/Z

m/min

10/12/10

Maximum cutting feed speed

m/min

7

Automatic tool transform system(CNC milling without)

Standard tool quantity

BT50/32

The largest diameter cutter knife/length

mm

Φ125/300

Tool exchanging manner

Air-operated

Maximum tool weight

kg

18

Precision

Positioning accuracy

mm

0.021

Accuracy of repeated positioning

mm

0.02

Guide form and specifications

X-axis guide specifications

Roller linear guide

Y-axis guide specifications

Roller linear guide

Z-axis guide specifications

Hard guide

Spindle system

Spindle specifications(model/installation diameter)

BT50/Φ200

Belt drive milling head, the maximum speed

r.p.m

4000

Motor power of spindle

kW

22/26

Air pressure

Requirements for air compressing

kg/cm²

≥6

Air pressure flux

m³/min

≥0.5

Machine specifications

Integrated weight(kg)

kg

51000/52000

Overall dimension(weight×width×height)

mm

11840×5150×4850

NO

Standard accessories

Special accessories

1

Pusher-type auto lubrication system

Assist table

2

Enclosed totally protective casing

NC turning table

3

Spiral cutting conveyer(both sides)

Set point station of tool

4

Serial belts spiral cutting conveyer and filings store bucket

PC scan profile modeling system

5

Cooling pumping of cutting crape and water tank

Optical scale

6

Air or oil pressure balance system of Z axis

90 degree mill head of side

7

Air pressure equipment

Universal mill head

8

Blowing and chipping equipment

45 degree mill head of side

9

Working lamp

10

Auto power-down equipment

11

Hand-operated wire control box

12

End of program and working warning light

13

RS-232 interface

14

Foundation screw and horizontal adjustment bolts

15

Operate service manual

16

Controller operate manual and electrical diagram

17

Tools of adjustment

18

Check meter of machinery precision
