Specifications
graphite mould making machine1.table:800x700mm
2.travel:700x700x300mm
3.spindle speed:24000rpm
4.weight:3000kg
welcome to visit our website,the specification data of graphite mould making machine SW-DX7070 is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.

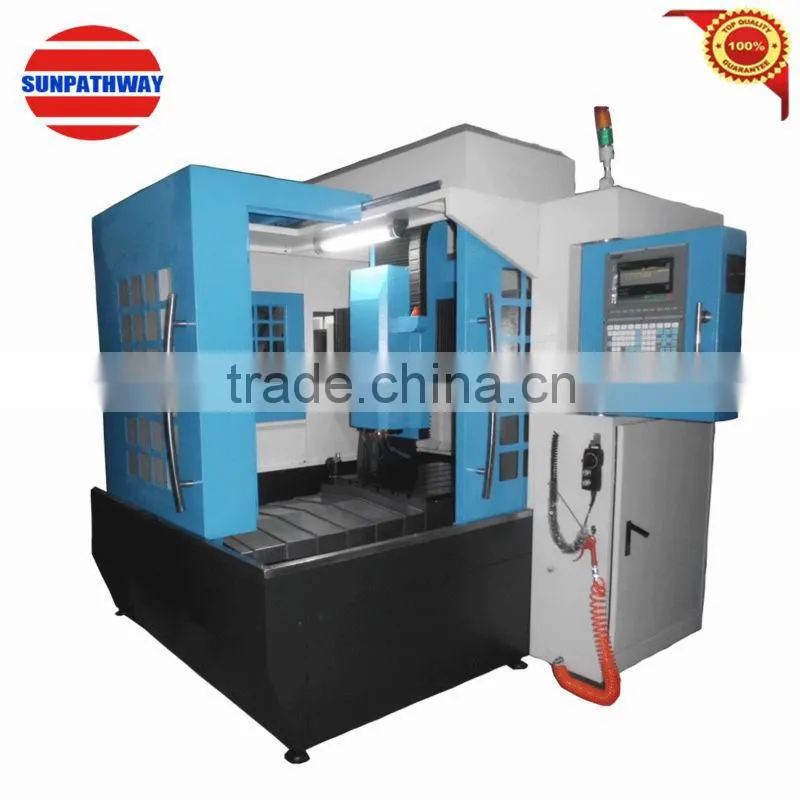

graphite mould making machine SW-DX7070
1.Specification:
model |
DX-7070 |
Table size(LxW) mm |
800×700 |
T-slot mm |
5-14 |
Spindle speed r/min |
600~24000/ 18000 |
Spindle output power KW |
3.2/4 |
Spindle(diameter range of tools) |
φ3-φ12/16 |
X axis mm |
700 |
Y axis mm |
700 |
Z axis mm |
300 |
The min distance from spindle to table |
100 |
Height of gantry door mm |
800 |
Permit height of gantry door mm |
400 |
Model of ball screw |
3205 |
Model of line rail |
X,Y,Z:H30 |
Max machining speed mm/min |
|
Positioning precision mm |
0.01/300 |
Resetting precision mm |
0.003 |
Max table load kg |
|
Machine weight kg |
3000kg |
Overall dimension mm |
2010×2150×2300 |
Main configuration
1.electrical parts
No. |
Name |
Orgin |
Note |
1 |
Cnc system |
SYNTEC or LNC |
|
2 |
Drive motor of 3 axis |
YASKAWA (Japan) |
0.85 KW |
3 |
Electrical spindle |
XURI or XINGCHENG |
3.2KW |
4 |
Travel switch |
Beijing |
|
5 |
Relay |
Schneider |
|
6 |
transformer |
Changnan(shanghai) |
|
7 |
Switch power |
Mean well(taiwan) |
|
8 |
Electron hand wheel |
Japan |
|
9 |
Motor of water tank |
ROCOI |
|
chanical parts
No. |
Name |
Orgin |
Note |
1 |
Coupling shaft |
Guangda |
|
2 |
Screw of three axis |
C3 level double nuts high precision |
φ32×5 |
3 |
Lubrication way |
XUNRUN(nanjing) |
Centralized Oiling |
4 |
bearing |
NSK or NACHI |
high accurate non-match bearings |
5 |
High precision Beeline rail of three axis |
Hiwin or Yintai |
|
6 |
Telescopic cover of Y asix |
Made in China |
Stainless steel |
7 |
Accurate Round Nuts |
YINSH or same grade |
|
8 |
Bolts of whole machine |
High Intensity 12.9 Grade(taiwan) |
|
9 |
Body of machine |
resin sand casting |
|
10 |
Whole Machine Painting |
|
Plastic Spraying |
photos
Production capacity
|
Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service. |
|
|
Engraving and milling machine DX5050,6060,7080 including the cover protection DX5050,6060 DX7080 |
Fuselage assembly shop of cnc engraving and milling machine
|
|
Graphite engraving and milling machine(complete) which exported to Korea DX-6050
|
engraving and milling machine(complete)4040
|
|
Graphite engraving and milling machine(complete) which exported to Brazil DX7070
Angle to open the door, in order to hoist workpiece directly by customer
High speed processing of graphite electrodes or electrode parts |
|
|
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time. |
|
|
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.
LM-1212 in our customer’s factory |
LM-1612 with tool changer,with oil cooling for spindle |
|
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG(Korea), Brazil,Argentina,Mexico,Turkey and other countries .All machines runs well,they have not broken till now,we always trust”no maintenance service is the best service”. |
|
D450 Electrical discharge machine |
|
|
CNC-OX Tauren type Electrical discharge machine
|
|
|
D430 all-in-one machine Base adopts frame structure, square steel welding, the stability is good.(Korean custom) |
|
