Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > New Model Metal Cnc Gantry Machine LM1813

New Model Metal Cnc Gantry Machine LM1813

Name: New Model Metal Cnc Gantry Machine LM1813
Brand: Sunway
SKU: 117139875
Availability: InStock

New Model Metal Cnc Gantry Machine LM1813 thumbnail-1

New Model Metal Cnc Gantry Machine LM1813 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Sunway

Contact Supplier Request Quote Chat Now

Nantong Sunway Science And Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Sunway

Model Number LM1813

Type Other, gantry type

CNC or Not CNC

Voltage 380V or chose by customer

Power(W) 50HZ or chose by customer

Dimension(L*W*H) 5000X2600X3600mm

Weight 15T

Certification ISO9000, ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

metal cnc gantry machine
1.table size:1800x1200mm
2.travel:1800x1300x700mm
3.spindle speed:6000rpm
4.door width:1400mm

New model metal cnc gantry machine LM1813

one.specification of New model metal cnc gantry machine LM1813

Model	LM1813
Worktable size(L×W) (mm)	1800×1200
Gantry width (mm)	1400
Max load of table (kg)	3000
T-slot width (mm)	7-22
travel for X axis (mm)	1800
travel for Y axis (mm)	1300
travel for Z axis (mm)	700
Distance from spindle's face to table surface (mm)	100-800
The spindle motor power(recommended) (kw)	11/15
Spindle taper model	BT40/BT50
Speed range (rpm)	6000
Motor power (kw)	4.4/3.5/3.5
X axis rapid feed (mm/min)	10000
Y axis rapid feed (mm/min)	12000
Z axis rapid feed (mm/min)	12000
Positioning precision (mm)	0.01/300
Repeating precision (mm)	0.005/300
overall dimension(lengthXwidthXheight) (mm)	5000X2600X3600
Machine weight (T)	15

Note:main configuration according to existing configuration

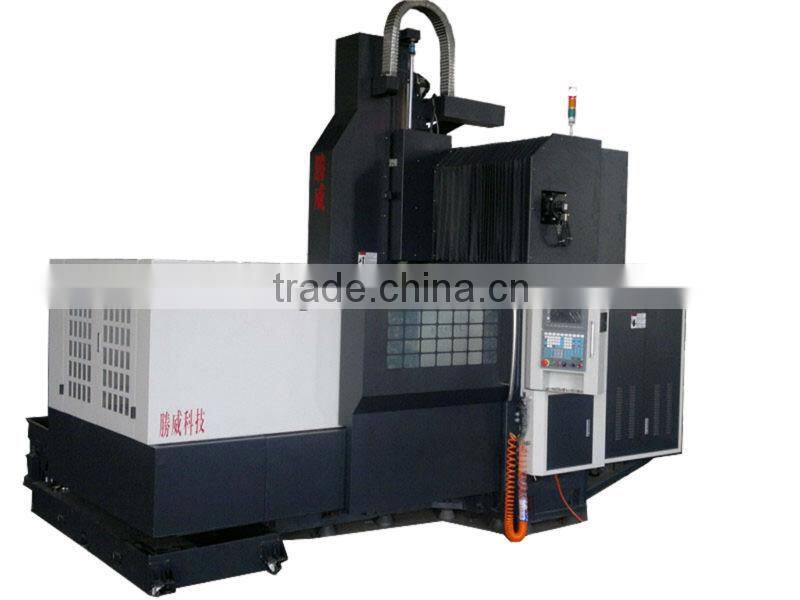

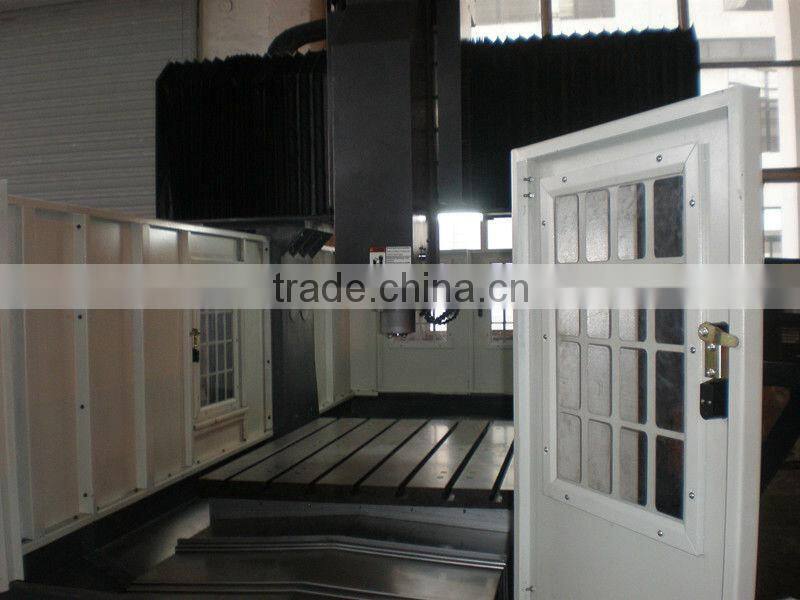

two.Pictures of New model metal cnc gantry machine LM1813

Three.Production capacity

Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.
Assembly shop of cnc engraving and milling machine
Graphite engraving and milling machine(complete) which exported to Brazil DX7070 Angle to open the door, in order to hoist workpiece directly by customer High speed processing of graphite electrodes or electrode parts
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time.
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.	LM-1612 with tool changer, with oil cooling for spindle
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”.
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face.
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.
Precision detection
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
