Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Gantry Type Cnc Milling Machine With Price LM2013

Gantry Type Cnc Milling Machine With Price LM2013

Name: Gantry Type Cnc Milling Machine With Price LM2013
Brand: Sunway
SKU: 117139855
Availability: InStock

Gantry Type Cnc Milling Machine With Price LM2013 thumbnail-1

Gantry Type Cnc Milling Machine With Price LM2013 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Sunway

Contact Supplier Request Quote Chat Now

Nantong Sunway Science And Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Sunway

Model Number LM2013

Type Vertical

CNC or Not CNC

Voltage 380V or chose by customer

Power(W) 50HZ or chose by customer

Dimension(L*W*H) 6110*3120*4130mm

Weight 17T

Certification ISO9000, ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

gantry cnc milling machine with price
door width:1300mm
table size:2200x1100mm
travel:2000x1300x900mm
spindle model:BT50

gantry type cnc milling machine with price LM2013

one.Specifications of gantry type cnc milling machine with price LM2013

MODEL	Unit	LM2013
Door width	mm	1300
Table size	mm	2200×1100
T-slot	mm	7-22×150
Max. load of table	T	6
Left-to-right travel (X axis)	mm	2000
Front-to-back travel (Y axis)	mm	1300
Spindle travel (Z axis)	mm	900
The distance from the spindle's face to table surface	mm	150-1050
Spindel model		BT50 (standard configurations,belt drive)15kw-26kw
Spindle speed	rpm	6000
Rapid shift of X axis	mm/min	12000
Rapid shift of Y axis	mm/min	12000
Rapid shift of Z axis	mm/min	10000
Cutting feed rate	mm/min	7000
Specification of lead screw(X/Y/Z)	mm	6310,5010,5010
Specification of guide rail(X/Y/Z)	mm	2-45,2-45,square line
Machine's net weight	T	17

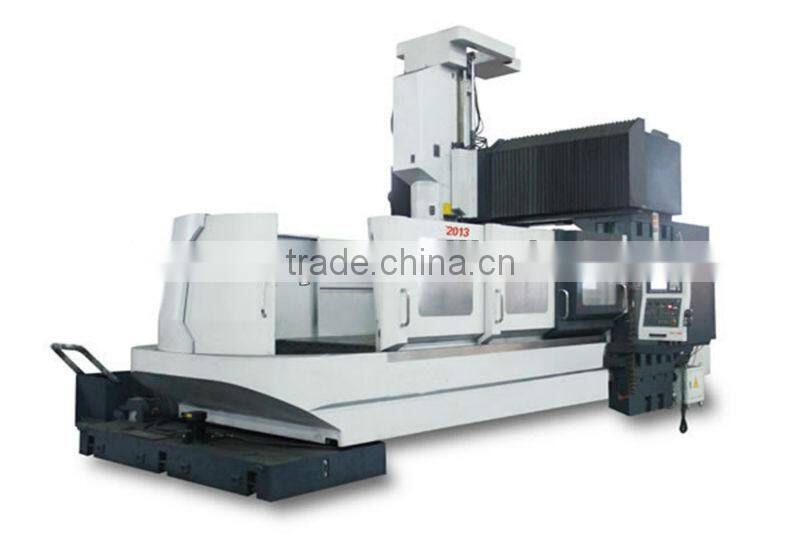

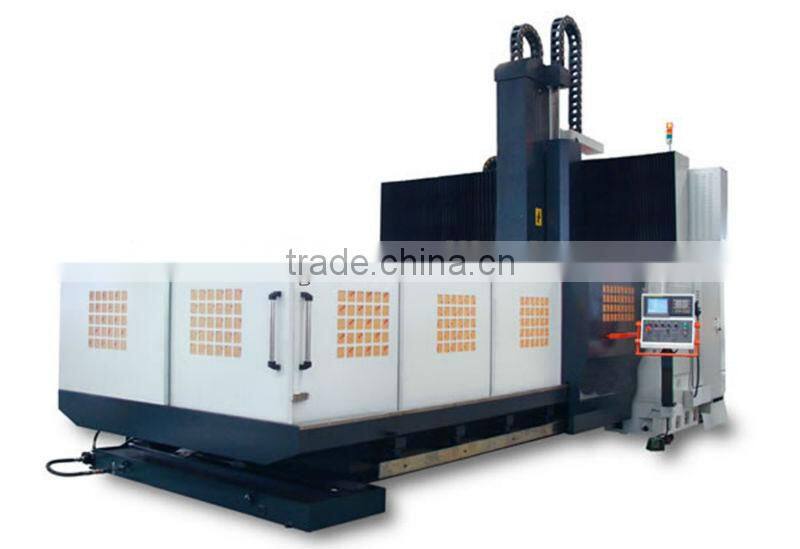

two.Pictures of gantry type cnc milling machine with price LM2013

Three.Production capacity

Company Brief Nantong Sunway Technology company is established in 2000year.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling machine,electrical discharge machine and so on.Our machine have been exported to Europe,America,Southeast Asia,Korea and many foreign countries,we also supply OEM service.
Assembly shop of cnc engraving and milling machine
Graphite engraving and milling machine(complete) which exported to Brazil DX7070 Angle to open the door, in order to hoist workpiece directly by customer High speed processing of graphite electrodes or electrode parts
Light-weight gantry type engraving and milling machine We can provide OEM service for customers, also can meet the requirements of customers’ custom machine by themselves. LM-1090, X,Y,Z travel: 1000×900×430 mm LM-1311, X,Y,Z travel: 1300×1100×430 mm LM-1613, X,Y,Z travel: 1600×1300×550 mm The spindle installed motorized spindle to became large engraving and milling machine,to repair the light of large molds, carved, save a lot of artificial polishing time.
Small CNC gantry type engraving and milling machine LM-1090, X,Y,Z travel:1000×900×430 mm LM-1212, X,Y,Z travel:1200×1200×700 mm LM-1612, X,Y,Z travel:1600×1200×700 mm Spindle BT50,15KW, instead of the Y axis direction to small disadvantage of VMC,especially suitable for square, large width mould, product processing, low prices, high precision, long service life.	LM-1612 with tool changer, with oil cooling for spindle
Electrical discharge machine which will be exported to SAMSUNG,Korea Our electrical discharge machine have exported to SAMSUNG (Korea), Brazil, Argentina, Mexico,Turkey and other countries .All machines runs well,they have not broken till now, we always trust”no maintenance service is the best service”.
Gantry machining center Using famous brand gantry machining center,is the key point to guarantee the precision and surface finishment of machining face.
Metal plate Our metal plate use laser cutting and international advanced welding technique,while supply elegant appearance for surface of machine.
Casting Our casting are made for resin sand,grade HT250,we are the sole casting factory which exported to DMG(German) in our domestic and meanwhile we are the supplier of Foxconn(supplier of Apple Inc) and supply 6000 sets casting to Foxconn.
Detection of assembling In strict accordance with German standard to do precision detection on our linear rail,ball screw,table surface, to guarantee the integral precision of machine.
Precision detection
Laser inspection equipment Owning the advanced laser inspection equipment,which is made in USA,are stable guarantees of improving the quality and precision of machines.
