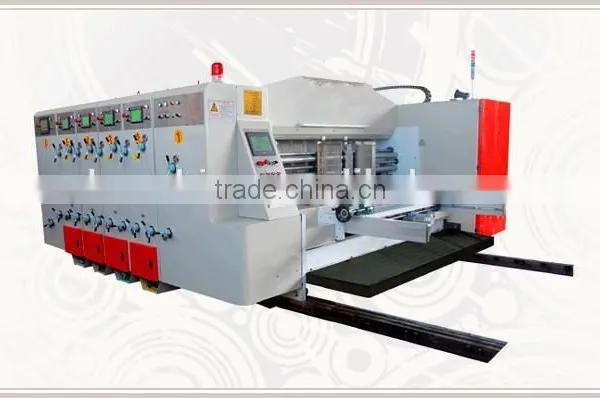

[RD-A910-2000-3] Corrugated Carton Automatic 3 Color Flexo Printing Slotting Machine

[RD-A910-2000-3] Corrugated Carton Automatic 3 Color Flexo Printing Slotting Machine thumbnail-1
[RD-A910-2000-3] Corrugated Carton Automatic 3 Color Flexo Printing Slotting Machine photo-1
US$ 40,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Pujiang Ruida Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port for Flexo printing sloting machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Letterpress
Place of Origin Zhejiang, China
Brand Name RuiDa
Model Number RD-A910-2000-3
Usage Paper Printer, Other, Paper Printer, Corrugated Cardboard Printer
Automatic Grade Automatic
Voltage 380V
Gross Power 25KW
Dimensions(L*W*H) 5100*2600*1900mm
Weight 22 Ts
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Flexo printing sloting machine
- Self-locking composition
- Factory price and reliable quality
- Easy operation
- CE

Corrugated carton automatic 3 color flexo printing slotting machine







[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine











Description:



  • Flexo printing sloting machine , is an integral part of the production of corrugated boxes, after carton processing equipment .
  • According to different color groups, printing slotting units have single color , two-color, three-color, four-color and other models.
  • Commonly used in printing the cartons of dairy, food, beverage, health products, electrical products.





Specifications:



S/N Parameter Unit Model
RD-A910-2000-3 RD-A910-2200-3 RD-A910-2400-3
1 Machine inner width mm 2000 2200 2400
2 Max. paper size mm 910*1800 910*2000 910*2200
3 Min. paper size mm 280*650 280*650 280*650
4 Max. printing size mm 810*1600 810*1800 810*2000
5 Carboard thickness mm 2~11 2~11 2~11
6 Printing plate thickness mm 6 6 6
7 Dia. of printing roller mm Φ290 Φ290 Φ290
8 Max. design speed pcs/min 160 160 160
9 Topping precision mm ±0.5 ±0.5 ±0.5
10 Slotting precision mm ±1.5 ±1.5 ±1.5
11 Dia. of die roller mm Φ245.5 Φ245.5 Φ245.5
12 Power kw 25 27 29
13 Weight T 22 23 24
14 Overall dimension(L*W*H) mm 5100*2600*1900 5100*2800*1900 5100*3000*1900



Features:

  • Flexo printing sloting machine with 3 color printing slotting die cutting .
  • How many printing colors of machine to choose by you , there are 5 colors available.
  • The flexo printing sloting machine is controlled by computerized system(CNC) and PLC, it's very convenient to control the printing units and adjust the die cutting phase. with the characteristics like order storage ,quick order changing and convenient operation.
  • Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing and die cutting phase zero reset and adjustment.
  • The machine adopts suction lead edge feeding with roller-type whole adsorption, which has high speed and precision.
  • All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
  • All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
  • Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
  • Different alarm ring will along with the machine launching and stopping.
  • The flexo printing sloting machine is launched by pressing the start button with two hands, which ensure the operator's safety.
  • Each unit equips with emergency stop button.
  • There have different color of LED light to indicate the machine situation of power on, standby, running, and abnormal.
  • Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
  • Equipped with automatic lubrication system.



Lead edge feeding unit:



[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine



  • Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
  • The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
  • The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
  • The side plate is electrical adjusted automatically while the backstop is adjusted manually.
  • Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
  • The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
  • The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
  • The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
  • The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
  • Automatic counter for recording the cardboard supply quantity to show the output.



Printing unit:



[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine

  • All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
  • The printing phase position is and horizontal movement controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing  mechanism.
  • Equipped with ink quantity monitoring system, the machine will alarm when out of ink, and stop feeding cardboard.
  • The printing plate of the flexo printing sloting machine is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
  • Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
  • Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
  • Phase clear memory and reset after printing plate cleaning.
  • The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
  • Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.



Slotting unit:



[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine



  • All the carton size, slotting phase position is set and adjusted automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
  • Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
  • Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
  • The slotting knives of the flexo printing sloting machine are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
  • Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
  • Punching hole device is optional.




[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine[RD-A910-2000-3] Corrugated carton automatic 3 color flexo printing slotting machine



Company information:



PuJiang RuiDa Industry & Trade Co,.Ltd is specialized in flexo printing sloting machine , having been designing, developing, manufacturing and marketing Carton Machinery for more than 10 years. Firstly we mainly sever china mainland customers, In order to adapt to world market development, now we do the exporting business directly. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

"Better Quality, Lower Cost, Preferential service" is the principle which we have been following.We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work hand in hand to create a resplendent future.





Our service:



1. Presale: product consultation and solution design can be provided.



2. Sale: spares parts can be provided at a certain discount.



3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.



If you have any other questions , pls feel free to contact me .



Looking forward to beginning our cooperation in the near future.
