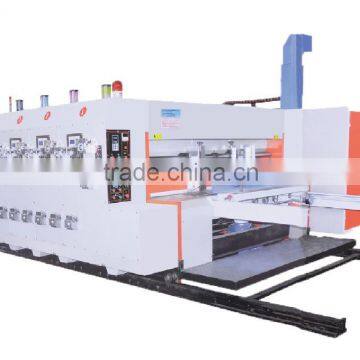

RD-B series of automatic high speed flexo printer slotter (die cutter ) machine
USD $40,000 - $100,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- TIANJIN PORT
You May Like
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Film, Foil |
Packaging Material: | Metal, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 23kw | Brand Name: | RUIDA |
Model Number: | RD-C910-2000-2 | Weight: | 20T | Dimension(L*W*H): | 3900*2800*1900mm |
Certification: | ce | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
- Box flexo printing die-cutting machine
- High quality and best service
- Competitive price
- Easy operation
Box flexo printing die-cutting machine
Specifications:
S/N | Parameter | Unit | Model | ||
RD-C910-2000-2 | RD-C910-2200-2 | RD-C910-2400-2 | |||
1 | Machine inner width | mm | 2000 | 2200 | 2400 |
2 | Max. paper size | mm | 910*1800 | 910*2000 | 910*2200 |
3 | Min. paper size | mm | 280*650 | 280*650 | 280*650 |
4 | Max. printing size | mm | 810*1600 | 810*1800 | 810*2000 |
5 | Carboard thickness | mm | 2~11 | 2~11 | 2~11 |
6 | Printing plate thickness | mm | 6 | 6 | 6 |
7 | Dia. of printing roller | mm | Φ290 | Φ290 | Φ290 |
8 | Max. design speed | pcs/min | 160 | 160 | 160 |
9 | Topping precision | mm | ±0.5 | ±0.5 | ±0.5 |
10 | Dia. of die cutting roller | mm | Φ245.5 | Φ245.5 | Φ245.5 |
11 | Power | kw | 23 | 25 | 27 |
12 | Weight | T | 18 | 19 | 20 |
13 | Overall dimension(L*W*H) | mm | 3900*2600*1900 | 3900*2800*1900 | 3900*3000*1900 |
Features:

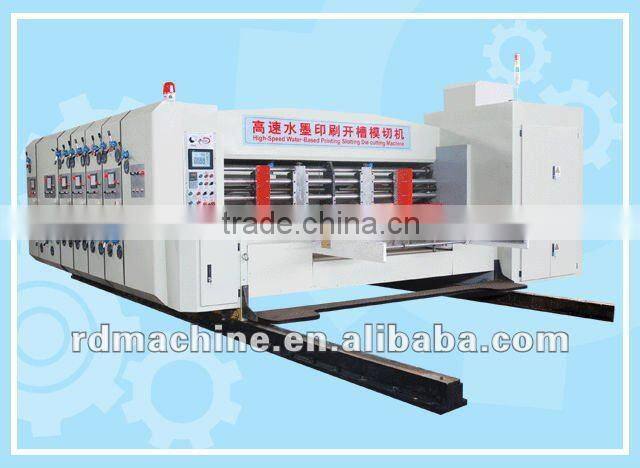

- Automatic high speed 2 color corrugated carton box flexo printing die-cutting machine.
- The machine is controlled by computerized system(CNC) and PLC, it's very convenient to control the printing units and adjust the die cutting phase. with the characteristics like order storage ,quick order changing and convenient operation.
- Equipped with digital touch screen to display the machine running situation and have the features of whole machine zero reset, preset function, printing and die cutting phase zero reset and adjustment.
- The machine adopts suction lead edge feeding with roller-type whole adsorption, which has high speed and precision.
- All the transmission gears use 45# chrome steel after high-frequency quenching and grinding in accordance with national standard.
- All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
- Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
- Different alarm ring will along with the machine launching and stopping.
- The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
- Each unit equips with emergency stop button.
- There have different color of LED light to indicate the machine situation of power on, standby, running, and abnormal.
- Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
- Equipped with automatic lubrication system.

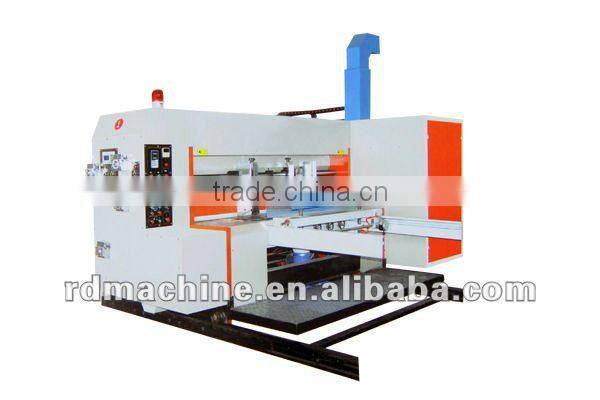

Lead edge feeding unit:
- Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
- The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
- The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
- The side plate is electrical adjusted automatically while the backstop is adjusted manually.
- Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
- The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
- The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
- The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
- The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
- Automatic counter for recording the cardboard supply quantity to show the output.

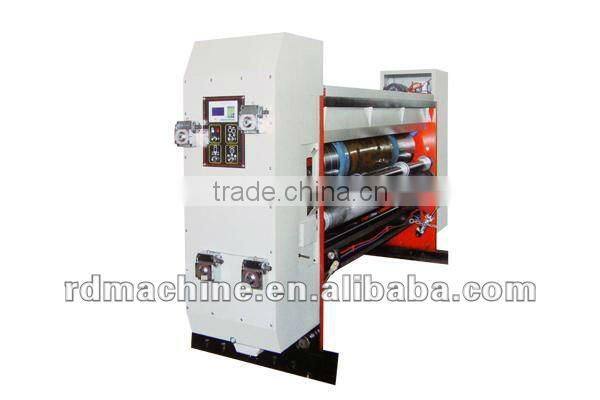

Printing unit:
- All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
- The printing phase position is horizontal movement controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
- Equipped with ink quantity monitoring system, the machine will alarm when out of ink, and stop feeding cardboard.
- The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate which controlled by the foot switch, it's very convenient for installation and dismounting of printing plate.
- Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
- Equipped with electromagnetic clutch break system to fix the printing phase, when separate the printing unit for adjusting the printing phase, the break system will prevent the gear move, keep the original position.
- Phase clear memory and reset after printing plate cleaning.
- The distributing rubber roll is covered by wear proof rubber, it's good at ink transmission.
- Steel anilox roll with the treatment of grinding, pressing overlapping curve and chrome plated.

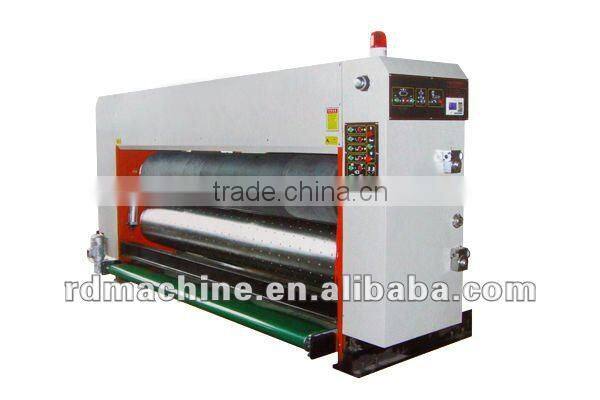

Die cutting unit:
- The die-cutting phase position is controlled automatically by touch screen with digital display, the phase position could be adjusted CW or CCW easily with 360 degree because of the equipping of PLC and planetary gearing mechanism.
- Die cutting roll lateral shifting adjustable by PLC and touch screen.
- The die cutting roller is made of the high quality steel with the treatment of chrome plated and balance adjustment.
- Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
- The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
- Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
- Imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million times.
- The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.
