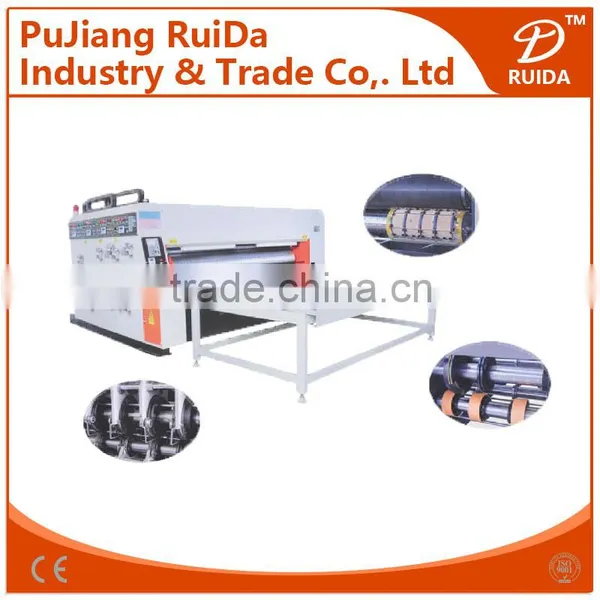

Help Center[RD-SB910-2000-2]Semi Auto Chain Feeding 2 Color Corrugated Carton Flexo Printing Slotting Machine
![[RD-SB910-2000-2]Semi Auto Chain Feeding 2 Color Corrugated Carton Flexo Printing Slotting Machine thumbnail-1](https://img13.fr-trading.com/2/1_317_27435_800_800.jpg.webp)
![[RD-SB910-2000-2]Semi Auto Chain Feeding 2 Color Corrugated Carton Flexo Printing Slotting Machine thumbnail-2](https://img13.fr-trading.com/2/1_790_27376_640_468.jpg.webp)
![[RD-SB910-2000-2]Semi Auto Chain Feeding 2 Color Corrugated Carton Flexo Printing Slotting Machine photo-1](https://img13.fr-trading.com/3/1_317_27435_800_800.jpg.webp)
![[RD-SB910-2000-2]Semi Auto Chain Feeding 2 Color Corrugated Carton Flexo Printing Slotting Machine photo-2](https://img13.fr-trading.com/3/1_790_27376_640_468.jpg.webp)
Related Products
-
RD-B Series of Automatic High Speed Flexo Printer Slotter (die Cutter ) MachineUS$ 40,000 - 100,000MOQ: 1 Set -
RD-B Corrugated Carton Automatic High Speed Flexo Printer Slotter MachineUS$ 40000.00 - 40000.00MOQ: 1 Set
-
RD-B Corrugated Cardboard Machinery Automatic High Speed 2 Colors Flexo Printer Slotter MachineUS$ 40000.00 - 40000.00MOQ: 1 Set
-
RD-B Corrugated Cardboard Machinery High Speed 3 Colors Flexo Printer Slotter MachineUS$ 40000.00 - 40000.00MOQ: 1 Set
-
RD-A Corrugated Cardboard Machinery Automatic High Speed 4 Colors Flexo Printer Slotter MachineUS$ 40000.00 - 40000.00MOQ: 1 Set
Specifications:
| S/N | Parameter | Unit | Model | |||
| RD-SB910-2000-2 | RD-SB1500-2600-2 | RD-SB1500-2800-2 | RD-SB1500-3000-2 | |||
| 1 | Machine inner width | mm | 2000 | 2600 | 2800 | 3000 |
| 2 | Max.paper size | mm | 910*1800 | 1500*2400 | 1500*2600 | 1500*2800 |
| 3 | Min.paper size | mm | 160*400 | 450*650 | 450*650 | 450*650 |
| 4 | Max.printing size | mm | 810*1600 | 1400*2200 | 1400*2400 | 1400*2600 |
| 5 | Carboard thikness | mm | 2~11 | 2~11 | 2~11 | 2~11 |
| 6 | Printing plate thikness | mm | 6 | 7.2 | 7.2 | 7.2 |
| 7 | Dia.of printing roller | mm | Φ290 | Φ475 | Φ475 | Φ475 |
| 8 | speed | pcs/min | 60 | 60 | 60 | 60 |
| 9 | Topping precision | mm | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| 10 | Slotting precision | mm | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| 12 | Total power | kw | 4 | 4 | 4 | 4 |
| 13 | Weight | T | 3 | 4 | 5 | 6 |
| 14 | Overall dimension(L*W*H) | mm | 3400*2600*1400 | 4300*3200*1900 | 4300*3400*1900 | 4300*3600*1900 |
Features:
- 2 color of semi-auto chain feeding corrugated carton flexo printing slotting machine.
- It's very convenient to control the printing slotting units, with the characteristics of order storage ,quick order changing and convenient operation.
- All the transmission gears use 40# chrome steel after high-frequency quenching and grinding in accordance with national standard.
- All the transmission rolls are made of high quality steel with the chrome plated and grinding surface.
- Motorized detachment and combination, pneumatic locking and loosening of each unit, along with alarm ring and light when the machine unit moving to improve the operation safety.
- Different alarm ring will along with the machine launching and stopping.
- The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
- Each unit equips with emergency stop button.
- Electrical components, transmission bearings and gears, pneumatic control components etc. are all in accordance with the national standard.
- Equipped with automatic lubrication system.
Chain feeding unit:
- Semi auto chain feeding, side plate is adjustable to adapt the different size of cardboard.
- Equipped with 5 feeding chains, and 3 feeding push plates for each chain.
- The chain rail is made of high strength engineering plastic, which is low noise, and long lift time.
- The heigh of the workbench is adjustable.
- Automatic counter for recording the cardboard supply quantity to show the output.
Printing unit:
- All the rolls and shafts are made of high quality steel, with the treatment of dynamic balance correction, grinding and chrome plated.
- The printing plate is hanged by the hanging plate device, the printing roll is able to clockwise rotate and counter clockwise rotate with 360 degree easily, it's very convenient for installation and dismounting of printing plate.
- Manual gap adjustment via worm reducer with graduated dial indication such as gap between rubber roll and anilox roll, gap between anilox roll and printing roll etc.
- Phase clear memory and reset after printing plate cleaning.
- The distributing rubber roll is covered by wear proof rubber; it's good at ink transmission.
- It's made of high quality of 40# chrome steel, with the treatment of hardening and tempering, grinding, electric carving for the curve line, and finally chrome plated.
- The spindle head is made with the process of centrifugal casting, and encapsulate to the anilox roll.
- The anilox roll in the first printing unit is equipped with 150 curve line in per unit surface in order to print large area color block, while the anilox roll in the second printing unit is equipped with 200 curve line in per unit surface in order to print small area color block.
- Self-suck ink device can keep the plate surface humid when the motor stop, which can control the anilox roller racing circulate ink and cleaning the anilox roller automatic.
Slotting unit:
- The slotting phase position could be manual adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
- Double slotting configuration, after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
- Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat, pressing wheel, trimming knife will moving precisely.
- The slotting knives are made of high quality alloy steel, with heat treatment and grinding which ensure a long life.
- Manual gap adjustment of prepressing wheel, pressing wheel, slotting knife seat.
- Punching hole device is optional.
1.Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds
of carton equipments for 30 years.(with export license)
2.Q: Where is your factory located? How can I visit here?
A: Our factory is located in No.71-1 Huiquan Road Pujiang County,
Zhejiang Province, China. It is about half hour from Yiwu International airport and 3 hours from Shanghai Pudong International Airport by car.
We can pick you up if you need, welcome to visit our factory.
3.Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard
production line, high speed printing machine, ordinary printing machine, single facer,
rotary die cutter and other corrugated cardboard production equipment.
4.Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based”
corporate purpose always meet users’ requirements as our sole purpose,
providing the products with excellent quality, professional technology.
To quality controlling from the very beginning to the very end .
1)All raw material we used are environmental-friendly
2)skillful workers care every details in handling the producing and packing process
3)Quality control department specially responsible for quality in each process.
5.Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia,
EU and other countries and throughout the country. Product quality and enterprise
reputation get the high praise at home and aboard.
6.Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading
