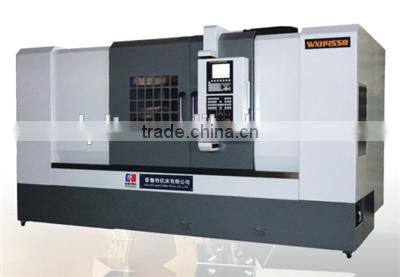

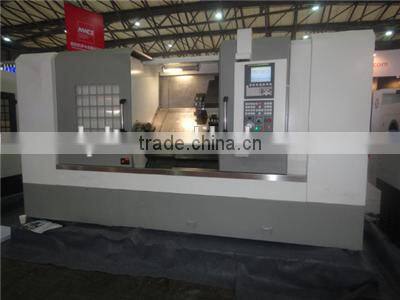

TCK700 106 mm Large Bore 12 Station Turre Slanting Bed CNC Turning Lathe Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	PULUTE	Model Number	TCK700
Voltage	380V	Rated Power	22 KW
Dimension(LWH)	3850x2300 x2250 mm	Weight	6000KG
Certification	CE, ISO9001, ISO14001	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

1. TCK700 106 mm large bore 12 station turre slanting bed CNC turning lathe machine specification

CNC slant bed lathe machine TCK700	specification
Max. swing over bed	700mm
Max. Turning diameter	650mm
Max. Turing diameter over turret	450mm
Max. Turning length	1000mm
Distance between two centers	1320mm
Hydraulic chuck	15"
Main motor power servo type	22kw
Spindle speed	2200rpm
Thru-hole diameter of spindle	106mm
Max. Diameter of the bar	90mm
x/z travel	350/1120mm
Turret	8 position hydrulic turret
Tools	4 tools gany type post
Hydraulic tail stock sleeve diameter	100 mm
Hydraulic tail stock sleeve travel	120 mm
Hydraulic tail stock travel	1250mm
Hydraulic tail stock sleeve taper	MT5#
Overrall dimention LWH	3850x2300 x2250 mm
N.W.	6000 kg

2. TCK700 106 mm large bore 12 station turre slanting bed CNC turning lathe machine features

Machine features

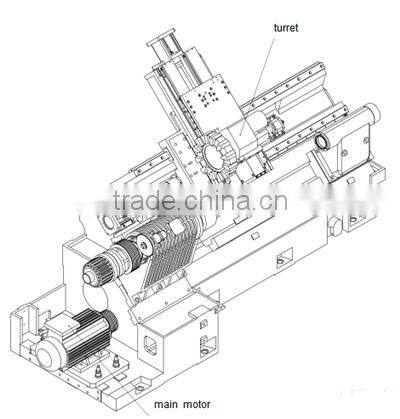

Slant bed structure improves machine whole rigidity and anti-shake ability very well.

The high quality gray cast iron improves moving and static rigidity greatly.

The sand core in stand house absorbs vibration very well.

Feeding system adopts servo motor, precision ball screw, high rigidity precision compound bearing

structure.

Those makes high accurate position and high transmission efficiency.

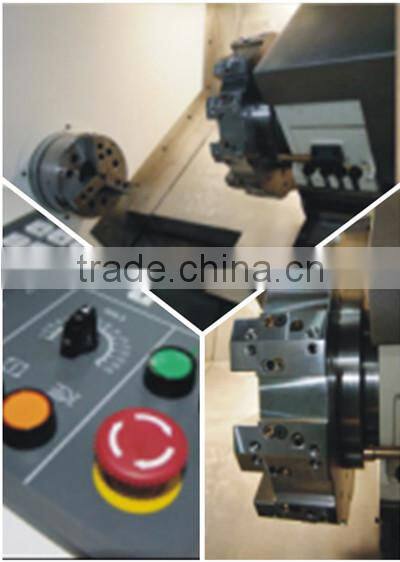

3. CNC slant bed lathe machineTCK700 parts pictures
