Movable column Gantry Machine Centers, Portable column Machine center
Moving column Gantry machine centers, Double column movable machine center
Double column machine center, Double column portable machine center
LongMen portable machine center,
Fixed Table moving column Gantry machine centers

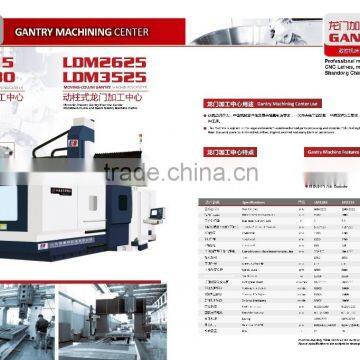

DLM2625 DLM3525 DLM4025
MOVING COLUMN GANTRY MACHINE CENTER
1. SPECIFICATIONS
|
DLM2625 |
DLM3525 |
DLM4025 |
Table size |
2100×2500 mm |
2500X3500 mm |
|
Distance between columns |
2900 mm |
2900 mm |
|
Max. loading on table |
35 MT |
38 MT |
|
T-slot (qty* width *spacing) |
7-28*300 mm |
7-28*300 mm |
|
X axis travel |
2500 mm |
2500 mm |
|
Y axis travel |
2400 mm |
3500 mm |
|
Z axis travel |
800 mm |
800 mm |
|
Spindle nose to table |
350-1150 mm |
350-1150 mm |
|
Spindle taper |
BT50 |
BT50 |
|
Outer dia. of spindle |
φ190 mm |
φ190 mm |
|
Spindle speed |
6000 rpm |
6000 rpm |
|
Spindle motor |
18.5/22 kw |
22/26 kw |
|
Cutting speed |
10-7500 mm/min |
10-7500 mm |
|
X axis rapid feed speed |
12000 mm/min |
12000 mm/min |
|
Y axis rapid feed speed |
10000 mm/min |
10000 mm/min |
|
Z axis rapid feed speed |
10000 mm/min |
10000 mm/min |
|
Position accuracy |
0.025/1000 mm |
0.025/1000 mm |
|
Repeatability accuracy |
0.01/1000 mm |
0.01/1000 mm |
|
Bearing |
40TAC72B |
40TAC72B |
|
Dimension (L*W*H) |
4500×4200×4000 mm |
5500×4200×4000 mm |
|
N.W. (M/T) |
25t |
28 |
|
2. MACHINE FEATURES
High strength boned/ coated sand casting |
Taiwan spindle |
Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japanese NSK bearing |
Germany R+W coupling |
Automatic lubrication system |
Chip conveyor optional |
24-hours tech support by cellphone, e-mail, fax, telephone or webchat, video.
We're ISO9001 ISO1400I certified professional manufacturer of CNC machines, CNC Lathes, slant bed types, flat bed types, Machines centers (vertical, gantry, horizontal) with fixed column or movable column, high quality at much competitive prices.
Any more info, pls feel free to contact us.
