Home > Products > Universal lathe > C0632A Bench Lathe Bv20l

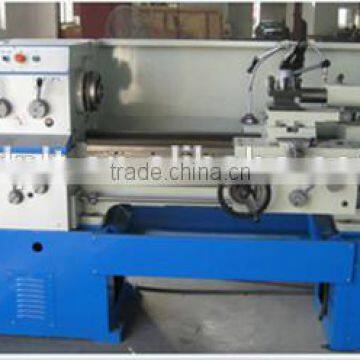

C0632A Bench Lathe Bv20l
- Shanghai Qingdao Ningbo
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 330mm | Place of Origin | Shandong, China | |
| Brand Name | PULUTE | Model Number | C0632A | |
| Voltage | 380v | Power(W) | 1.5 Kw | |
| Dimension(L*W*H) | 800*600*600mm | Weight | 400KG | |
| Certification | CE, ISO9001, ISO14001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
bench lathe bv20l
1. bench lathe bv20l C0632A features
1. Hardened and ground headstock gears
2. Gapped bedway
3. Adjustable headstock bearing
4. Oil-bath lubricated main drive and feed gear
5. Cast iron bed, double v-guide, hard and ground
6. Shift gear system to change feed direction
7. Interlocking feature prevents simutaneous advance of leadscrew and feedshaft
2. C0632A bench lathe bv20l specification
| bench lathe bv20l | C0632A |
| Swing over bed | 330mm |
| Swing over cross slide | 198mm |
| Swing in gap diameter | 476 mm |
| Swing in length | 210 mm |
| Center height | 166 mm |
| Spindle bore | 38 mm |
| Spindle nose | D1-4" |
| Threads imperial pitches | 36 Nos.8-112 T.P.I. |
| Threads metric pitches | 28 Nos.0.2-5mm pitch |
| main motor | 1.5KW 3PH or 1PH |
3. C0632A bench lathe bv20l standard accessories
1.the sleeve (Morse 5/3#),
2 fixed center: Morse 3#
3.3-jaw chuck
4.V type belt (A762 2 pieces)
5. Metric gear (m=1.25......8 pieces)
6. Kit and tools
7. The oilgun
4. C0632A bench lathe bv20l optional accessories
1.4-jaw chuck:200mm
2.face plate:320mm
3.steady rest
4.Follow rest
5. Back plate
6. An oil plate
7. The foot of the bed
8. The brake device
9. Cooling system
10. Quick change tool
11. Taper turning attachment
12 driving plate
13 chuck cover
