Home > Products > Uncoiler Machine > 10tons/5tons Hydraulic Decoiler

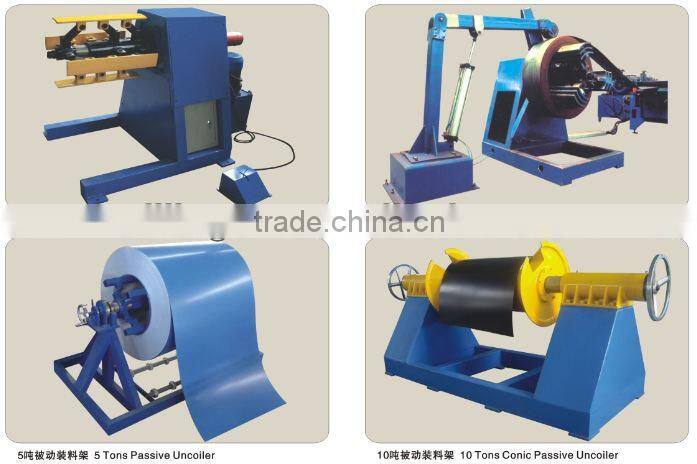

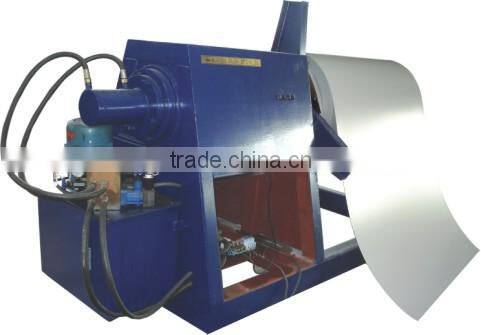

10tons/5tons Hydraulic Decoiler
- ningbo or shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Decoiler | |
| Tile Type | Other, decoiler | Use | Other, auxiliary equipment | |
| Production Capacity | 15m/min | Place of Origin | China | |
| Brand Name | willing | Power(W) | 5.5kw | |
| Voltage | as you want | Dimension(L*W*H) | 3m*1.8m*1.8m | |
| Weight | 5 tons | Certification | ce | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
10tons/5tons hydraulic decoiler has easiler instalation and less manpower.10tons/5tons hydraulic decoiler
Technical Parameters for Hydraulic Decoiler *
For lifting dolly
1) Capacity: see the type of uncoiler, max. 5 tons.
2) Speed: 6m/ min.
3) Lifting: max. 5500mm.
4) Moving: max. 3000mm.
For decoiler
1) Capacity: see the type of uncoiler, max. 5tons.
2) Inner dia: 508mm, and 610mm (gasket is required).
3) Width: max. 1500mm.
4) Center adjust: max. 250mm.
5) Equipped with optical sensor, laid before decoiler, if sheet is close to sensor, it will stop releasing coil sheet; if sheet leaves sensor, the decoiler will release coil sheet.
For hydraulic
1) Max. hydraulic pressure: 16 Mpa.
2) Motor power: 10.5 KW.
3) Air pressure: 0.9 Mpa.
Work Flow
Fix coil to the decoiler ---- fix coil sheet to lifting dolly ---- lifting dolly moves to decoiler --- lifting dolly lifts to the same center with decoiler ---- lifting dolly moves more closely to arms of decoiler---- expanse (coil moves to the decoiler) ---- lifting dolly returns ---- axis of decoiler rotate (coil sheet comes out).
