Galvanized Roofing Sheet Roll Forming Machine
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 20 - 25m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | WLRF | |
| Power(W) | 3-5.5kw | Voltage | 380V 3 phase 60Hz or at buyer's requirement, 380V 3 phase 60Hz or at buyer's requirement | |
| Dimension(L*W*H) | 1.5*1.4*8 | Weight | about 7000Kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

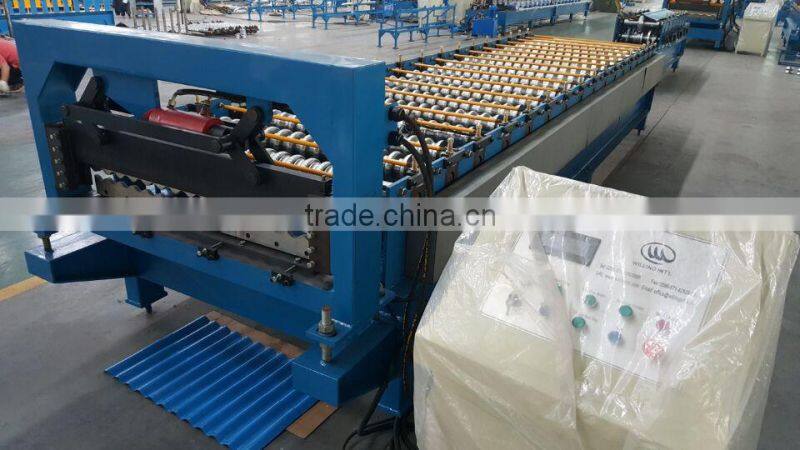

Galvanized roofing sheet roll forming machine

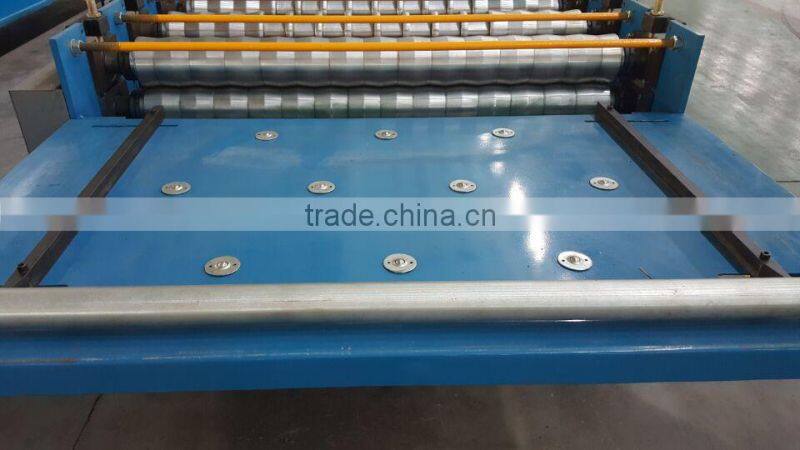

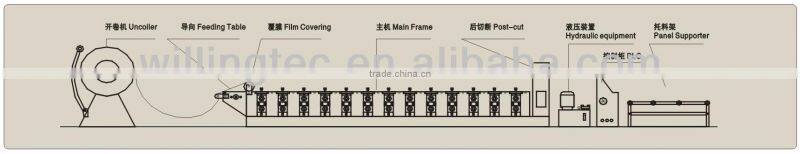

Galvanized roofing sheet roll forming machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system,
post-cutting equipment,hydraulic station, controlling system, supporter table.
We can design the machine as your requirement.
Working Flow
Decoiling the sheet------Sheet guiding------Roll forming------Pressing the panel------Measure length------Cutting the panel------Panels to the supporter

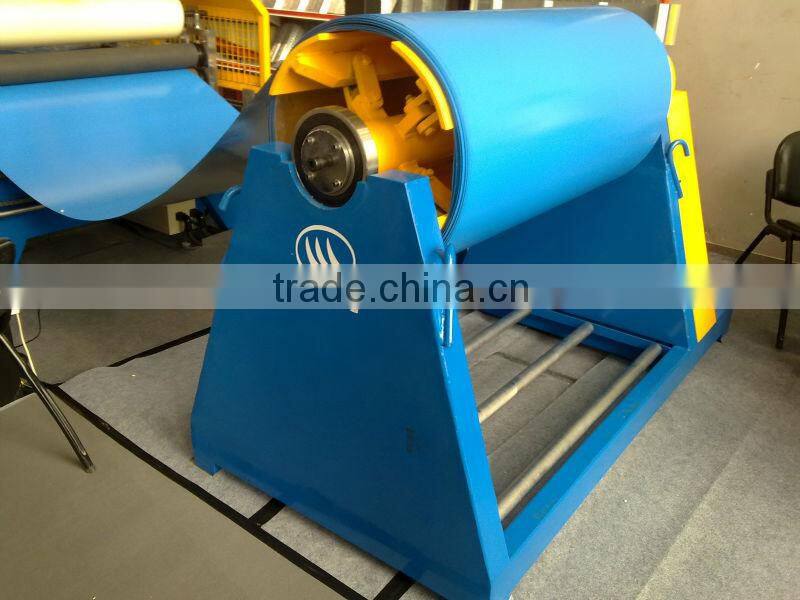

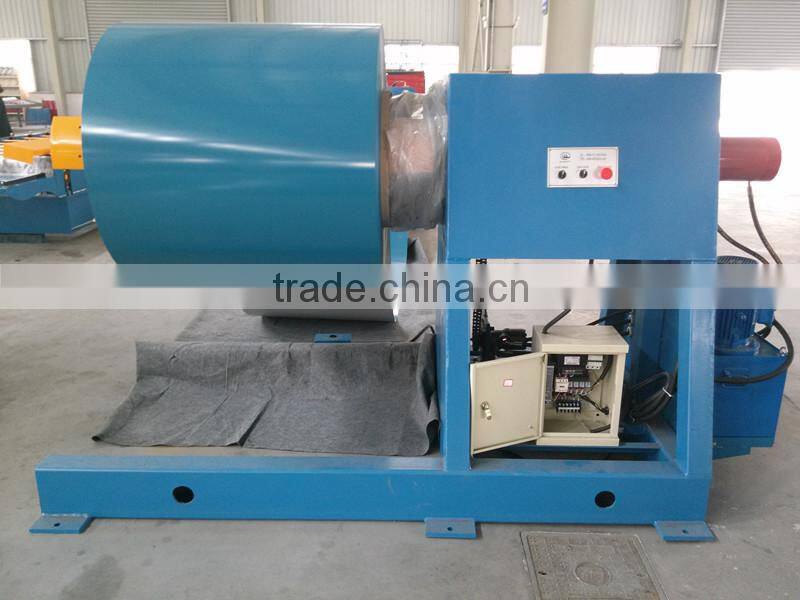

Optional Uncoiler

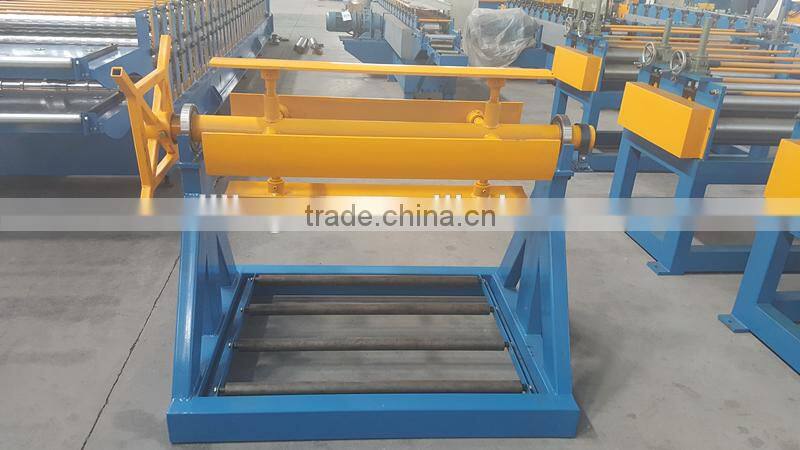

5 T manual uncoier
5T electric uncoiler
5T hydraulic uncoiler
Technical parameters:
1) Material spec: colored steel sheet; galvanized steel sheet
2) Thickness of coil sheet: 0.2 - 0.7 mm
3) Main motor power: 4~5.5KW
4) Forming speed: 8-12m/min
5) Hydraulic station power: 3KW
6) Quantity of stands: about 17 groups
7) Hydraulic pressure: 10 - 12MPa
8) Controlling system: PLC
9) Index error of length: 10m±2mm
10) Total weight: about 1,000kg
11) Voltage: 380V 3 phase 60Hz or at buyer's requirement
Material of main equipment

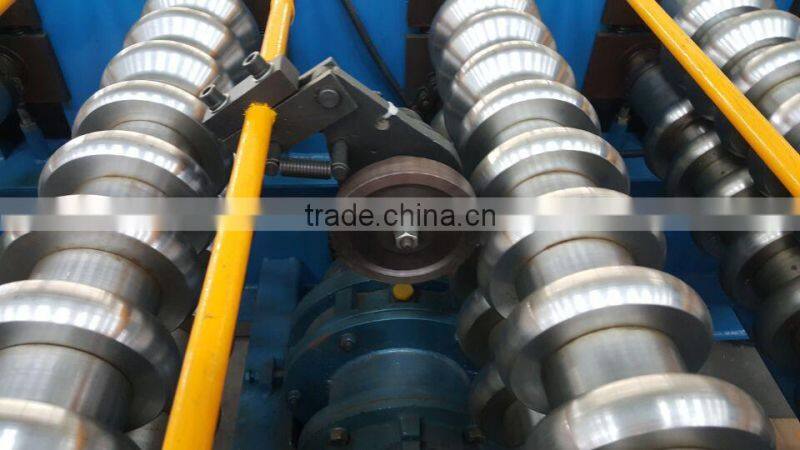

1) Roller material: | high grade no. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm |
2) Active shaft material: | high grade No.45 carbon wrought steel at diameter 75mm |
3) Cutter blade: | Cr12 mould steel with quenched treatment |
4) Electric elements: | control system with PLC model S7-200, Siemens transducer with ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time |
5) Oil tank | model of hydraulic system: CB-E310 |
Container packing of the line suitable for overseas shipping.
Our company,Zhejiang Willing International Co.,Ltd is a professional supplier in the field of steel structure construction, especially good at making Forming Machine.
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.
2), Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3), Q: How does your factory do regarding quality control?
A: Quality is priority. WILLIN People always attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before
it's packed for shipment.
4), Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
5), Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold
supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any
complaint from our customers.
We are willing to service for you!
