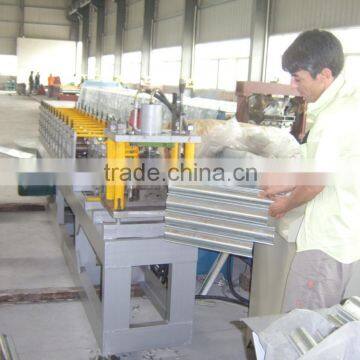

Fully Automatic Cold Forming Roll Shutter Door Machine

working flow:

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Rectifying the straightness ---

--- Measure length --- Cutting the panel --- panels to the supporter (option: automatic stacker).

uncoiler

Capability: 1.5Ton

Bound of expand &fight: 450mm—600mm

Way of feeding: manual

Automatic Tracking Cutter

 Cutting type: hydraulic cutting

 Cutting after forming: Cut the sheet after roll forming to required length

 Material of blade: CR12with heat treatment

 Motor power: 4kw

 Length measuring: Automatic length measuring

 Use imported high grade alloy blade, high quality & precision cutting

Roll forming main machine

working speed: 8m—15m/min (exclude cutting)

roll station: 14stations

material of roller: 45# forge steel, polished and coated with chrome

material of main shaft: 45# forge steel and quenched hardness 58-62 diameter roller: 60mm

main power: 3kw

forming thickness: 0.5mm—1.0mm

Transmission: chain

structure of frame: H beam steel plate

PLC

PLC: Panasonic,JAPAN
Voltage: 380 V, 50 Hz, 3Phase
Automatic length measurement:
Automatic quantity measurement
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achievedLength inaccuracy can be amended easily.

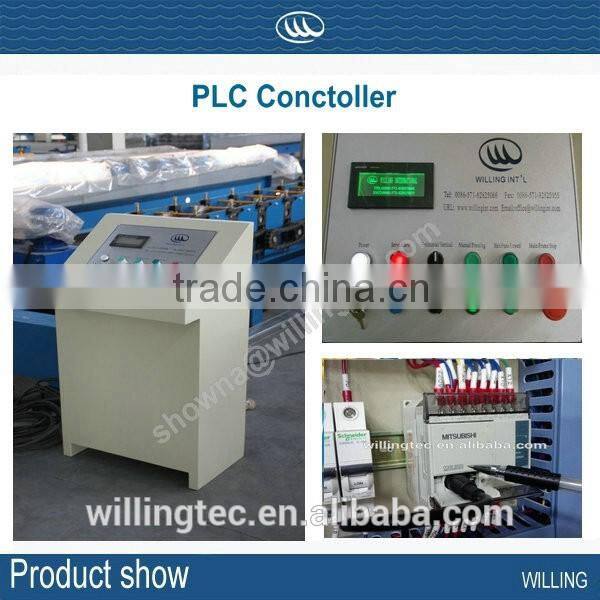

Control panel: touch screen
Unit of length: millimeter (switched on the control panel)

1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, maintenance-free.

3. We can make and design all kinds of tile forming machine according to customer's request.
