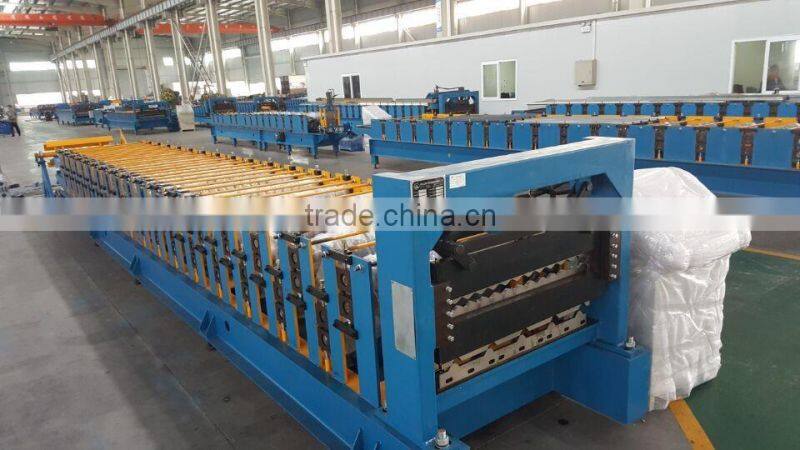

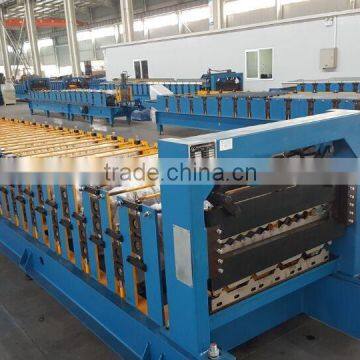

Help CenterDouble Layer Roofing/wall Panel Roll Forming Machine
Related Products
-
Good Quality Favorable Price Roof&wall Roll Forming MachineUS$ 20,000 - 23,000MOQ: 1 Set -
Steel Tile Type and Roof Use Steel Profile Roll Forming MachineUS$ 23,000 - 28,000MOQ: 1 Set
-
Floor Deck Aluminium Cold Metal Automatic Profile Rolling MachineUS$ 38,000 - 45,000MOQ: 1 Set
-
Trapezoidal Decking Roof Sheet Roll Forming MachineUS$ 38,000 - 45,000MOQ: 1 Set
-
Floor Panel Roll Forming MachineUS$ 38,000 - 45,000MOQ: 1 Set
Model
WLDL
Material
Type
Pre-paited steel sheet
Thickness
0.2-0.7 mm
Yield stress
230-550 Mpa
Max.Forming speed
8-12 m/min
Roller material
45#Steel with chrome treatment
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure
12 Mpa
Hydraulic station motor power
5.5 KW
Main motor power
7.5KW
Total power
13 KW
Total weight
About 10000 Kg
Index error of length
10m±2mm
Voltage
380V 3 phase 60Hz or at buyer's requirement
5 tons manual un-coiler 1
Pre-cutting device (manual)-optional 1
Guiding equipment 1
Film covring equipment 1
Roll forming equipment 1
Pressing equipment 1
Post-cut equipment 1
Hdraulic station 1
PLC control panel 1
Support tables 2
We are a professional manufacturer and exporter of roll forming machineries and products. The main items: steel roll forming machines, folding & bending machines as well as its auxiliary equipment, roofing tile sheets, corrugated steel sheets, decking sheets, sandwich panels, purlins, H beams, galvanized steel coils, pre-painted steel coils, construction ... View detail
View this Supplier's Website
Main Markets |
Main Product(s) |
Total Revenue (%) |
South America |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine |
11.98 |
Eastern Europe |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
11.27 |
Southeast Asia |
Roofing Wall Machine, Purlin Machine, Decoiler, Stud and Truck Machine |
19.12 |
Africa |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
15.12 |
Oceania |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
5.99 |
Mid East |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
13.12 |
Central America |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
10.27 |
Southern Europe |
Roofing Wall Machine, Decoiler |
1.00 |
South Asia |
Roofing Wall Machine, Purlin Machine, Decoiler, Floor Decking Machine, Stud and Truck Machine |
12.13 |
1. Professional |
We have specialized in roll forming machine since 2004. 10 years' rich experience, keep improving our quality. |
2. Low price |
A.The low labor cost. B. Complete supporting industries, we can save your money from every part. C. Convenient transportation. |
3. Fully automatic, easy operation |
Our roll forming machine is equipped with PLC control to ensure high accuracy and easy operation. You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. Easy operation, steady performance. |
4. OEM / ODM |
OEM / ODM, customers’ design, logo are accepted. Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
