GI PPGI Steel Sheet Steel Coil Embossing Machine Manfacture

FOB Price

US$ 21,000 - 28,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Packaging Type	Other
Packaging Material	Metal, Paper, Wood, Other	Automatic Grade	Automatic
Driven Type	Hydraulic	Voltage	380V
Power	5.5KW	Place of Origin	Zhejiang, China
Brand Name	willing	Model Number	willing
Dimension(LWH)	200015001260mm	Weight	3500kg
Certification	CE ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Metal Embossing machine

Technical parameters:

Material Spec: galvanized or pre-painted steel coil at strength 550Mpa
Thickness: 0.30-1.00mm（Or customer require)
Coil width: 1200mm（Or customer require)
Pattern: As customer’s sample
Working Speed:15-20m/min. adjustable
Power Requirement: main motor power 7.5Kw
Voltage: 380V/3phase/60HZ
Embossing roller material: 40Cr
Embossing roller diameter: 280mm
Pressing roller material: #45 steel
Pressing roller diameter: 300mm
Run direction: both direction
Machine dimension: about 1700*1600*1600mm
Total weight: about 4500kg

Work flow
Fix coil to the uncoiler→fix coil sheet to the moving dolly→moving doly move to the uncoiler→
Moving dolly lift to the same center with uncoiler→moving dolly move more closely to uncoiler arms of uncoiler→expanse(coil move to the uncoiler) →moving dolly return→axis of uncoiler rotate(coil sheet comes out)

Detailed Images

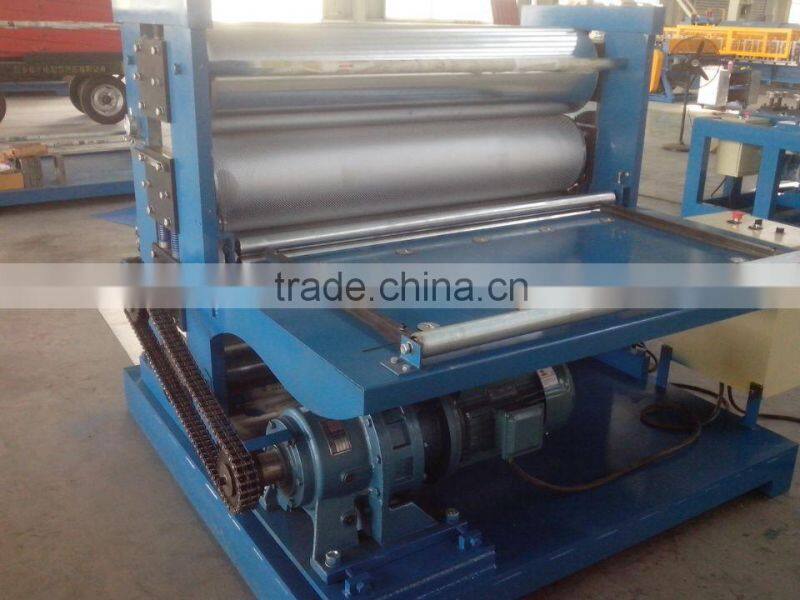

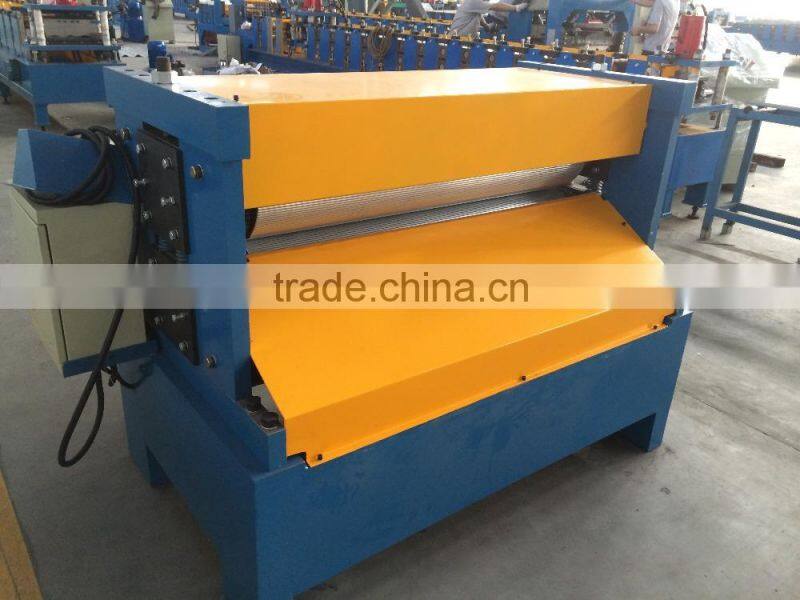

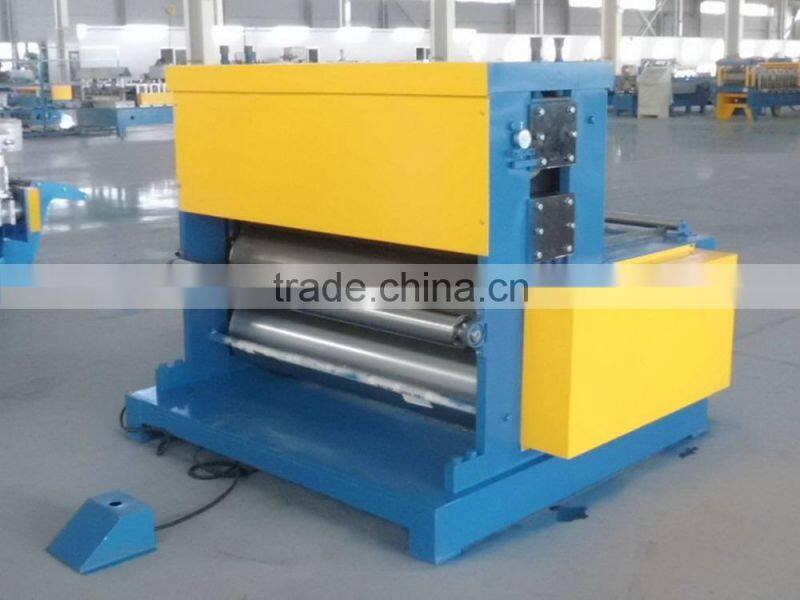

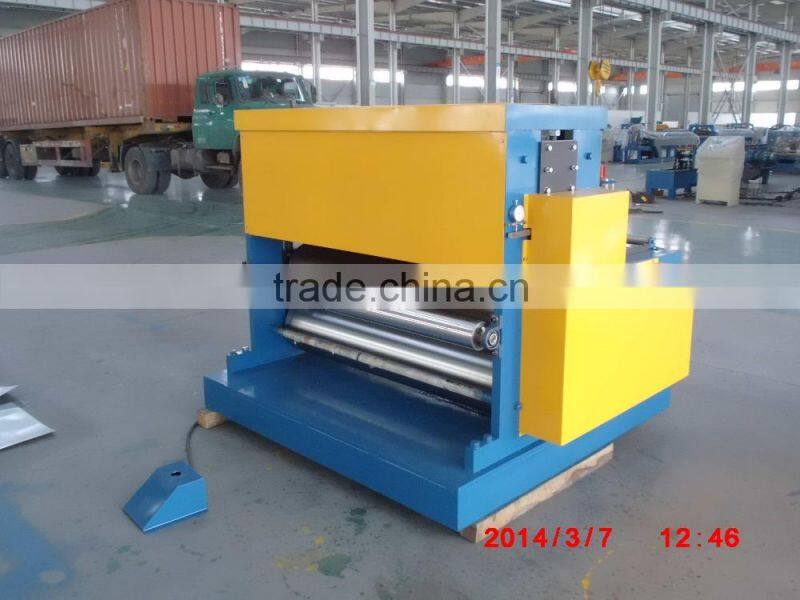

out side

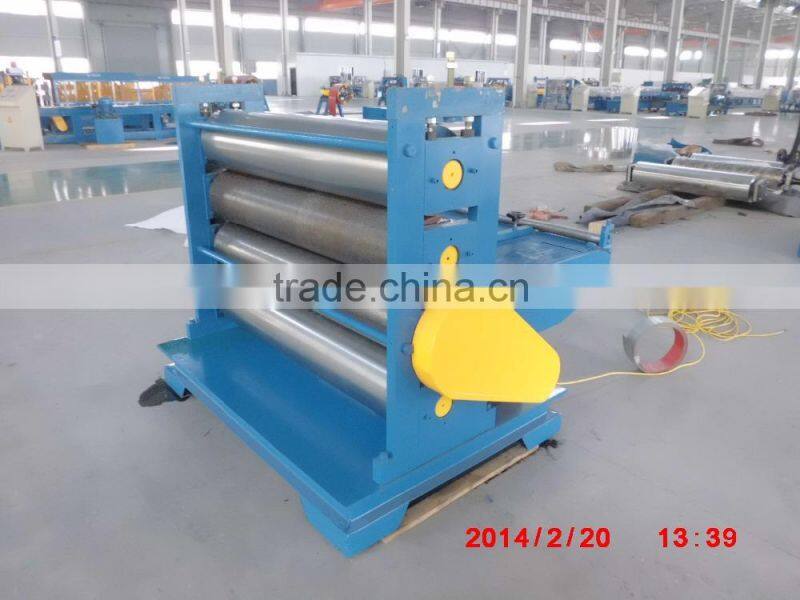

inside

Packing & Delivery

Any demand connect me!
