Hot Sale! 100w 200w 300w 12v/24v Vertical Wind Turbine

FOB Price

US$ 150 - 350 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Naier
Model Number	R-300W		Type	Wind Power Generator

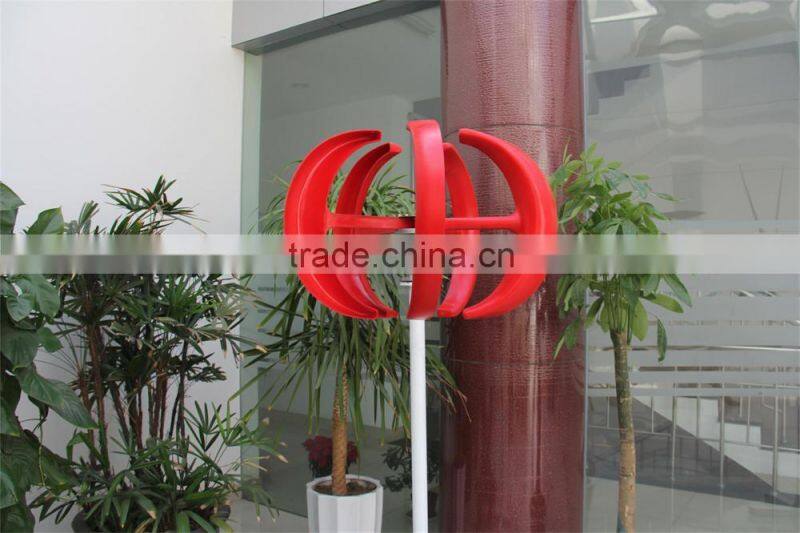

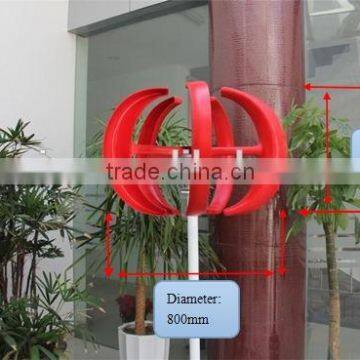

100w 200w 300w 12v/24v veritcal wind turbine pictures:

100w 200w 300w 12v/24v veritcal wind turbine features:

There are many advantages of vertical axis wind turbines (VAWTs):

VAWTs are not affected by the direction of the wind, which is useful in areas where the wind changes direction frequently and quickly. Unlike traditional horizontal axis wind turbines, a yaw mechanism is not needed to turn the wind turbine towards the wind.
Because of this, VAWTs outperform horizontal axis turbines in areas where a tall tower isn't feasible
VAWTs are better able to harvest turbulent air flow found around buildings and other structures
VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output
Simple to install and maintain
Quiet operation
Pleasant appearance

100w 200w 300w 12v/24v veritcal wind turbine technical data:

Rated power	100w	200w	300w
Maximum power	130w	230w	330w
Rated voltage	12/24v	12/24v	12/24v
Start-up wind speed	1.5/s	1.5m/s	1.5m/s
Rated wind speed	11m/s	11.5m/s	13m/s
Survival wind speed	50m/s	50m/s	50m/s
Top net weight	15kg	16kg	17kg
Packaging size	64x43x32cm
Wheel diameter	0.8m	0.8m	0.8m
wheel height	0.6m	0.6m	0.6m
Number of blades	5
Blades material	reinforced glass fiber
Generator	three phase ac permanent magnet generator
Magnet	NdFeB
Generator case	aluminum alloy
Control system	electronic magnet
Speed regulation	auto windward
Working temperature	-40-80℃
