Product Introduction

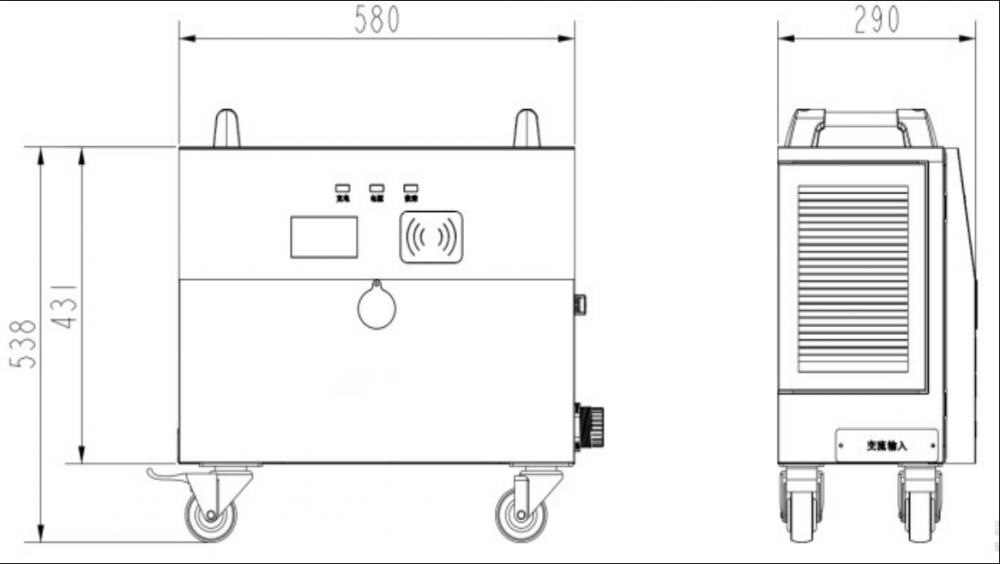

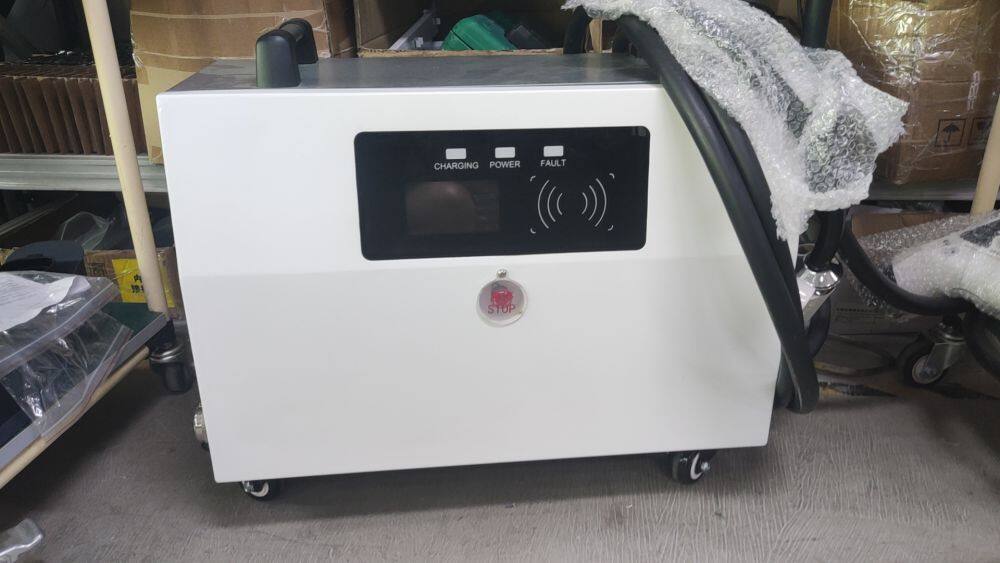

The 20KW DC charger is used for electric vehicle’s fast charging, composed of a 4.3-inch touch screen, 1 CCS2 charging gun and one 20KW charging module. It’s easy for operation by RFID card. The RFID card is an function to start and stop the charging so as to prevent the theft of electricity by others. The LED indicator on the front panel helps you understand what is happening with the charger by indicating different colors. The charger design is highly integrated and compact, with protection grade up to IP54, the excellent capacity of water and rust proof, assuring the safe outdoor operation and maintenance. Designed according to Electric Vehicle Charging System Standard EN/IEC 61851-1-2019 and EN/IEC 61851-23:2014.
Performance:
1) LED Indicator: Different light color indicate different working status of the charger.
2) LCD Screen: Real-time display the charger status and charging data.
3) Emergency Stop Button: In case of emergent issues happen, press the button to cut off charging output for safety.
.haracteristics:
1) Dust & Water Proof: IP54 protection grade, workable under severe conditions, no need of extra shelter.
2) The charger is highly integrated and compact.
3) All Direction Protection: Protections from over voltage, under voltage, over load, reverse connection, short circuit, current leakage and over temperature to ensure the product working safely and avoid accidents effectively.
4) Strong compatibility: compatible with most European standard electric vehicles on the market.6
Working Environment
1) Altitude: ≤2000 meters
2) Temperature: -30℃~50℃
3) Humidity: 5%~95%
4) Indoor/Outdoor use
5) Fan cooling for ventilation
6) Keep the charger away from flammable or explosive materials.
CLED Indicator
There are 3 LED indicators on the charger interface, which are “Power”,“Alarm”,“Charge ”
| State | Description | LED Status |
| Standby | Power-on, but no gun plug-in or Gun plugin, but not start chargingyet | Power:Green light normally on |
| Gun in charging | Gun plug-in, and start charging | Charge :Yellow light normally on |
| Fault | Error happens | Alarm: red light normally on |
Installation Notice
• Electrical product should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by the manufacturer for any consequences arising out of the installation of this product.
• A qualified person is one who has skills and knowledge related to the construction, installation and operation of electrical product and who has received safety training to recognize and avoid the hazards involved.
• All applicable local, regional, and national regulations must be respected when installing, repairing, and maintaining this product
