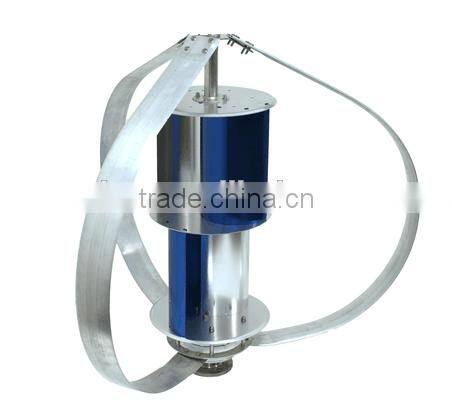

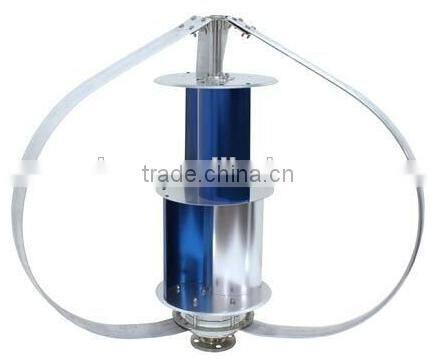

400w vertical 12v 24v new type wind generator pictures:
400w vertical 12v 24v new type wind generator techinical data:
Model | NE-400Q4 |
generator power | 400w |
Wheel diameter | 1.38m |
turbine height | 1m |
Blades material | Casting aluminum alloy |
Number of blades | 7 |
Rated wind speed | 11m/s |
Start-up wind turbine | 1.5m/s |
Survival wind turbine | 45m/s |
Output voltage | 12/24V |
Net Weight | 25.5kg |
Generator type | Outer Rotor PMG |
Control system | Electromagnet |
Speed regulation | Automatically adjust windward direction |
Lubrication way | Lubrication grease |
Working temperature | From -40℃ to 80℃ |
400w vertical 12v 24v new type wind generator Features:
1,VAWTs are better able to harvest turbulent air flow found around buildings and other structures
2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output
3,Simple to install and maintain

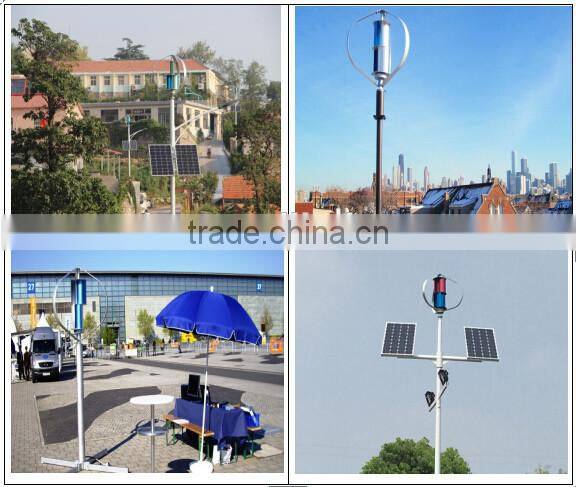

Projects for 400w vertical 12v 24v new type wind generator:

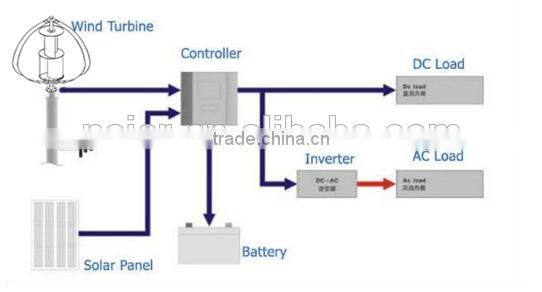

System showing for 400w vertical 12v 24v new type wind generator :

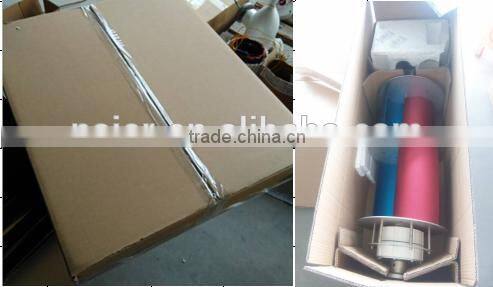

Package for 400w vertical 12v 24v new type wind generator:
Packaging dimension: 107*40*40cm, 105*66*13cm
Certification:
Contact:
