100w wind turbine pic: 3 or 5 blades are for your choice

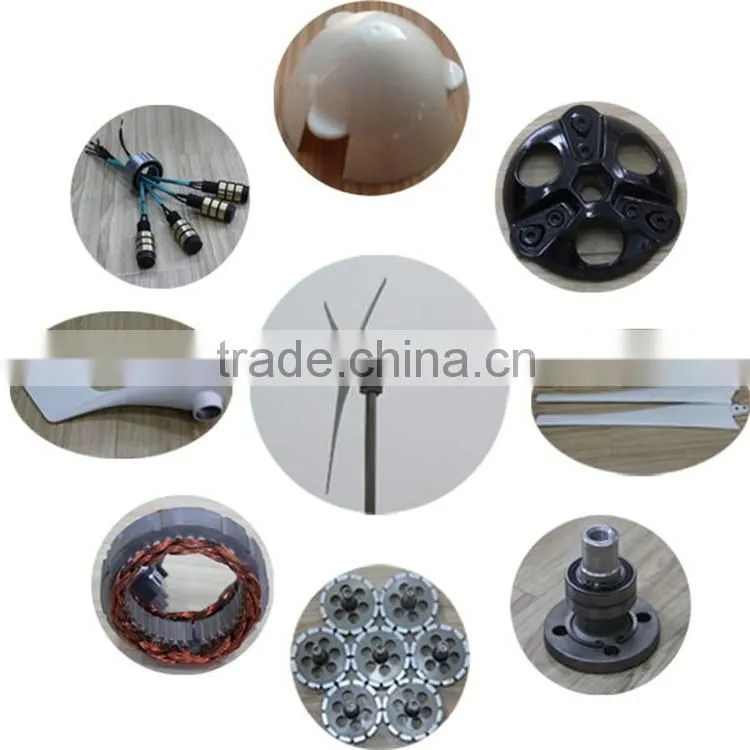

100w wind turbine details:

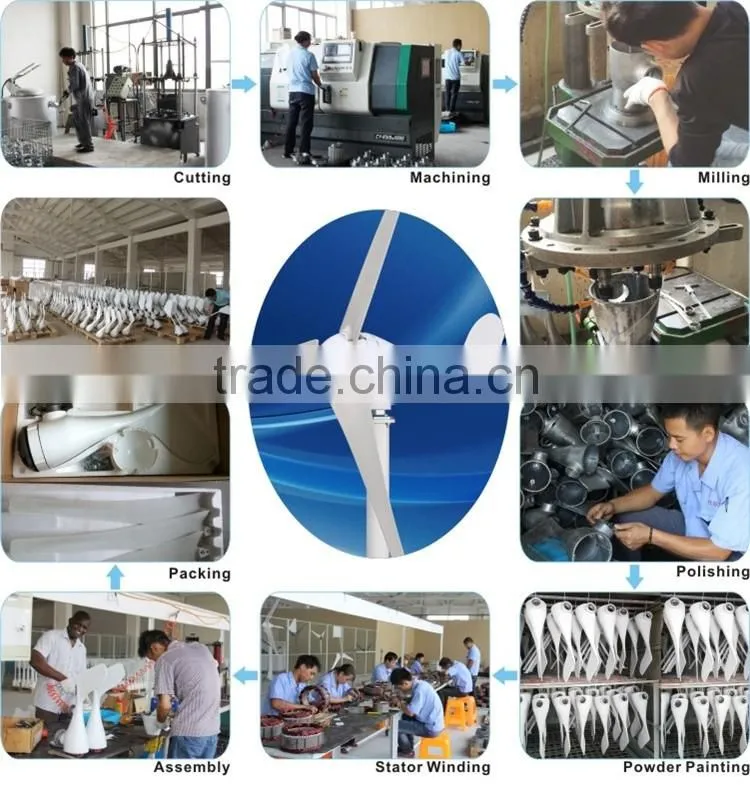

100w wind turbine assemble Line:
100w wind turbine parameters:
odel |
NE-100S |
Rated power |
100W |
Maximum power |
130W |
Rated voltage |
12/24V |
Start-up wind speed |
2.0m/s |
Rated wind speed |
10m/s |
Survival wind speed |
65m/s |
Top net weight |
6.6kg |
Wheel diameter |
1.2m |
Number of blades |
3/5 |
Blades material |
Nylon fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Automatically adjust windward direction |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001, ISO 9001, TUV |
100w wind turbine features:
1.Low start up speed, 3 or 5 blades optional for different wind speed areas,high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers’ specific needs

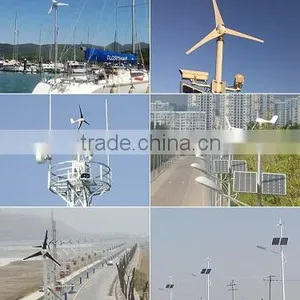

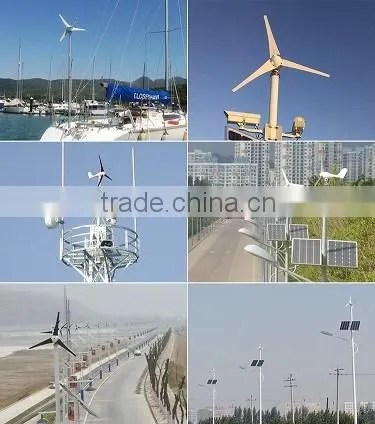

100w wind turbine projects:
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and
very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more
than 5m/s then you can use it .
3. Q: Which model wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .
Any other questions ,please feel free to contact us .
