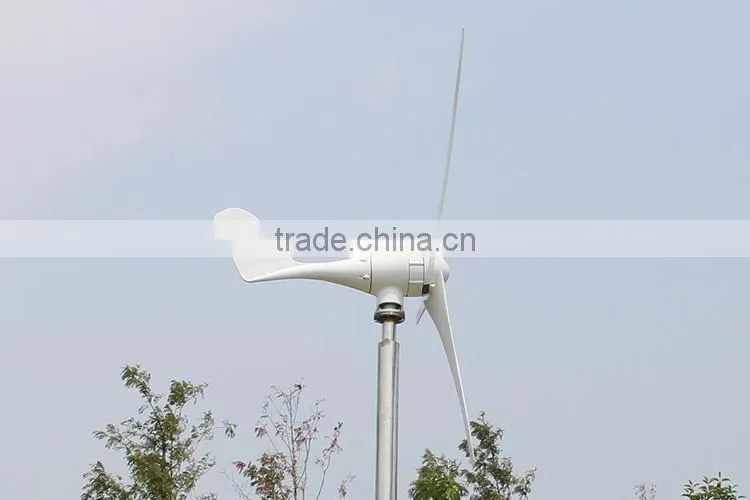

500w 12v 24v 48v Small Wind Mill for Home
500w 12v 24v 48v small wind mill for home
Details of 500w 12v 24v 48v small wind mill for home
Technical date of 500w 600w wind mill for home use
Model |
NE-500M2 |
NE-600M2 |
Rated power |
500W |
600W |
Maximum power |
560W |
680W |
Rated voltage |
12/24V |
12/24V |
Start-up wind speed |
2.5m/s |
2.5m/s |
Rated wind speed |
10m/s |
10m/s |
Survival wind speed |
55m/s |
55m/s |
Top net weight |
15.2kg |
16kg |
Wheel diameter |
1.75m |
1.8m |
Number of blades |
3 |
|
Blades material |
Nylon fiber |
|
Generator type |
Three phase permanent magnet AC synchronous generator |
|
Magnet material |
NdFeB |
|
Generator case |
Casting aluminum alloy+powder coating |
|
Control system |
Electromagnet/wind wheel yaw |
|
Speed regulation |
Automatically adjust windward direction |
|
Working temperature |
-40°C - 80°C |
|
Design life |
20 y |
|
Certificates |
CE, ISO14001,ISO 9001, TUV |
|
Packing way |
Dimension: 93x37x26cm, GW:16.5kg |
|

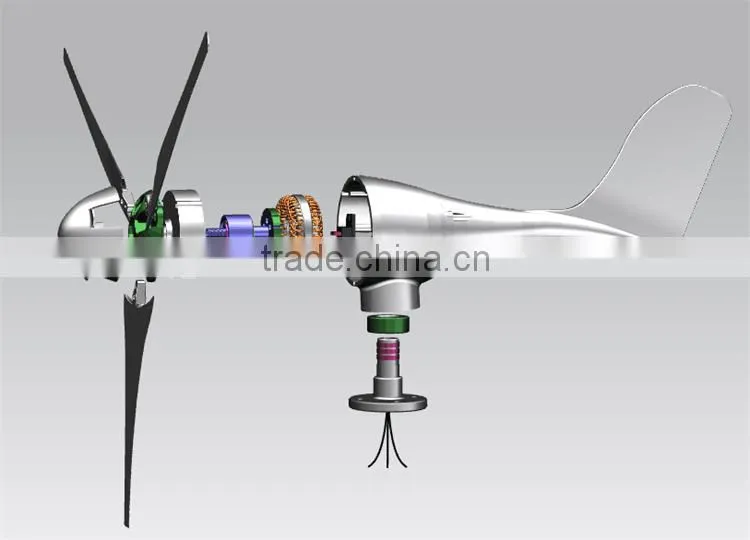

Three-dimensional-drawing of M2 model wind turbine generator

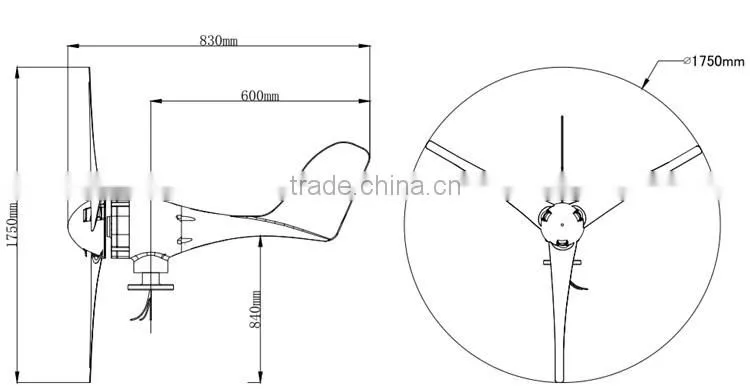

Diamension

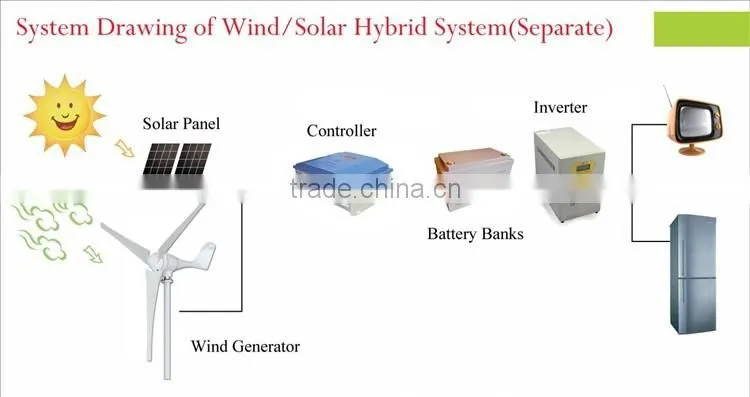

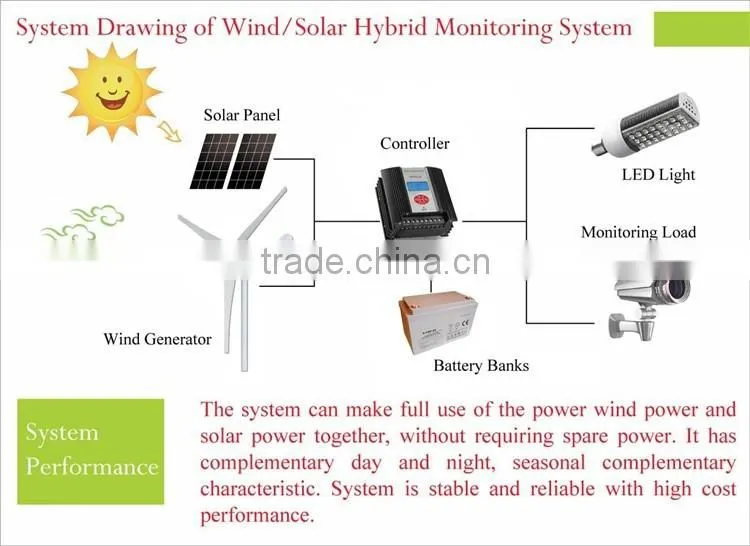

Kindly note: If you need the whole system as below: contact me for more information please.
Contact us for more information

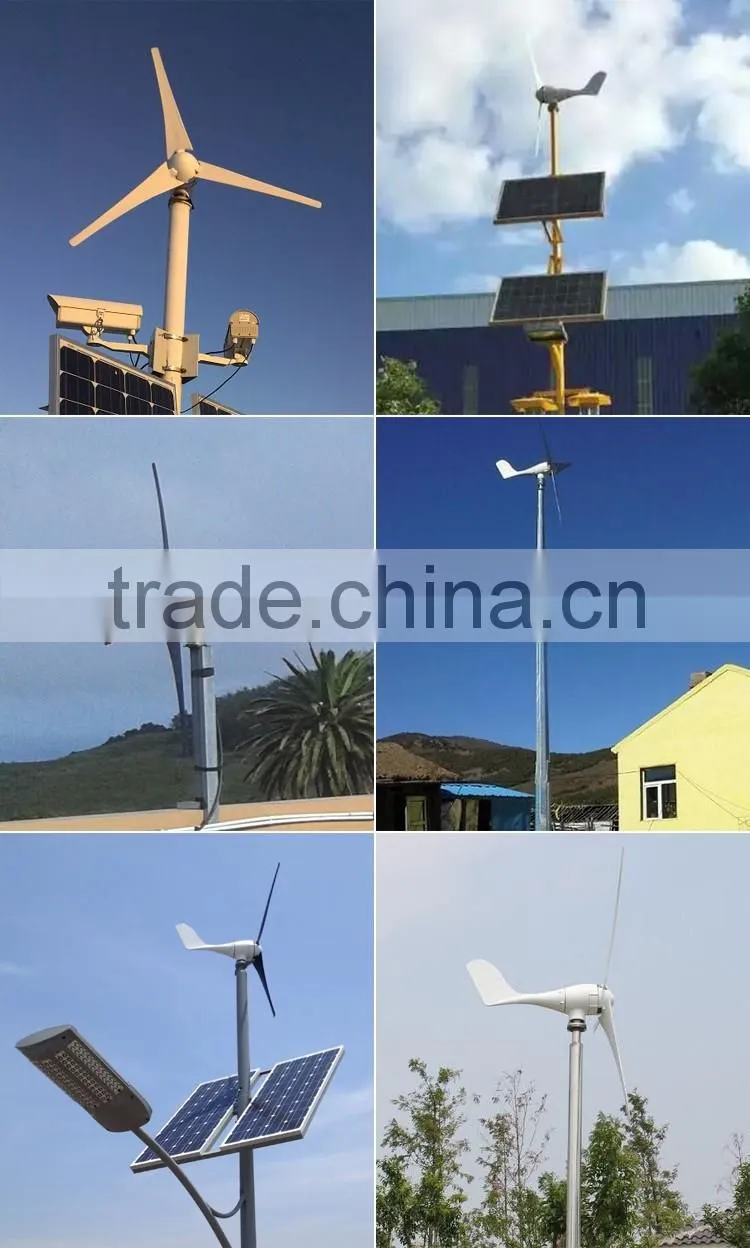

Project Examples of 500w 12v 24v 48v small wind mill for home
