1000w 48v Alternative Wind Generator

Name: 1000w 48v Alternative Wind Generator
Brand: Naier
SKU: 113306635

US$ 500 - 777 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Naier

Model Number:

NE-1000

Jiangsu Naier Wind Power Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Naier

Model Number NE-1000

Type Wind Power Generator

Features

1.Casting aluminum alloy body, compact, little vibration

2.Excelent output, 900w at 8m/s

3.Easy installation, tube or flange connection optional

4.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which

enhance the wind energy utilization and annual output.

5.Tail adopts mechanical yaw technique, making it survive storm and run safely

6.Patented permanent magnet ac generator with special stator,effectively reduce torque, well

match the wind wheel and generator, and ensure the performance of whole system.

7.Controller,inverter can be matched according to customers’ specific needs

1kw wind turbine project picture

Used in Russia in Aug, 2013

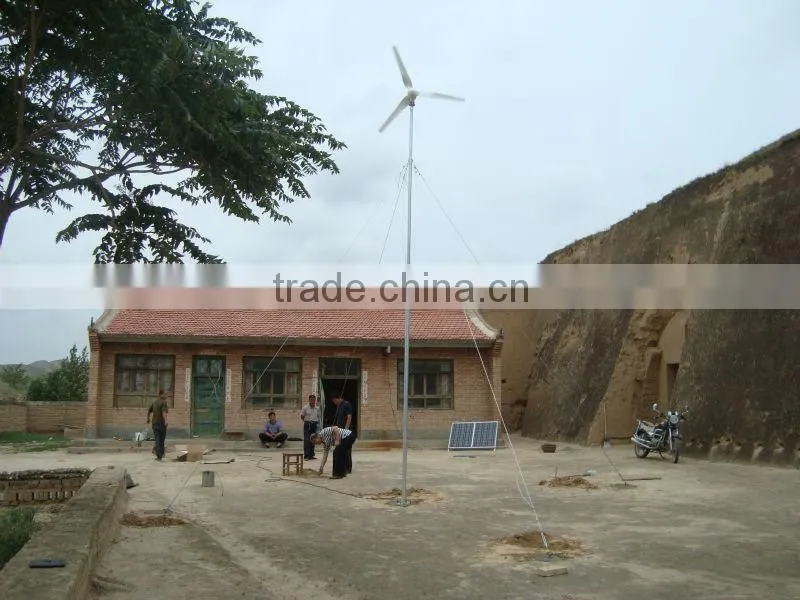

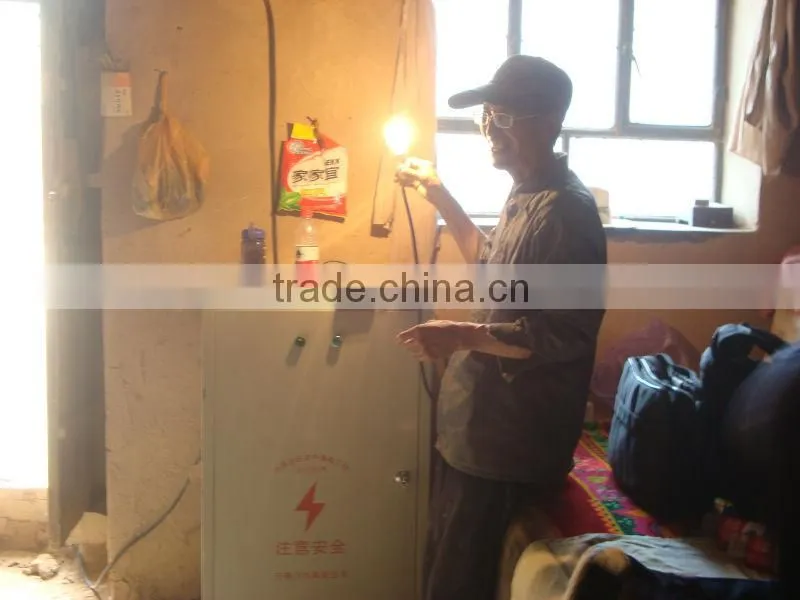

A stand alone Off-Grid Power System used in Non-electricity Remote Village in Gansu, China.

Datesheet:

Model	NE-1000	NE-2000
Rated power	1000W	2000W
Maximun power	1500W	2300w
Rated voltage	48V	48/96v
Start-up wind turbine	3m/s	3m/s
Rated wind speed	10m/s	11m/s
Survival wind turbine	45m/s	45m/s
Top net weight	37kg	43kg
Wheel diameter	2.8m	3.2m
Number of blades	3
Blades material	Nylon fiber/ reinforced glass fiber
generator	Three phase permanent magnet ac synchronous generator
magnet	NdFeB
Generator case	Casting aluminum alloy
Control system	Electromagnet/wind wheel yaw
Speed regulation	Tail furling
Working temperature	-40°C - 80°C
Design life	20 y
