500w 12V/24V Low Rpm Permanent Magnet Generator/ Alternator
Magnet Generator Details:
Magnet Generator Features:
1,Gearless, direct drive, low RPM generator
2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.

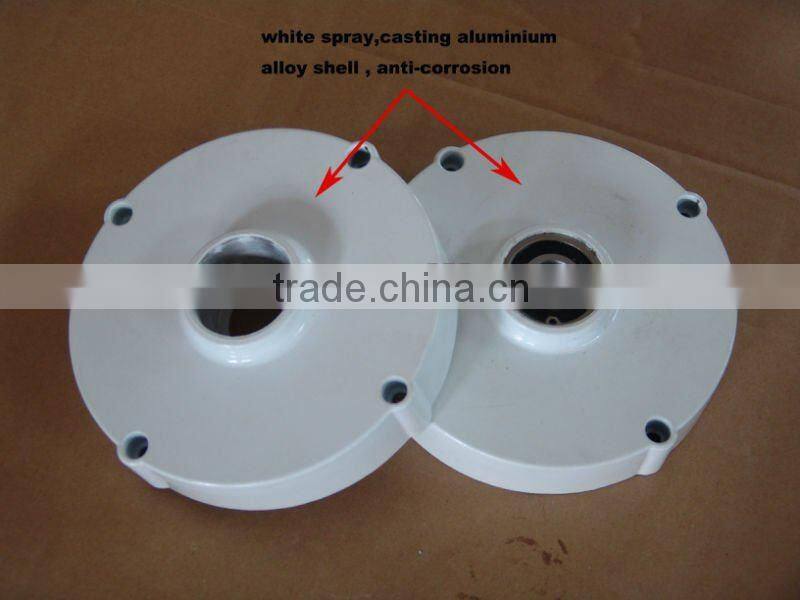

3,Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.

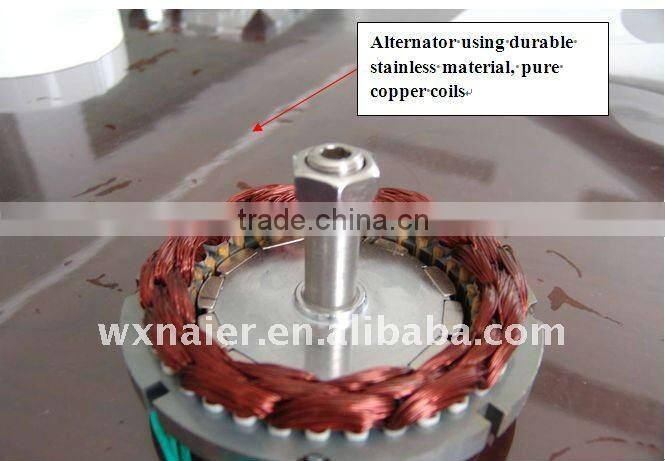

4,permanent magnet generator rotor using patented alternator, together with the special stator design,
Permanent Magnet Generator Tech Data:
Model | NE-500 |
Rated Power(w) | 500w |
Max Power(w) | 550w |
Rated Voltage(v) | 24v/48v |
Rated rotated speed(r/m) | 600 r/m |
Top net weight(kg) | 7kg |

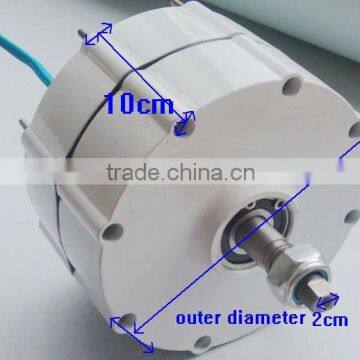

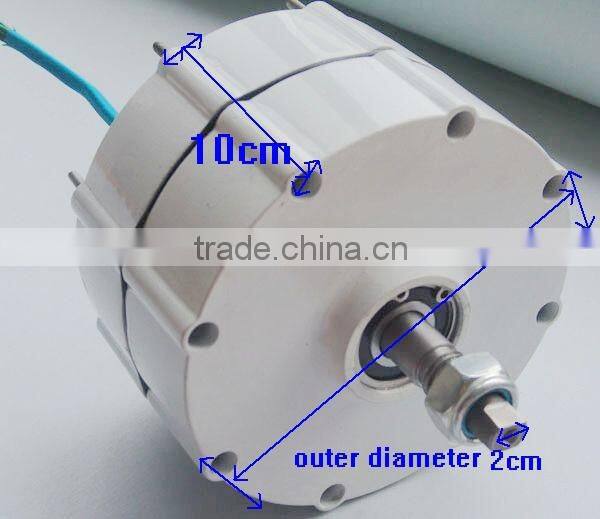

Dimension(stator height*diameter*length mm) | 100*175*60mm(one shaft) 100*175*205mm(two shaft) |
Lubrication | Lubrication Grease |
generator | Three phase permanent magnet ac synchronous generator |
Working temperature | -40°C - 80 °C |

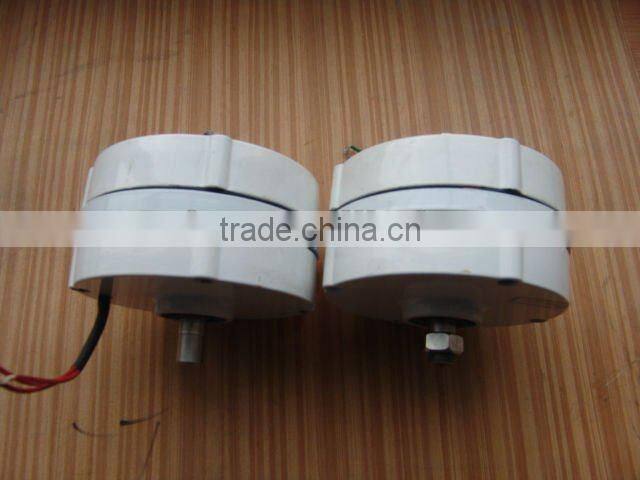

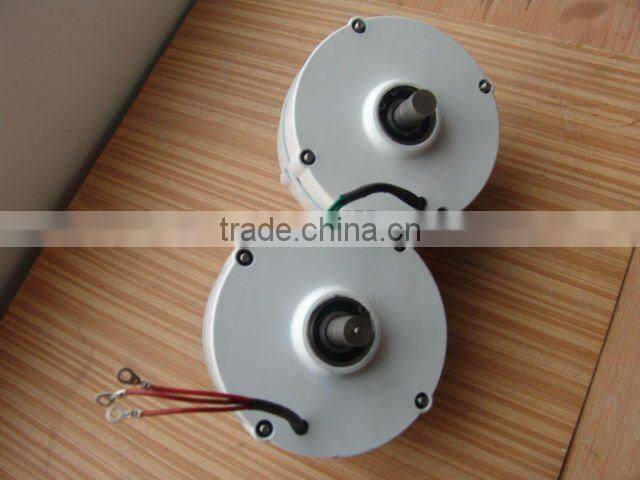

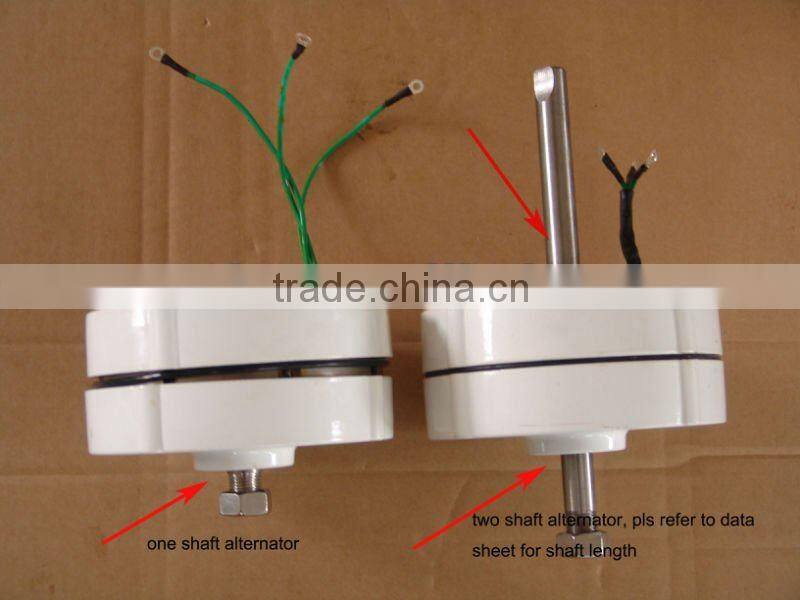

Please kindly be noted there are 2 kinds of alternator, one is one shaft ones ,that is shaft out one side only and another is doubleshaft ones whose shaft out two sides, please contact with us for detailed information. Thank you!
