Product Details
Place of Origin: | Hebei, China | Brand Name: | YITENG | Model Number: | DJYVP, DJYVPR, DJYPV, DJYPVR, DJYPVP, etc |
Insulation Material: | Other, PVC, PE, PVC or XLPE Insulated Computer Cable | Type: | Low Voltage | Application: | Telecommunication |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

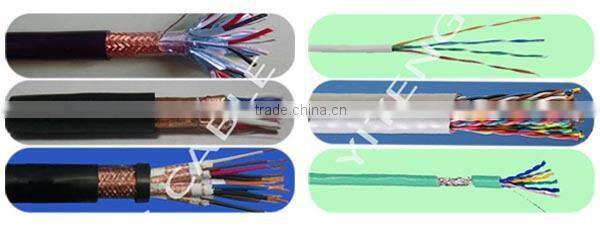

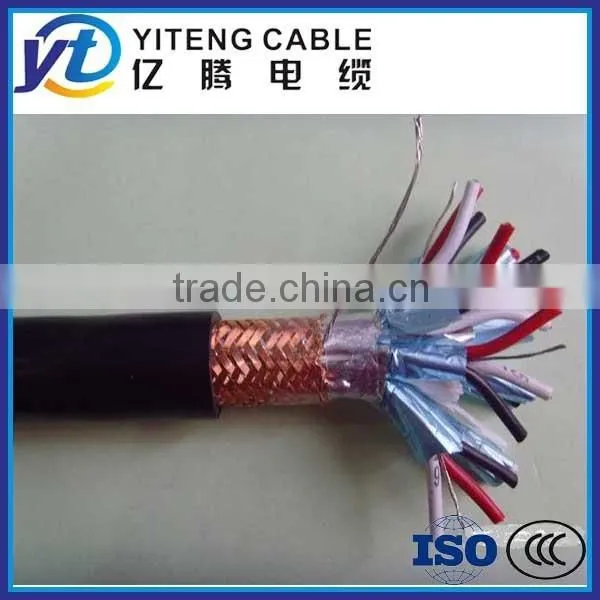

PVC Insulated and Sheathed Control Cable with Copper Wire Braiding Screeen for Computer -Yiteng Cable- Cable Manufacturer for 20 Years!
Product Description:
Computer Cable|Computer Shielded Cable (Cable for DSC system) is used as connection cable of inspection devices and instruments with high demand on interference resistant performance in computer net-work and control sys-tem.
1). Application of Screened Control Cable for Computer:
The cables are designed for connection wires
of computer control network and electrical apparatus
instruments and equipments and testing equipments
where interference resistance is highly requested with
A.C. rated voltage 300/500V and below.
2). Operating Features of Screened Control Cable for Computer:
2.1 Rated Voltage Uo/U is 300/500V.
2.2 Allowed Continuous working temperature of conductor is:
PVC insulated cable is :70℃
PE insulated cable is :70℃
XLPE insulated cable is :90℃
Installation temperature of cable should be not less than 0℃ .
and working ambient temperature is -40℃ +50℃.
2.3 Allowed bending radius is: Cables with copper tape screen
should be not less than 12 times of overall diameter of cable,
while other cables should be not less than 6 times of overall diameter of cable.
3). Types and Description of Screened Control Cable for Computer:
No. | Type | Computer Cable Description |

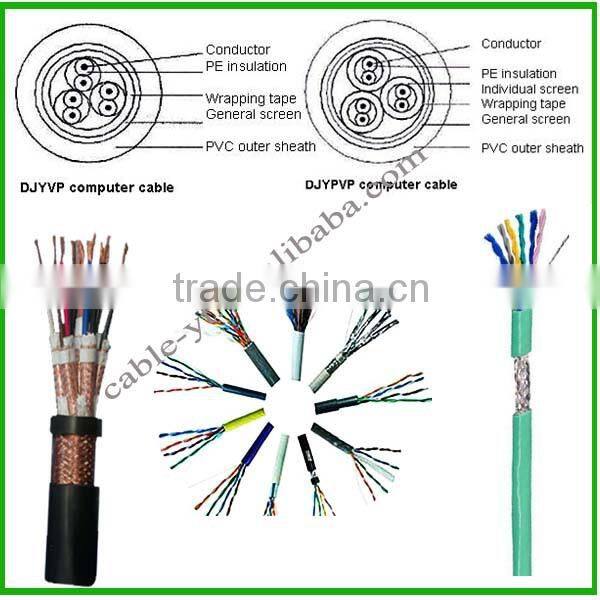

1 | DJYVP | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding |
2 | DJYVPR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding |
3 | DJYPV | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding |
4 | DJYPVR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding |
5 | DJYPVP | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general & individual shielding |
6 | DJYPVPR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper wire braided general & individual shielding |
7 | DJYVP2 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding |
8 | DJYVP2R | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding |
9 | DJYP2V | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding |
10 | DJYP2VR | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding |
11 | DJYP2VP2 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping |
individual & general shielding | ||
12 | DJYP2VP2R | Computer soft cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & general shielding |
13 | DJYVP3 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding |
14 | DJYVP3R | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding |
15 | DJYP3V | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding |
16 | DJYP3VR | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding |
17 | DJYP3VP3 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & general shielding |
18 | DJYP3VP3R | Computer soft cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & general shielding |
19 | DJYVP22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding, steel tape armor |
20 | DJYPV22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel tape armor |
21 | DJYPVP22 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & general shielding, steel tape armor |
22 | DJYVP2-22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding, steel tape armor |
23 | DJYP2V22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel tape armor |
24 | DJYP2VP2-22 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual & general shielding, steel tape armor |
25 | DJYVP3-22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding, steel tape armor |
26 | DJYP3V22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel tape armor |
27 | DJYP3VP3-22 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual & general shielding, steel tape armor |
28 | DJYVP32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided general shielding, steel wire armor |
29 | DJYPV32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual shielding, steel wire armor |
30 | DJYPVP32 | Computer cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & general shielding, steel wire armor |
31 | DJYVP2-32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general shielding, steel wire armor |
32 | DJYP2V32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping individual shielding, steel wire armor |
33 | DJYP2VP2-32 | Computer cable with Cu core, PE insulation, PVC sheath, copper-plastic compound tape wrapping general & individual shielding, steel wire armor |
34 | DJYVP3-32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general shielding, steel wire armor |
35 | DJYP3V32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping individual shielding, steel wire armor |
36 | DJYP3VP3-32 | Computer cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping general & individual shielding, steel wire armor |
4). Specification of Screened Control Cable for Computer:
Types of Computer Cable | Rated voltage of Computer Cable | Nom.Cross section area of conductor mm2 for Computer Cable | ||||
0.5 | 0.6 | 0.75 | 1.0 | 1.5 | ||
No . of pairs | ||||||
DJVVP,DJVVP2 | 300/500 | 1~61 Cores | ||||
DJYVP,DJYVP2 | ||||||
DJYJVP,DJYJVP2 | ||||||
DJVVP3,DJVPVP | ||||||
DJYVP3,DJYPVP | ||||||
DJYJVP3,DJYJPVP | ||||||
DJVP2VP2,DJVP3VP3 | ||||||
DJYP2VP2,DJYP3VP3 | ||||||
DJYJP2VP2,DJYJP3VP3 | ||||||
DJVVRP,DJVVRP3 | ||||||
DJYVRP,DJYVRP3 | ||||||
DJYJVRP,DJYJVRP3 | ||||||
DJVPVRP,DJVP3VRP3 | ||||||
DJYPVRP,DJYP3VRP3 | ||||||
DJYJPVRP,DJYJP3VRP3 |
5). Construction of Screened Control Cable for Computer:
Nom. cross section mm2 | Construction of omputer cable conductor | DC resistance of conductor at 20℃ (Max.)Ω/km | Computer Cable Nom.wall thickness of insulation mm | ||||
Category | No./Dia of strand mm | Not tinned | Tinned | PVC insulation | PE insulation | XLPE insulation | |
0.5 | 3 | 16/0.20 | 39.0 | 40.1 | 0.6 | 0.6 | 0.6 |
0.6 | 1 | 1/0.90 | 28.5 | 29.0 | 0.6 | 0.6 | 0.6 |
0.75 | 1 | 1/0.97 | 24.5 | 24.8 | 0.6 | 0.7 | 0.7 |
0.75 | 3 | 7/0.37 | 24.5 | 24.8 | 0.6 | 0.7 | 0.7 |
0.75 | 3 | 24/0.20 | 26.0 | 26.7 | 0.6 | 0.7 | 0.7 |
0.8 | 1 | 1/1.01 | 22.6 | 23.0 | 0.6 | 0.7 | 0.7 |
1.0 | 1 | 1/1.13 | 18.1 | 18.2 | 0.6 | 0.7 | 0.7 |
1.0 | 2 | 7/0.43 | 18.1 | 18.2 | 0.6 | 0.7 | 0.7 |
1.0 | 3 | 32/0.20 | 19.5 | 20.2 | 0.6 | 0.7 | 0.7 |
1.5 | 1 | 1/1.38 | 12.1 | 12.2 | 0.7 | 0.7 | 0.7 |
1.5 | 2 | 7/0.52 | 12.1 | 12.2 | 0.7 | 0.7 | 0.7 |
1.5 | 3 | 30/0.25 | 13.3 | 13.3 | 0.7 | 0.7 | 0.7 |
Company Profile:
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables, including:
Δ Aluminum Alloy Cable with or without Armor and Interlock,
Δ Control Cable with Multi-Cores,
Δ Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation,
Δ Shielded Cable or Screened Cable,
Δ ABC Cable in Aluminum for Overhead Application,
Δ Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armor,
Δ Rubber Cable for General Purposes, Welding Machines or for Mining,
Δ Armored Cable with Steel Tape or Steel Wire Armor,
Δ PVC Cable with PVC Insulation and PVC Sheath,
ΔLow Voltage Power Cable,
Δ Medium Voltage Power Cable,
Δ Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable,
Δ High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable,
Δ Fire Resistant Cable and Flame Retardant Cable,
Δ High Temperature Cable, including silicone rubber insulated cable and Teflon insulated cable,
Besides, Yiteng Cable also produce cables of customers' special requirement.
Let's win together!
Questions and Answers:
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
Yiteng Cable accepts small trial orders to facilitate customers' inspection and trial of our cables.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
Experts of Yiteng Cable will always wait to answer all your questions!
