450/750V PVC insulated and sheathed control cable
Product Name:
450/750V PVC insulated and sheathed control cable
Product Standards:
The product according to GB9330-88 " rated voltage 450/750V PVC insulated and sheathed control cable " standards.
Scope:
This product is suitable for AC rated voltage U0 / U 450/750V and below the control and protection circuits monitor Caroline and other occasions .
Use features:
Rated voltageU0/U 450/750V
Cable guides allow long-term maximum operating temperature is 70 ℃.
The ambient temperature should not be less than 0 ℃.
Cable bending radius: non-armored cable braided shield and there should be no less than six times the wire diameter; armored or copper screened cable should be not less than 12 times the cable diameter.
Model and Data
Model |
Name |
Laying occasions and requirements |
KVV |
Copper core PVC insulated and sheathed control cable |
For laying indoors, cable trench, pipeline and other fixed places |
KVVR |
Copper core PVC insulated and sheathed control cable |
For laying indoors, soft and so requires moving |
KVVP |
Copper core PVC insulated and sheathed control cable braided shield |
For laying indoors , cable trench , pipeline and other fixed occasion requires tamper-proof |
KVVP2 |
Copper core PVC insulated and sheathed copper tape shield control cable |
For laying indoors , cable trench , pipeline and other fixed occasion requires tamper-proof |
KVVRP |
PVC insulated and sheathed copper braided shield flexible control cable |
For laying indoors, mobile soft anti- interference requirements fixed places |
KVV22 |
Conductor PVC insulated and sheathed copper armored control cable |
For laying indoors , cable trench , pipeline, buried and so can withstand a certain fixed places mechanical force |
KVVP22 |
PVC insulated and sheathed copper braided shield armored control cable |
For laying indoors , cable trench , pipeline and other fixed occasion requires tamper-proof |
KVVP2-22 |
Copper core PVC insulated steel tape armored control cable shielding |
For laying indoors , cable trench , pipeline and other fixed occasion requires tamper-proof |
Production Range
Model |
Rated voltage |
Nominal cross sectionmm2 |
|||||||
0.75 |
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
|||
Number of cores | |||||||||
KVV,KVVP |
450/750V |
2~61 |
2~14 |
2~10 |
|||||
KVVP2 |
4~61 |
4~14 |
4~10 |
||||||
KVV22 |
7~61 |
4~61 |
4~14 |
4~10 |
|||||
KVVR |
4~61 |
— |
— |
||||||
KVVRP |
4~61 |
4~48 |
— |
— |
|||||

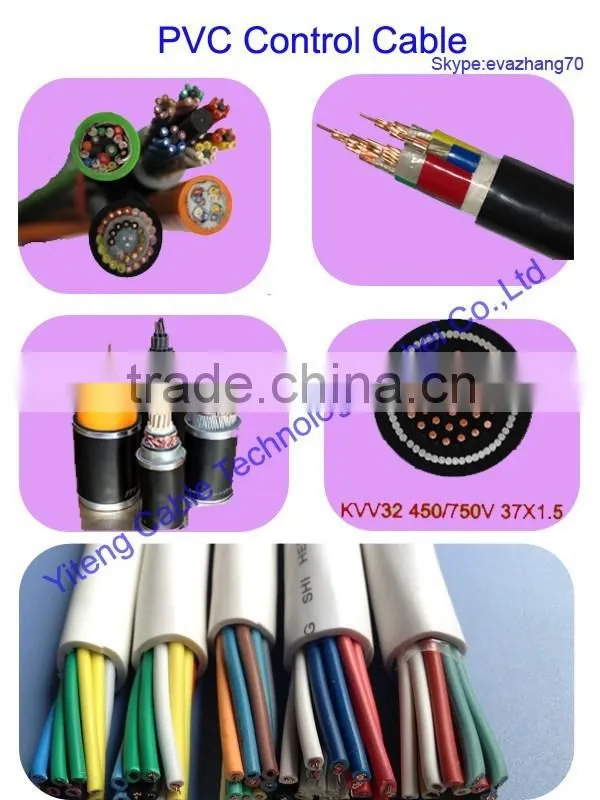

Cable Structure
Yiteng Cable Technology Hebei Co., Ltd
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
Our Test Instrument
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, HebeiProvince, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
Our Services
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from
our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Notice:we can produce the product according to customer's requirment.Short delivery time and quotation at once.
