Shielded Cable With Copper Core PVC Insulation Control Cable
- TIANJIN SHANGHAI QINGDAO
- T/T Credit Card PayPal
You May Like
-
450/750V Multicore Copper Conductor PVC Insulated and Sheathed Braiding Screened/Shielded Control Cable
-
Rvvp Flexible Shielded Electrical Cables
-
Metallic Shielded Monitoring Rubber Sheathed Flexible Cable for Coal Mining
-
Flame Retardant Control Cable Fire Resistant Cable
-
Multicore Double Shielded Control Cable Pvc Cable
-
Cu Tape Screened/PVC Sheathed/Swa/Computer/Instrument Cable
Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | KVV/KVVP/KVVP2/KVV22/KVVR/KVVRP | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

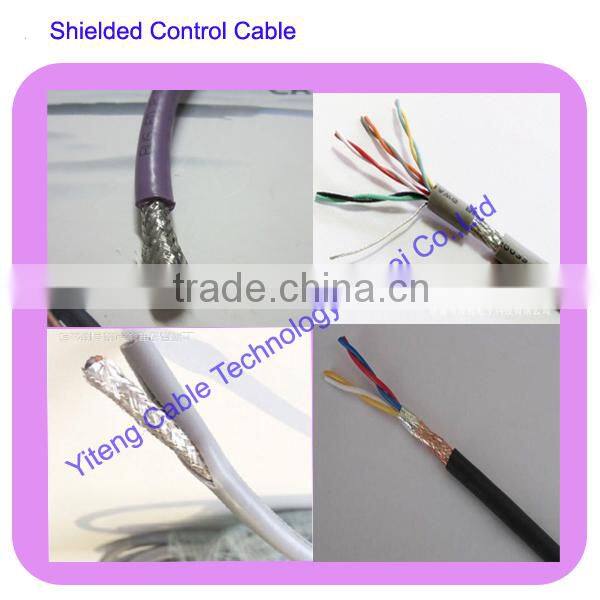

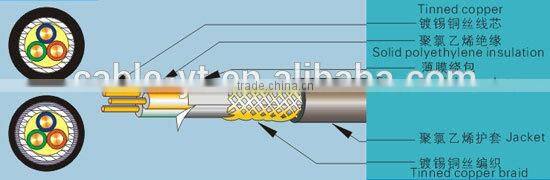

Shielded Cable with Copper Core PVC Insulation Control Cable
Product Description
Specifications
1) Copper conductor PVC/XLPE control cable
2) Widely used IEC products
3) Excellent performance and competitive prices
Application
450/750V copper conductor control cable is widely used for fixed wiring in control, monitoring and protection circuits of rated voltage 450/750V and below
Manufacturing Standards GB/T 12706-2008, IEC 60502-2
Code | Description | No. of Cores | Sectional Area (mm2) |
KVV | PVC insulated and sheathed control cable | 2~61 | 0.75~10 |
KVVP | PVC insulated and sheathed control cable with braided screen | 2~61 | 0.75~10 |
KVVP2 | PVC insulated and sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KVVP3 | PVC insulated and sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
KVV22 | Steel tape armored PVC insulated and sheathed control cable | 4~61 | 0.75~10 |
KVVP2-22 | Steel tape armored PVC insulated and sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KVV32 | Steel wire armored PVC insulated and sheathed control cable | 4~61 | 0.75~10 |
KVVR | PVC insulated and sheathed flexible control cable | 2~61 | 0.5~2.5 |
KVVRP | PVC insulated and sheathed flexible control cable with braided screen | 2~61 | 0.5~2.5 |
KYJV | XLPE insulated PVC sheathed control cable | 2~61 | 0.75~10 |
KYJVP | XLPE insulated PVC sheathed control cable with braided screen | 2~61 | 0.75~10 |
KYJVP2 | XLPE insulated PVC sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KYJVP3 | XLPE insulated PVC sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
KYJV22 | Steel tape armored XLPE insulated PVC sheathed control cable | 4~61 | 0.75~10 |
KYJVP2-22 | Steel tape armored XLPE insulated PVC sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KYJV32 | Steel wire armored XLPE insulated PVC sheathed control cable | 4~61 | 0.75~10 |
KYJY | XLPE insulated polyolefin sheathed control cable | 2~61 | 0.75~10 |
KYJYP | XLPE insulated polyolefin sheathed control cable with braided screen | 2~61 | 0.75~10 |
KYJYP2 | XLPE insulated polyolefin sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KYJYP3 | XLPE insulated polyolefin sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
KYJY23 | Steel tape armored polyolefin insulated PVC sheathed control cable | 4~61 | 0.75~10 |
KYJYP2-23 | Steel tape armored XLPE insulated polyolefin sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
KYJY33 | Steel wire armored polyolefin insulated PVC sheathed control cable | 4~61 | 0.75~10 |
