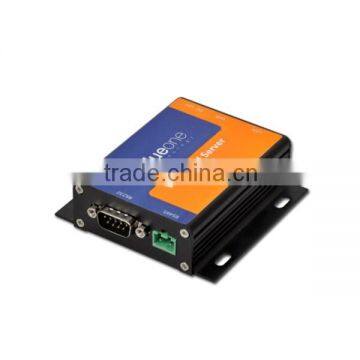

Hot Sale Data Transmission Device RS232/RS485 Port WiFi Adapter

FOB Price

US$ 35 - 50 / Piece

1 Piece(Min. Order)

Port SHENZHEN/HONGKONG
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Blueone
Model Number	WSS900

Product Description

Hot Sale data transmission device RS232/RS485 port WiFi adapter

WiFi Serial Device Server is a server which realizes two-way transparent transmission between RS232/485 and WiFi.

Through WiFi serial device server, serial port devices with RS232/485 can be connected to the Internet over WiFi or Ethernet cable.

Thus, you can easily manage these serial devices from a mobile phone or computer over the Internet remotely.

Key Features

Ultra-range coverage

Support 10/100M Ethernet

Station/AP two work mode

Wireless communication

Compact design for easy installation

Web-based software, easy to operate

Remote control one or multiple devices

Software

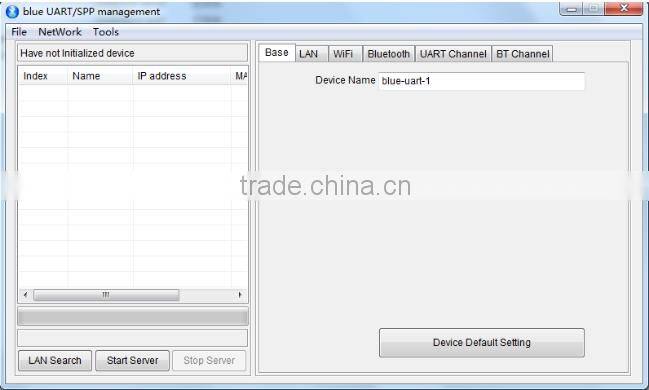

we provide free software to manage and monitor the WiFi adapter

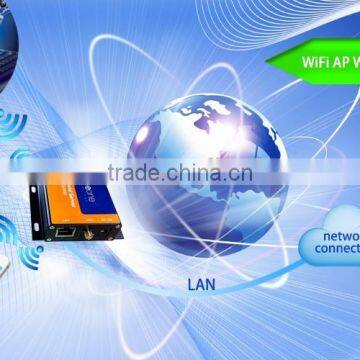

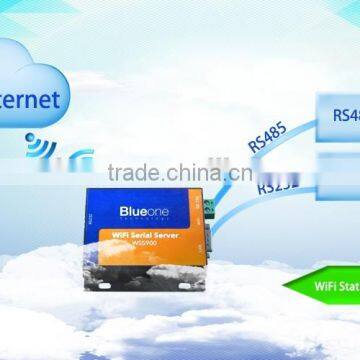

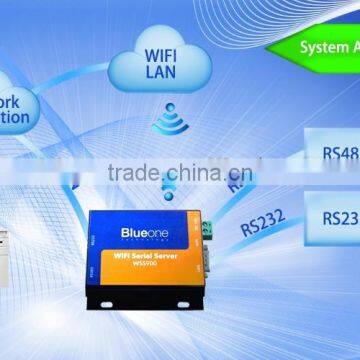

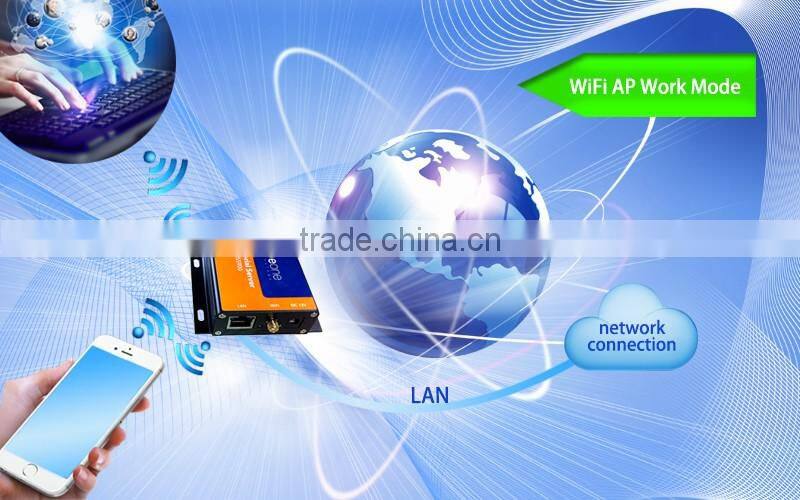

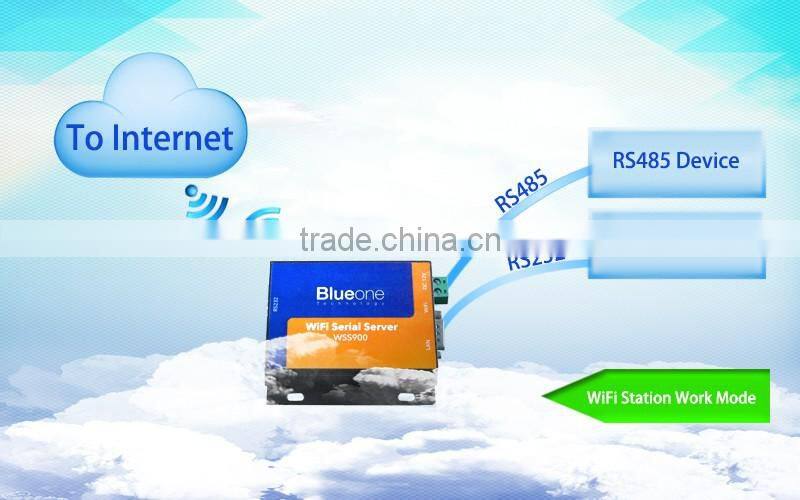

How WiFi adapter works

Specifications

System Hardware Information

Processor	Embedded MIPS24KEc
Working frequency	580Mhz
Memory	128MBytes DDR2
Flash	32MBytes
Network	1 10M/100M
WIFI	802.11n 2.4 GHz 150M
Emission power	16.5DB
RS232/RS485	2 Channel
Bluetooth Connect	7 Channel (Optional)
Power Input	DC 9~28V
Power consumption	1A/12V
Working temperature	-20~80℃
Storage temperature	-30 ~85℃
Operating humidity	5 - 95%RH
Certification	FCC/CE

Network parameters

Speed	10/100M Auto
Electromagnetic isolation	2KV
Network Protocol	IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP
MAX TCP Connectors	4096
SDK Soft	PHP5.5
Setting Mode	Software / Webserver

WiFi parameters

Frequency	2.4G
Interface	SMA RF Antenna
Transmission power	+16.5 DB (802.11n)
Sensitivity	-75DB (802.11n)
Encryption	WPA/WPA2 TKIP/AES
Transmission Distance	200M
Work Mode	Station/AP
User Number	MAX 120

UART RS232 Information

RS232 Port	1
Baud rate	300~230400BPS
Data bit	5/6/7/8 Bits
Stop Bit	1/2 Bits
Check	None/Odd/Event
Buffer Size	4MBytes
Interface	DB9 Female Head and Male Pin

UART RS485 Information

RS485 Port	1
Baud rate	300~230400BPS
Data bit	5/6/7/8 Bits
Stop Bit	1/2 Bits
Check	None/Odd/Event
Buffer Size	4MBytes
Interface	Two Line (A,B)
