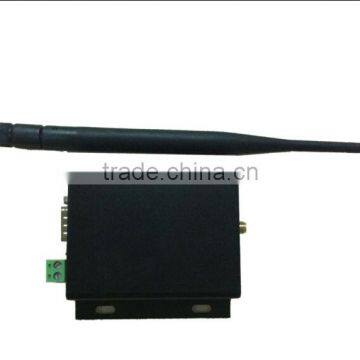

Industrial Serial Server UART to WiFi and Ethernet Serial Device Server

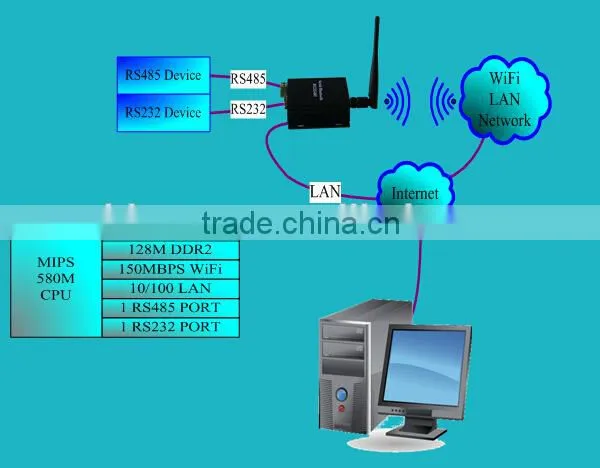

WiFi Serial Device Server is a mini server which realizes two-way transparent transmission between RS232/485 and WiFi.
Through WiFi serial device server, serial port devices with RS232/485 can be connected to the Internet over WiFi or Ethernet cable.
Thus, you can easily manage these serial devices from a mobile phone or computer over the Internet remotely.
System Hardware Information
Processor |
Embedded MIPS24KEc |
Working frequency |
580Mhz |
Memory |
128MBytes DDR2 |
Flash |
32MBytes |
Network |
1 10M/100M |
WIFI |
802.11n 2.4 GHz 150M |
Emission power |
16.5DB |
RS232/RS485 |
2 Channel |
Bluetooth Connect |
7 Channel (Optional) |
Power Input |
DC 9~28V |
Power consumption |
1A/12V |
Working temperature |
-20~80℃ |
Storage temperature |
-30 ~85℃ |
Operating humidity |
5 - 95%RH |
Package Size |
|
Certification |
FCC/CE |
Network parameters
Speed |
10/100M Auto |
Electromagnetic isolation |
2KV |
Network Protocol |
IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP |
MAX TCP Connectors |
4096 |
SDK Soft |
PHP5.5 |
Setting Mode |
Software / Webserver |
WiFi parameters
Frequency |
2.4G |
Interface |
SMA RF Antenna |
Transmission power |
+16.5 DB (802.11n) |
Sensitivity |
-75DB (802.11n) |
Encryption |
WPA/WPA2 TKIP/AES |
Transmission Distance |
400M |
Work Mode |
Station/AP |
User Number |
MAX 120 |
UART RS232 Information
RS232 Port |
1 |
Baud rate |
300~230400BPS |
Data bit |
5/6/7/8 Bits |
Stop Bit |
1/2 Bits |
Check |
None/Odd/Event |
Buffer Size |
4MBytes |
Interface |
DB9 Female Head and Male Pin |
UART RS485 Information
RS485 Port |
1 |
Baud rate |
300~230400BPS |
Data bit |
5/6/7/8 Bits |
Stop Bit |
1/2 Bits |
Check |
None/Odd/Event |
Buffer Size |
4MBytes |
Interface |
Two Line (A,B) |
Bluetooth (Optional)
Frequency |
2.4G |
SPP Channel |
7 |
Speed |
MAX 3MBps |
Interface |
SMA RF Antenna |
Emission power |
6.5DB |
Sensitivity |
-103DB |
Support Bluetooth version |
4.0/3.0/2.1/2.0 |
|
|
|
~ Blueone products enjoy high quality and perfect after-sale services
~ Blueone provide quick shipment via various ways( DHL, UPS, FedEx, TNT, EMS, sea transportation, air transportation)
~ Blueone provide professional technical support and customized services
~ Free firmware upgrading
~ One year warranty
Payment methods: TT, Paypal, Western Union
Need any more details about our Serial Device Server, please contact us freely. Your inquiry will get reply immediately or within 12 hours if it is not our working time. Thank you for kind cooperation!
