WiFi Serial Device Server
WiFi Serial Device Server is a server which realizes two-way transparent transmission between RS232/485 and WiFi.
Through WiFi serial device server, serial port devices with RS232/485 can be connected to the Internet over WiFi or Ethernet cable.
Thus, you can easily manage these serial devices from a mobile phone or computer over the Internet remotely.
System Hardware Information
Processor |
Embedded MIPS24KEc |
Working frequency |
580Mhz |
Memory |
128MBytes DDR2 |
Flash |
32MBytes |
Network |
1 10M/100M |
WIFI |
802.11n 2.4 GHz 150M |
Emission power |
16.5DB |
RS232/RS485 |
2 Channel |
Bluetooth Connect |
7 Channel (Optional) |
Power Input |
DC 9~28V |
Power consumption |
1A/12V |
Working temperature |
-20~80℃ |
Storage temperature |
-30 ~85℃ |
Operating humidity |
5 - 95%RH |
Certification |
FCC/CE |
Network parameters
Speed |
10/100M Auto |
Electromagnetic isolation |
2KV |
Network Protocol |
IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP |
MAX TCP Connectors |
4096 |
SDK Soft |
PHP5.5 |
Setting Mode |
Software / Webserver |
WiFi parameters
Frequency |
2.4G |
Interface |
SMA RF Antenna |
Transmission power |
+16.5 DB (802.11n) |
Sensitivity |
-75DB (802.11n) |
Encryption |
WPA/WPA2 TKIP/AES |
Transmission Distance |
200M |
Work Mode |
Station/AP |
User Number |
MAX 120 |
UART RS232 Information
RS232 Port |
1 |
Baud rate |
300~230400BPS |
Data bit |
5/6/7/8 Bits |
Stop Bit |
1/2 Bits |
Check |
None/Odd/Event |
Buffer Size |
4MBytes |
Interface |
DB9 Female Head and Male Pin |
UART RS485 Information
RS485 Port |
1 |
Baud rate |
300~230400BPS |
Data bit |
5/6/7/8 Bits |
Stop Bit |
1/2 Bits |
Check |
None/Odd/Event |
Buffer Size |
4MBytes |
Interface |
Two Line (A,B) |
Features of WiFi Serial Device Server
Ultra-range coverage
Compact design for easy installation
Station/AP two work mode
Wireless communication
Web-based software, easy to operate
Remote control one or multiple devices
System Apply Frame

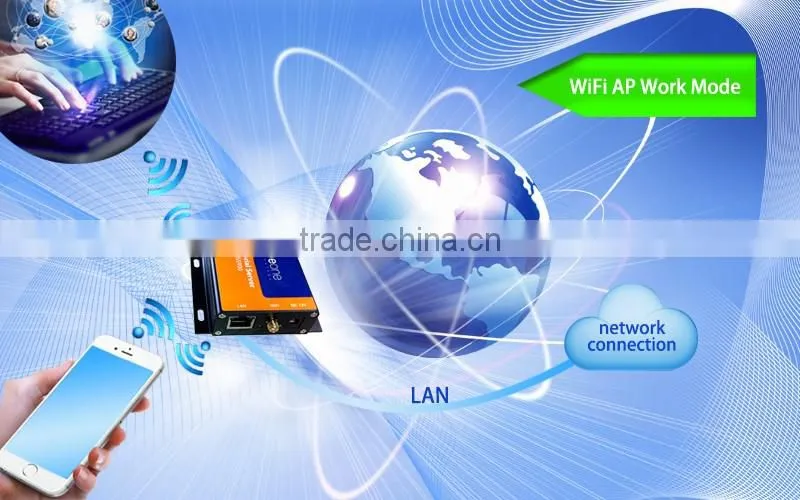

WiFi AP Work Mode

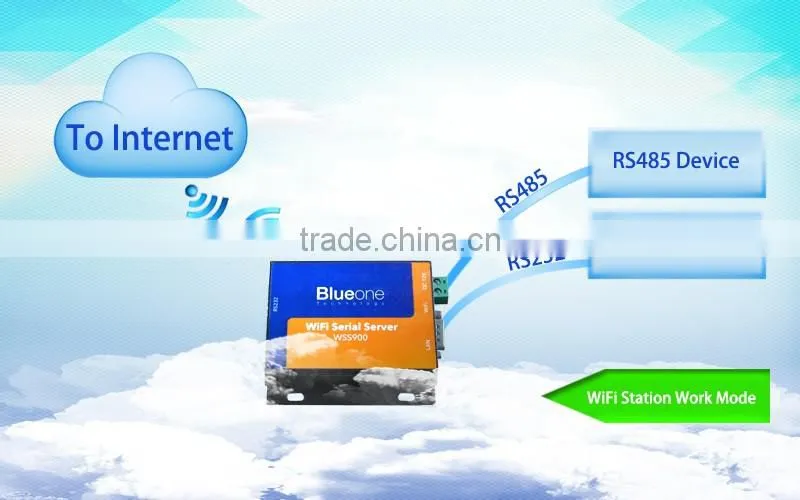

WiFi Station Work Mode
