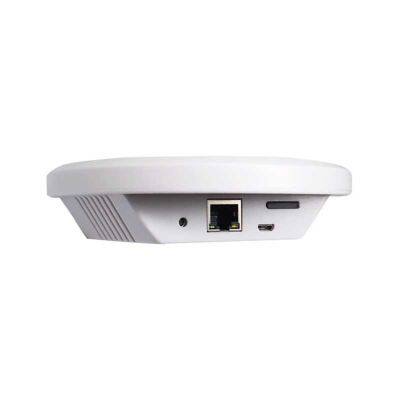

Wi-Fi and Bluetooth Gateway Beacon Positioning Base Station IBeacon Signal Reception Data Collector

Model No.: GW1 Bluetooth Gateway

Features:

– Using nRF52832 Bluetooth chip, with ultra-high Bluetooth receiving sensitivity, to achieve large-scale monitoring
– Cortex-M4 microcontroller core, ultra-high processing speed
– Supports three data upload methods: MQTT, HTTP, and WebSocket
– Can scan multiple types of BLE data (directed broadcast, non-directed broadcast, connectable broadcast, and unlinkable broadcast)
– Can be filtered through RSSI
– Read broadcast information from multiple BLE devices simultaneously and upload it to a remote server
– Built-in watchdog ensures product stability
– Support software air upgrade

Parameters:

Power supply: 5V/2A Micro USB or POE
Upload data: BLE Broadcast Data
Upload Protocol: MQTT, HTTP, Websocket
Upgrade: Aerial Upgrade
Size: Φ150mm*36mm
Working temperature -20 ℃~60 ℃

Bluetooth
Chipset: nRF52832
Working Voltage: 1.8-3.6v
Working Frequency: 2402 – 2480MHz
Receiving Current: 5.4mA
Sleep Current: 0.3uA
Receiving Sensitivity: – 97dBm
Speed: 1Mbps, 2Mbps
Scanning Distance: 50m
WiFi
Chipset: ESP32
Protocol: Supports 802.11 b/g/n/e/i (802.11n, speed 150 Mbps)
Frequency Band: 2.4GHz frequency band
Transmission Power: @ 802.11dB + 20dBm, @ 802.11n + 14dBm
Speed: 150Mbps
Distance: Within a range of 100M in an open space
Ethernet
Working Mode: Full duplex 10-BASE-T 100BASE-TX transceiver, supporting
10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operations
POE: 15W Ethernet power supply complies with IEEE 802.3 a of specification

Application Scenarios:

– Warehouse Management
– Asset Management
– Parking Lots
– Indoor Positioning
– Industrial Automation
