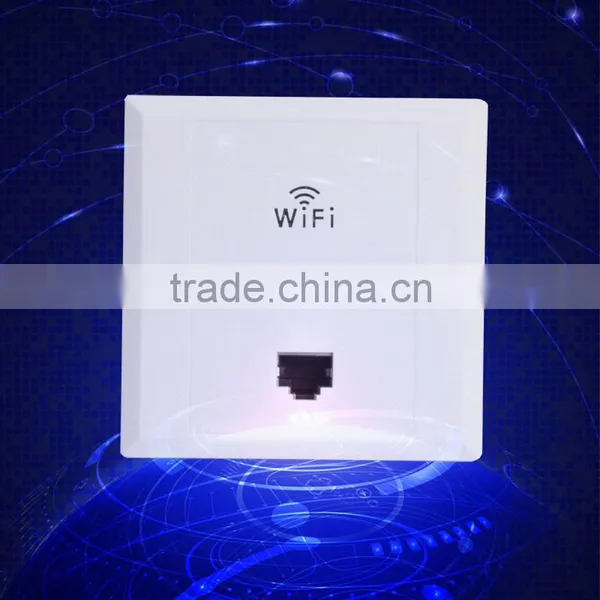

Cascaded low power In Wall AP with POE
Blueone SA225 Wall Mounted wireless AP support POE power supply and cascade connection, which saves Ethernet cables and switches and easy for cabling.
This AP is a newly designed product to supply public WiFi for hotel, KTV, dormitory, office, shopping mall, etc. The features of this product are low power consumption, low temperature and stable signal with no crash. It is the best-selling product among all Wall mounted wireless AP.
AP cascade connection
Specifications
|
Master chip |
MTK7628A 300Mbps wireless AP |
|
|
Dominant frequency |
580Mhz |
|
|
Wireless technology |
802.11N ,2T2R 300M MIMO technology |
|
|
Storage |
128MB DDR2 RAM |
|
Hardware |
Device interface |
Two 10/100Mbps self-adaption Ethernet ports |
|
|
|
One reset button for factory setting |
|
|
|
|
|
|
|
|
|
|
Antenna |
Two 2.4G MIMO omni built-in 5DBI antennas |
|
|
Dimension |
168mm x 168mm x 48mm(length x width x height) |
|
|
|
|
|
|
Weight |
Gross 0.2kg |
|
|
Power source |
POE 24V |
|
|
RF power |
18dBm±2dBm |
|
|
RF band |
Support 5,10,20,HT40MHz |
|
RF |
|
-62dBm@150Mbps ,-65dBm@128Mbps ,-69dBm |
|
|
|
@78Mbps , |
|
|
Receiving sensitivity |
-72dBm@54Mbps,-74dBm@48Mbps,-84dBm@12 |
|
|
|
Mbps,- |
|
|
|
90dBm@6Mbps,-95dBm@1Mbps |
|
|
Work mode |
AP/Station mode |
|
|
Communication |
IEEE |
802.3(Ethernet) |
|
standard |
IEEE |
802.3u(Fast Ethernet) |
Software |
|
IEEE |
802.11 b/g/n(2.4G WLAN) |
|
System configuration |
By WEB configuration |
|
|
|
|
|
|
Firmware upgrading |
By WEB Log-in or TFTP |
|
|
User management |
Username and password configurable |
|
|
Operating |
-10℃ to 70℃; Storage temperature: -20℃ to 80℃ |
|
Physical |
temperature |
|
|
|
Operating humidity |
10% to 90%RH non-condensing; Storage |
|
|
|
humidity: |
|
|
|
5% to 90%RH non-condensing; |
|

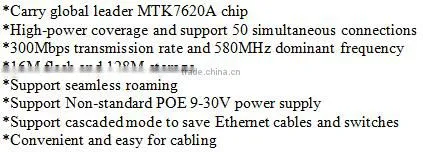

Features
