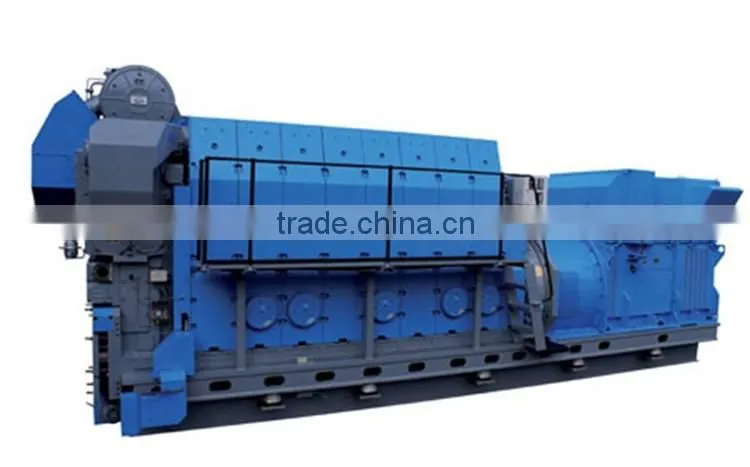

2000-4300kW series general Genset uses L27/38 and L32/40 diesel engines jointly produced by Weichai and Germany-based MAN Diesel AG, as its power source, and equipped with brand name generator. Its rotation speed reaches 750r/min. The Genset is manufactured and tested according to ISO8528 and GB/T2820 Standard.
Features:
- High accuracy in pressure adjustment; excellent dynamic performances.
- Good appearance and compact structure.
- High reliability and continuous operation under full load.
- Long durability, low fuel consumption, and good environmental adaptability.
2000-4300kW Universal Generating Sets
| Set model | Rated power (kW) |
Rated voltage (V) |
Fuel consumption at rated load (L/h) |
Weichai L27/38,L32/40 diesel engine | Excitation mode |
|||||
Engine model |
Rated power (kW) |
Rated speed (r/min) |
No. of cylinders |
Bore×Stroke(mm) | Cooling method |
|||||
| WD2750/2 | 2000 | 400/230 | 500 .0 | 6L27/38 | 2100 | 750 | 6 | 270×380 | Open water cooling | Brushless |
| WD3231/2 | 2350 | 400/230 | 587.5 | 7L27/38 | 2450 | 750 | 7 | 270×380 | Open water cooling | Brushless |
| WD3644/2 | 2650 | 400/230 | 662.5 | 8L27/38 | 2800 | 750 | 8 | 270×380 | Open water cooling | Brushless |
| WD3919/2 | 2850 | 400/230 | 712.5 | 6L32/40 | 3000 | 750 | 6 | 320×400 | Open water cooling | Brushless |
| WD4125/2 | 3000 | 400/230 | 750.0 | 9L27/38 | 3150 | 750 | 9 | 270×380 | Open water cooling | Brushless |
| WD4606/2 | 3350 | 400/230 | 837.5 | 7L32/40 | 3500 | 750 | 7 | 320×400 | Open water cooling | Brushless |
| WD5294/2 | 3850 | 400/230 | 962.5 | 8L32/40 | 4000 | 750 | 8 | 320×400 | Open water cooling | Brushless |
| WD5913/2 | 4300 | 400/230 | 1075.0 | 9L32/40 | 4500 | 750 | 9 | 320×400 | Open water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
