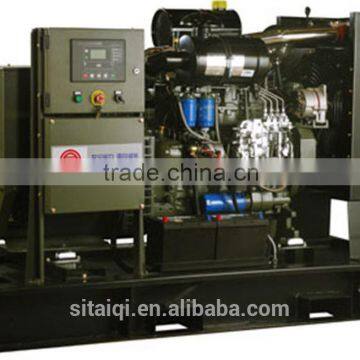

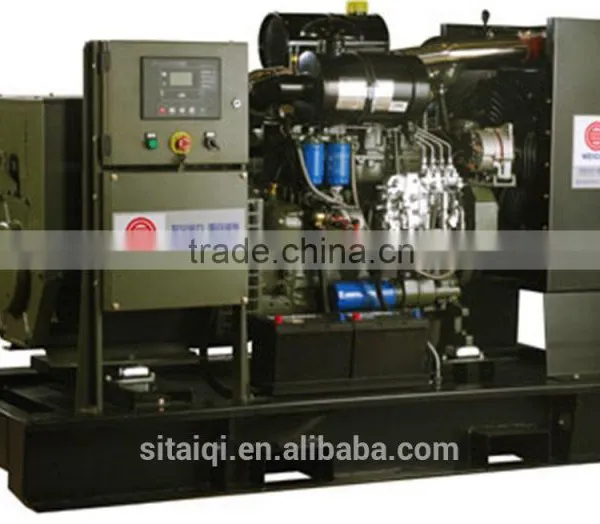

Weichai 20-120kW Series Land Standard Diesel Genset

Name: Weichai 20-120kW Series Land Standard Diesel Genset
Brand: Weichai
SKU: 112656643
Availability: InStock

Weichai 20-120kW Series Land Standard Diesel Genset thumbnail-1

Weichai 20-120kW Series Land Standard Diesel Genset photo-1

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Weichai

Model Number:

20-120Kw Series

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other ports in China Mainland

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Weichai

Model Number 20-120Kw Series

Type Generator

Electricity Generator Type Other, Diesel

Output Voltage (V) 400

Product Description

The 20-120kW Series Land Standard Genset adopts 226B series eco-friendly diesel engines jointly manufactured by Weichai Group and Germany-based Deutz as its power source, equipped with brand name generators and high-performance control system. It has advantages of good appearance, high reliability, stable performance, high accuracy in pressure adjustment and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.

Features:

It delivers excellent performances.
With modular design and compact structure, this series Genset delivers excellent performances inclusive of high power, high reliability, high versatility and easy maintenance for its components.
Its generator is safe and reliable.
It uses brand name generators with an insulation Grade ≥ F Class.
It can easily start up and stop.
It can start up quickly and reach a full load in a short time.
it is highly economic.
Low overall costs, high fuel economy and high thermal efficiency. Its fuel consumption curve changes slightly under changing working conditions. It is also highly economic under low load.

Main Technical Data

0-120kW Series Standard Generating Sets

Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Weichai 226B Series Diesel Engine						Excitation mode
Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Engine model	Rated power (kW)	Rated speed (r/min)	No. of cylinders	Bore×Stroke(mm)	Cooling method	Excitation mode
WD27.5/9	20	400/230	5.0	D226B-3D	30	1500	3	105×120	Close water cooling	Brushless
WD33/9	24	400/230	6.0	D226B-3D	30	1500	3	105×120	Close water cooling	Brushless
WD41/9	30	400/230	7.5	TD226B-3D	40	1500	3	105×120	Close water cooling	Brushless
WD55/9	40	400/230	10.0	WP4D66E200	60	1500	4	105×130	Close water cooling	Brushless
WD68.5/9	50	400/230	12.5	WP4D66E200	60	1500	4	105×130	Close water cooling	Brushless
WD88/9	64	400/230	16.0	WP4D100E200	90	1500	4	105×130	Close water cooling	Brushless
WD103/9	75	400/230	18.8	WP4D100E200	90	1500	4	105×130	Close water cooling	Brushless
WD110/9	80	400/230	20.0	WP4D100E200	90	1500	4	105×130	Close water cooling	Brushless
WD123.5/9	90	400/230	22.5	WP6D132E200	120	1500	6	105×130	Close water cooling	Brushless
WD137.5/9	100	400/230	25.0	WP6D132E200	120	1500	6	105×130	Close water cooling	Brushless
WD165/9	120	400/230	30.0	WP6D152E200	138	1500	6	105×130	Close water cooling	Brushless
The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Product Application

Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
