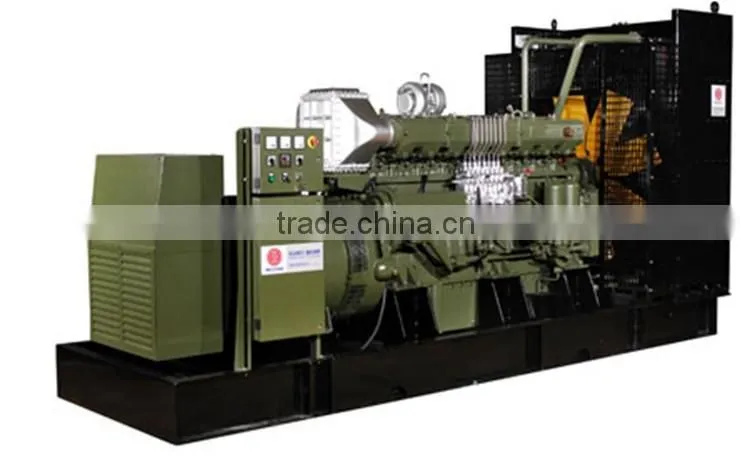

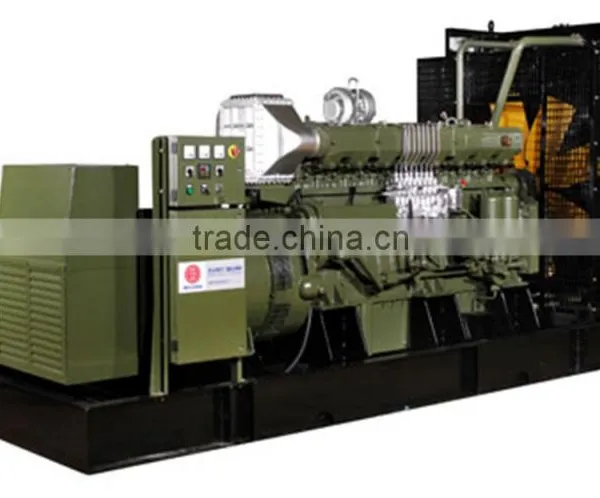

The 400-600kW Series Land Standard Genset adopts 170 series diesel engine as its power source and equipped with brand name generator and high-performance control system. The engine is jointly developed by Weichai Group and AVL after a full integration of global advanced technologies of internal combustion engines. It has advantages of high reliability, stable performance, high accuracy in pressure adjustment, low fuel consumption, good environmental adoptability and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards.
Features:
- It delivers excellent performances:
- Compact structure, powerful, easy maintenance, high reliability, wide power coverage, low fuel consumption, low vibration, stable operational performance.
- It delivers excellent performances.
- With modular design and compact structure, this series Genset delivers excellent performances inclusive of high power, high reliability, high versatility and easy maintenance for its components.
- Its generator is safe and reliable.
- It uses brand name generators with an insulation Grade ≥ F Class.
- It is highly economic.
- Low overall costs, high fuel economy and high thermal efficiency. Flat fuel consumption curve under changing working conditions. High economic performance under low load.
400-600kW Series Standard Generating Sets
| Set model | Rated power (kW) |
Rated voltage (V) |
Fuel consumption at rated load (L/ h) |
Weichai 170 Series Diesel Engine | Excitation mode | |||||
| Engine model | Rated power (kW) |
Rated speed (r/min) |
No. of cylinders | Bore×Stroke(mm) | Cooling method | |||||
| WD550/5 | 400 | 400/230 | 93.0 | X6170ZD440-4 | 440 | 1500 | 6 | 170×200 | Close water cooling | Brushless |
| WD687.5/5 | 500 | 400/230 | 116.0 | X6170ZD540-4 | 540 | 1500 | 6 | 170×200 | Close water cooling | Brushless |
| WD825/5 | 600 | 400/230 | 139.5 | 8170ZD650-4 | 650 | 1500 | 8 | 170×200 | Close water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
