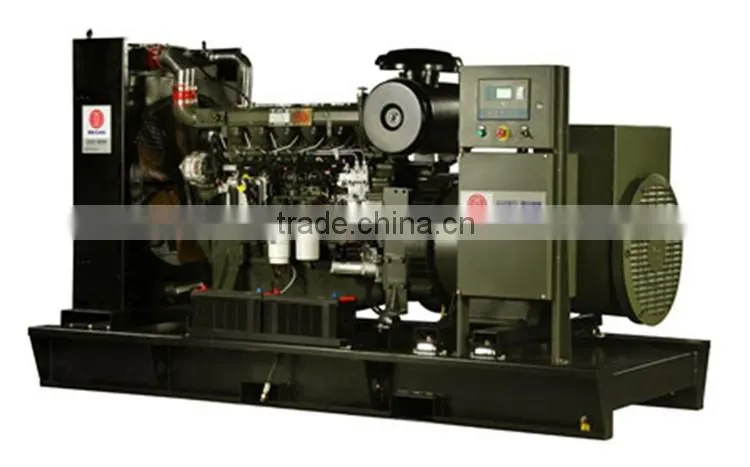

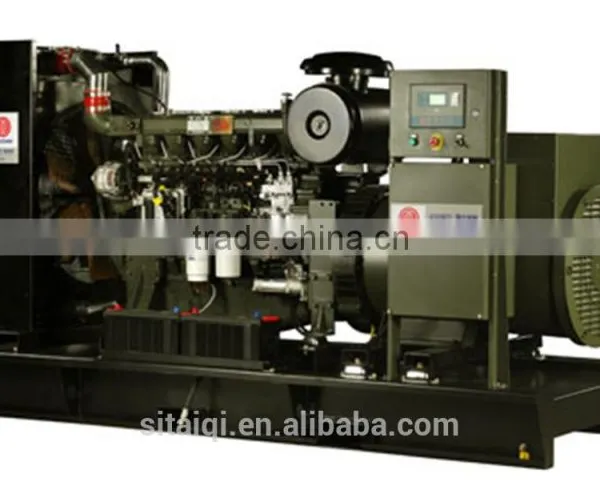

Help CenterWeichai 150-300kW Series Land Standard Diesel Genset
Related Products
-
Weichai 20-120kW Series Land Standard Diesel GensetUS$ 5,000 - 50,000MOQ: 1 Set -
Weichai 10-50kW Series Land Standard GensetUS$ 5,000 - 50,000MOQ: 1 Set
-
300kW Series Shelter Genset Gensets Diesel GeneratorUS$ 5,000 - 50,000MOQ: 1 Unit
-
350-630kW Series Shelter Genset Gensets Diesel GeneratorUS$ 5,000 - 50,000MOQ: 1 Unit
-
Weichai 150-300kW Movable Power Station Gensets Diesel GeneratorUS$ 5,000 - 50,000MOQ: 1 Unit
The 150-300Kw Series Land Standard Genset adopts WP10, WP12 and WP13 series diesel engines as its power source and equipped with brand name generators and high-performance control system. The engines are independently developed by Weichai Group by absorbing European and American design concept. It has advantages of good appearance, high reliability, stable performance, high accuracy in pressure adjustment and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
Features:
- It delivers excellent performances.
- With modular design and compact structure, this series Genset delivers excellent performances inclusive of high power, high reliability, high versatility and easy maintenance for its components.
- Its generator is safe and reliable.
- It uses brand name generators with an insulation Grade ≥ F Class.
- It can easily start up and stop.
- It can start up quickly and reach a full load in a short time.
- it is highly economic.
- Low overall costs, high fuel economy and high thermal efficiency. Its fuel consumption curve changes slightly under changing working conditions. It is also highly economic under low load.
150-300kW Series Standard Generating Sets
| Set model | Rated power (kW) |
Rated voltage (V) |
Fuel consumption at rated load (L/h) |
Weichai WP10,WP12,WP13 Series Diesel Engine | Excitation mode | |||||
| Engine model | Rated power (kW) |
Rated speed (r/min) |
No. of cylinders | Bore×Stroke | Cooling method | |||||
| WD206/8 | 150 | 400/230 | 43.6 | WP10D200E200 | 182 | 1500 | 6 | 126×130 | Close water cooling | Brushless |
| WD247.5/8 | 180 | 400/230 | 52.7 | WP10D238E200 | 216 | 1500 | 6 | 126×130 | Close water cooling | Brushless |
| WD275/8 | 200 | 400/230 | 59.3 | WP10D264E200 | 240 | 1500 | 6 | 126×130 | Close water cooling | Brushless |
| WD344/8 | 250 | 400/230 | 68.7 | WP12D317E200 | 288 | 1500 | 6 | 126×155 | Close water cooling | Brushless |
| WD412.5/8 | 300 | 400/230 | 91.4 | WP13D385E200 | 350 | 1500 | 6 | 127×165 | Close water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
