SRB22-1A copper wind turbine coils winding machine
Descriptions of winding machine
Spindle number |
1 |
Wire size range |
0.05-2.0MM |
Winder width |
180MM |
Max.speed |
0-4000turns/min(Two levels of adjustable)
|
Input power |
220V 50HZ/60HZ |
Spindle motor |
Three-phase motor+Phase motor+ AC Drives |
Winder motor |
Stepping motor |
Machine size |
600×360×450mm |
Package size |
780×810×580mm |
Net weight |
60kg |
Gross weight |
80kg |
Loop diameter |
200mm |
Max wire distance |
9.99mm |
Application range:
EE transformer,EI transformer,Stepping motor,Relay,coil class,auto ABS,
Switch power transformer and special products.

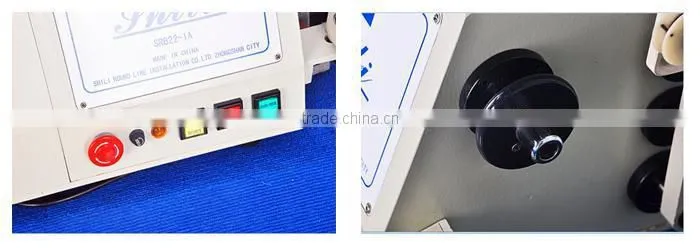

Details images of winding machine
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc .
3. Q: What is the payment term
A: The payment term is 100% T/T before shipment.
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
5. Q: What is the warranty period of the machine?
A: The warranty period is one year.
