Home > Industrial Equipment & Components > Power & Generating Sets > Wind Generator > Weichai 350-630kW Series Land Standard Diesel Genset

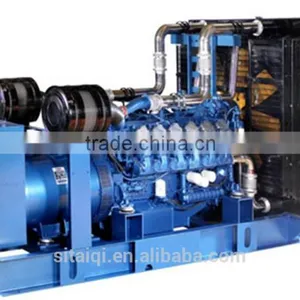

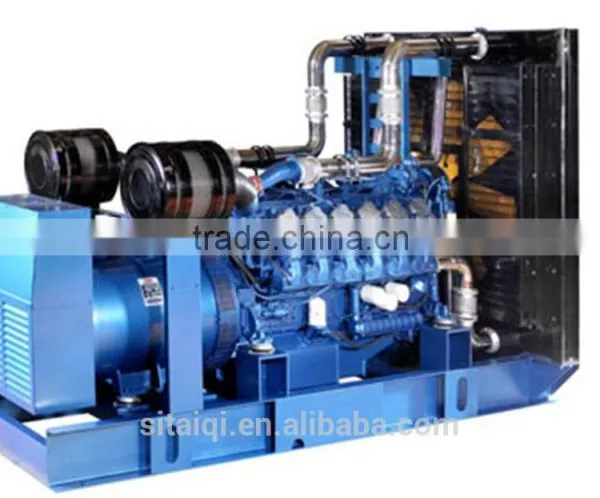

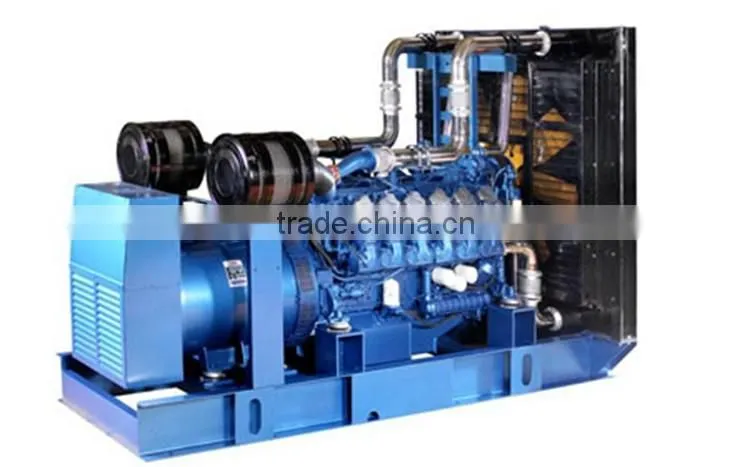

Weichai 350-630kW Series Land Standard Diesel Genset

Name: Weichai 350-630kW Series Land Standard Diesel Genset
Brand: Weichai
SKU: 112656627
Availability: InStock

Weichai 350-630kW Series Land Standard Diesel Genset thumbnail-1

Weichai 350-630kW Series Land Standard Diesel Genset photo-1

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Weichai

Model Number:

350-630kW Series

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or other ports in China Mainland

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Weichai

Model Number 350-630kW Series

Type Generator

Electricity Generator Type Other, Diesel Genset

Output Voltage (V) 400

Product Description

The 350-630kW Series Land Standard Genset adopts M26 series diesel engines produced by France-based Baudouin wholly owned by Weichai Group as its power source, and equipped with brand name generators and high-performance control system. It has advantages of good appearance, high reliability, stable performance, high accuracy in pressure adjustment and easy maintenance. According to control functions, it can be further divided into regular Genset and automated Genset. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.

Features:

High reliability and long durability. TBO reaches 32,000 hours.
Low overall costs, high fuel economy and high thermal efficiency. Its fuel consumption curve changes slightly under changing working conditions. It is also highly economic under low load.
Compact structure and an good appearance.
With composite chromium-plated vibration damper, it delivers low vibration and noise.
All rotation parts of the engine are equipped with protection cover. Protection grade of generator ≥ F Class,isolation grade of generator ≥F Class. The Genset is safe and reliable in operation.

Main Technical Data

350-630kW Series General Generating Sets

Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Weichai M26 Series Diesel Engine						Excitation mode
Set model	Rated power (kW)	Rated voltage (V)	Fuel consumption at rated load (L/h)	Engine model	Rated power (kW)	Rated speed (r/min)	No. of cylinders	Bore×Stroke(mm)	Cooling method	Excitation mode
WD481/7	350	400/230	81.5	6M26	388	1500	6	150×150	Close water cooling	Brushless
WD687.5/7	500	400/230	116.0	12M26	680	1500	12V	150×150	Close water cooling	Brushless
WD756/7	550	400/230	127.6	12M26	680	1500	12V	150×150	Close water cooling	Brushless
WD825/7	600	400/230	139.2	12M26	680	1500	12V	150×150	Close water cooling	Brushless
WD866/7	630	400/230	150.0	12M26	680	1500	12V	150×150	Close water cooling	Brushless
The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.

Product Application

Weichai land gen-sets are widely uses as lighting power in factory, drilling, railway, agriculture and others; as mobile power in broadcast communication, flood control and drought relief, engineering construction; as emergency standby power in hospital, hotel , school and other public facilities. Weichai land gen-sets are widely used in national defense, shipping, telecommunication, petroleum, working on plateau, mineral mining, aquaculture, real estate, construction site, traffic and other fields.
