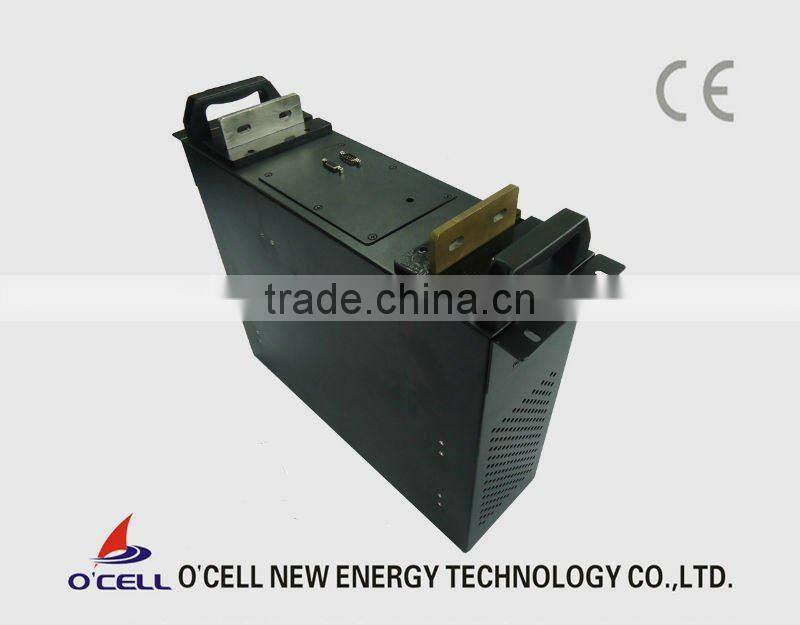

640V180Ah LiFePO4 Battery System for Peak Shaving

Item

Comments

Battery module

90Ahr or 1112Whr (316PCS O’CELL IFR18650PC-1.1Ah cells in a 4S79P configuration.)

Approx. Dimension

428mm*133.5mm*340mm (19" 3U)

Approx. Weight

26.4kg

Nominal voltage

12.8V

Maximum voltage

14.6V

Minimum voltage

10.0V

Nominal load current

270A max. continuous current @ 23° C

Peak load current

900A max for 30 sec @ 23° C

Charge protection

When the Battery modules are charged to full, they will communicate with BMU, and the BMU has the capability to turn off the charger or open the main contactor. The battery module itself does not have any switch to disconnect the charger.

Balancing

The intra-module balancing circuit is used to compensate slight capacity imbalance among the four cell blocks within a battery module.

The inter-module balancing circuit is used to compensate slight capacity imbalance between different battery modules in series connection.

State of Charge (SOC)

 Measurement

Individual cell block voltage and charge/discharge current will be used to monitor the SOC of the battery module. The estimated capacity used for the calculations will be adjusted to meet the capacity of the lowest capacity cell block when the battery system is fully cycled. The state of charge will be adjusted for normal self discharge of the battery system when the unit is not on charge.

RS-485 communication Uplink

RS-485 Communications will be used to communicate with the BMU or connection to other battery Modules.

RS-485 communication Downlink

RS-485 Communication connection from Downstream battery module.

RS-485 insulation voltage rating

1414V , 5000V rms for 1 minute

Status LED

A Dual LED on module to indicate working status. One is green and the other one is red. Blinking of the green LED indicates that the module is working properly. Blinking of the red LED indicates that the module has failure and needs service.
