High Speed Rotogravure Printing Machine Japan Motor
PRODUCTS WORKSHOP
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
Use: | |

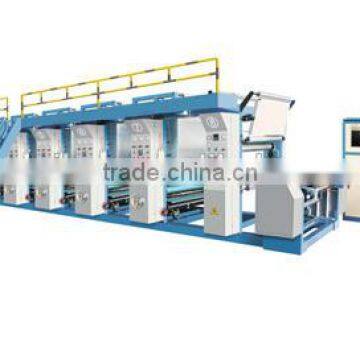

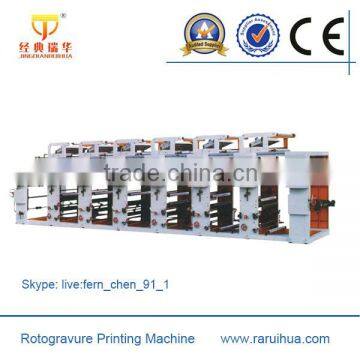

High Speed Rotogravure Printing Machine Japan Motor is suitable for various materials roll to roll printing, like film(BOPP. PET. PVC. PE.), paper, aluminium foils, etc. Machine is with good printing performance for rolling material with continuous printing. | |
Specifications: | |
1. High Speed Rotogravure Printing Machine Japan Motor consists of several printing sets, can do front and back printing for multi colors in one process. Printing color unit can be increased or decreased according to the customers' needs. | |
2.High Speed Rotogravure Printing Machine Japan Motor is with automatic tension controller for unwinding and rewinding parts, both are controlled by magnetic powder tension controller | |
3. High Speed Rotogravure Printing Machine Japan Motor is with automatic ink recycle system | |
4. Printing plate is with 360 degree of adjustment system, ease of operation, and stability. | |
5. The parts of transmission are adopted with gear structure with full sealing lubrication. | |
6. Rewinding part is with torque motor control. Unwinding and rewinding are both with double station for working, which can achieve non-stop material feeding. | |
7. Printing speed is controlled by the stepless motor. | |
8. Machine foundation is made of channel steel, stable. | |
Main Technical Parameters | |
Model of Machine | ASY-A1000 |
Effective Printing Width | 1000mm |
Max. Width of Base Material | 1050mm |
Max. Printing Speed | 100m/min |
Max. Mechanical Speed | 150m/min |
Max. Dia. Of Rolling of Releasing | 600,, |
Inside Dia. Of Roll Core of Base Material | Φ 76mm |
Dia. Of Printing Plate Roller | 120-300mm |
Modified Accuracy of Computer Registration | ± 0.15mm(Whole Machine) |
Control Range of Tension | 0~25kg/Full width |
Heating Power of Oven | 75kw |
Total Power of Machine | 85kw |
Weight of Machine | 13000kgs |
Overall Dimensions(L*W*H) | 12400× 2900× 2550mm |

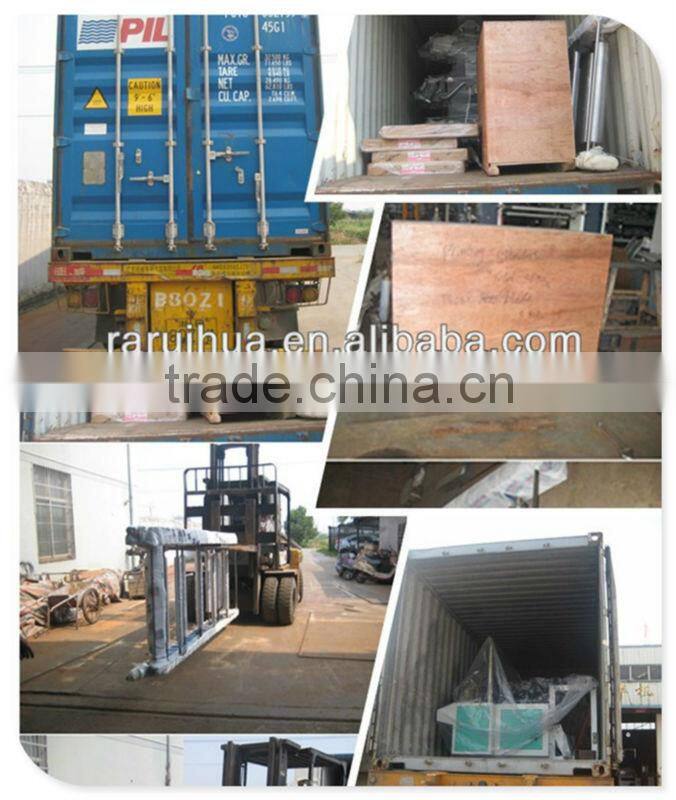

Package&Shipping:
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
1.Q:Are you a factory or trading company ?
A:We are a factory
2. Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China. It's about 40 minutes by plane from shanghai (5 hours by train ) All our clients from home and abroad are warmly welcome to visit us
3. Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years , we will send our professional engineer to install and test machine .So our after-sales service is always reliable
4. Q:How can I get sample bags ?
A: We are honored to offer sample bags
5. Q:If your machines can print ..........
A : Our machines is multifunction , can do roll to roll printing , such as paper, plastic , woven , nonwoven .Surely , you can offer your products, Let us confirm it . we will suggest you the best project.
6 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory , we put more time to the quality control
---------------------------------------------------------------------------------------------------------------
More details, pls feel free to contact.
