Paper Roll Clamp China Factory Sales



Product Description

1.Application

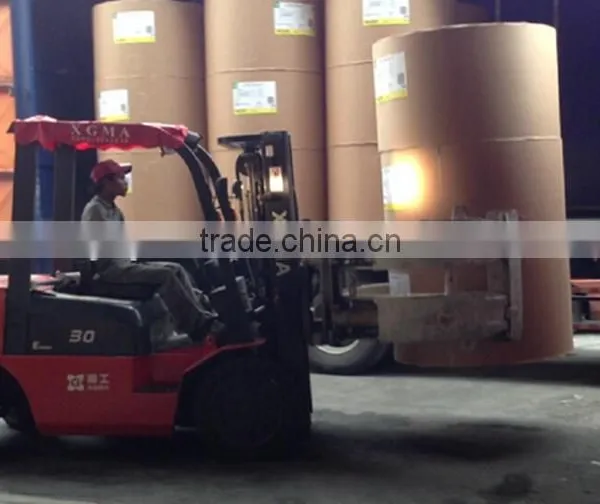

As a professional China fatory sales of forklift attachments, HEZE brand paper roll clams have been widely used in industries like paper making, warehousing, printing,port,packaging, and etc.

Make your work more efficient and saver, reduce time and labor costs, minimize damages to the goods.





2,Features

*WONTONNE brand is first class in China, which technology is from America.






*Key parts and accessories are world class,which is different from other small factories.






*Strict production flow, HEZE is an responsible China factory sales

Paper Roll Clamp China Factory Sales




3.  Specifications

Capacity Roll  Catalog Type Mounting  Mounting Long Short Long Weight Effective Horizontal
Range Order No. Class Angle Arm Arm Arm Thickness Center of
        Length Length Thickness   Gravity
(kg) (mm)         A(mm) C(mm) B(mm) (kg) ET(mm) CGH(mm)
1200 410-1300 RCF15F-013A A II 0° 790 580 330 354 135 221
1300 330-1150 RCF15F-014A A II 0° 685 515 330 343 135 216
1100 450-1500 RCF15F-015A A II 1.5° 890 680 330 435 150 270
1000 560-1600 RCF15F-016A A II 1.5° 940 730 330 455 150 290
2000 250-1300 RCP20F-001A A II 0° 825 570 45 677 197 287
2000 250-1300 RCP20F-001B B III 0° 825 570 45 690 237 325
2000 630-1300 RCF20F-002A A II 0° 825 570 45 667 197 282
2000 630-1300 RCF20F-002B A III 0° 825 570 45 681 237 320
2000 250-1500 RCP20F-003A B II 0° 955 775 95 751 197 283
2000 250-1500 RCP20F-003B B III 0° 955 775 95 765 237 307
2000 530-1500 RCF20F-004A A II 0° 955 775 95 744 197 280
2000 530-1500 RCF20F-004B A III 0° 955 775 95 758 237 304
2000 630-1600 RCF20F-005A/B A II/III 0° 955 775 95 755 183/216 301
2000 350-1600 RCP20F-006A/B B II/III 0° 955 775 95 765 183/216 304
1700 680-1830 RCF20F-007A A III 0° 1130 930 115 880 239 445
1700 380-1830 RCP20F-008B B III 0° 1130 930 115 886 239 445
2700 330-1350 RCP30F-009B B III 0° 850 570 65 759 198 272
2700 590-1350 RCF30F-012B A III 0° 850 570 65 752 198 272
2700 250-1520 RCP30F-011B B III 0° 955 685 50 830 198 307
2700 560-1520 RCF30F-010B A III 0° 955 685 50 823 198 307
2000 250-1300 RCS20D-001A C II 0° 825 560 45 717 197 269
2000 250-1300 RCS20D-001B C III 0° 825 560 45 731 237 307
2700 250-1300 RCS30D-002A C II 0° 845 570 70 854 203 277
2700 250-1300 RCS30S-002B C III 0° 845 570 70 858 198 272
3500 250-1520 RCP35F-001B B III 0° 1000 670 65 1190 218 320
3500 250-1520 RCP35F-001C B IV 0° 1000 670 65 1199 218 320
3500 610-1520 RCF35F-002B B III 0° 1000 670 65 1180 218 320
3500 610-1520 RCF35F-002C B IV 0° 1000 670 65 1190 218 320
2700 360-1830 RCP35F-003B B III 0° 1165 810 65 1289 218 353
2700 360-1830 RCP35F-003C B IV 0° 1165 810 65 1298 218 353
2700 635-1830 RCF35F-004B A III 0° 1165 810 65 1280 218 353
2700 635-1830 RCF35F-004C A IV 0° 1165 810 65 1289 218 353
4000 250-1300 RCP35F-007B B III 0° 875 575 65 1146 218 295
4000 250-1300 RCP35F-007C B IV 0° 875 575 65 1155 218 295
4000 560-1300 RCF35F-008B A III 0° 875 575 65 1137 218 295
4000 560-1300 RCF35F-008C A IV 0° 875 575 65 1146 218 295
4100 250-1520 RCP45F-001C B IV 0° 965 680 85 1294 198 310
4100 530-1520 RCF45F-002C A IV 0° 965 680 85 1285 198 310
3400 360-1830 RCP45F-003C B IV 0° 1105 815 85 1385 198 338
3400 660-1830 RCF45F-004C A IV 0° 1105 815 85 1376 198 338
2700 450-2200 RCP45F-005C B IV 0° 1305 915 85 1490 198 380
2700 850-2200 RCF45F-006C A IV 0° 1305 915 85 1480 198 380
4500 250-1300 RCP45F-007C B IV 0° 900 565 85 1242 198 284
4500 560-1300 RCF45F-008C A IV 0° 900 565 85 1233 198 284

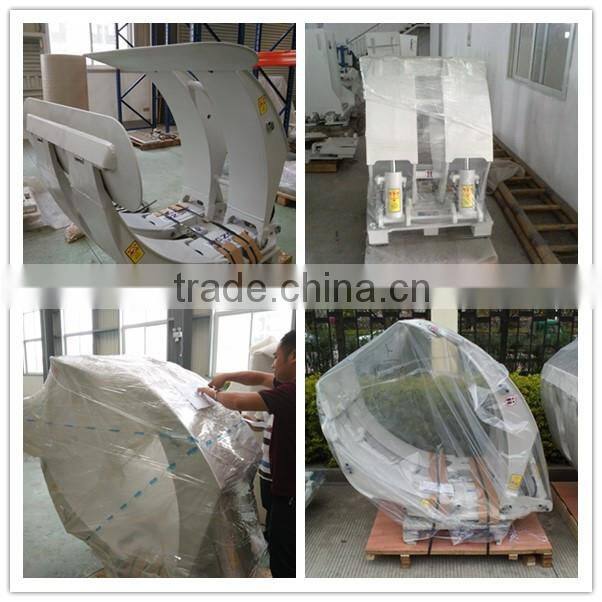

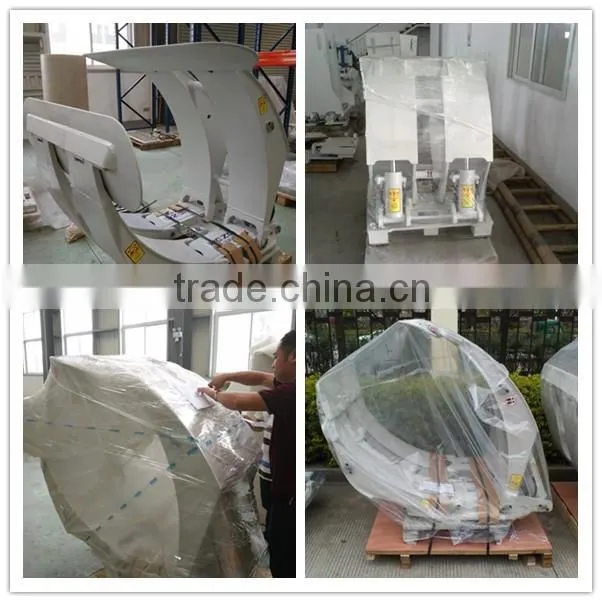

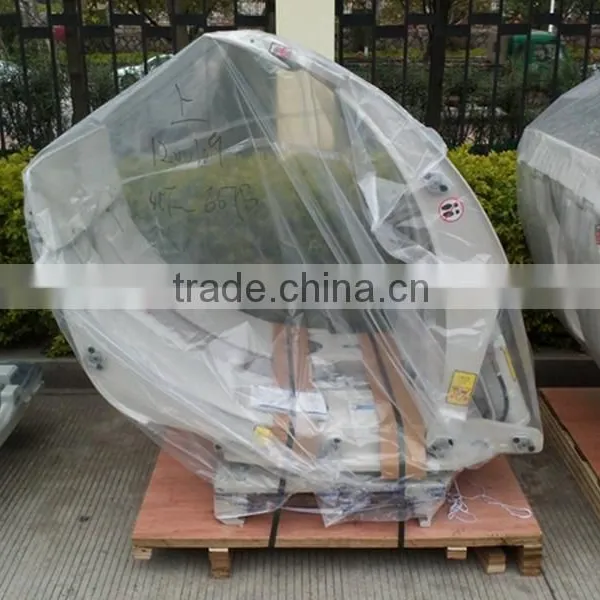

4.  Good packages

Paper Roll Clamp China Factory Sales


5.   Optional and parts
Custom open ranges

Positioned arm or fixed short arm

Split long arm

Special pads
