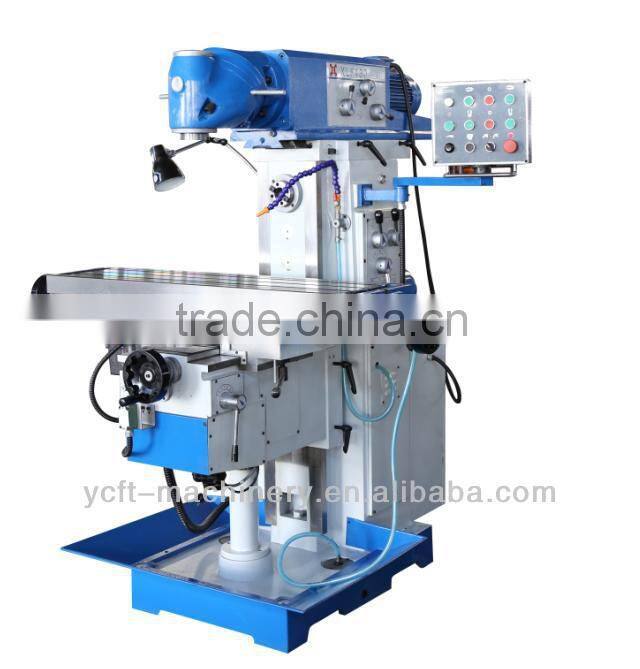

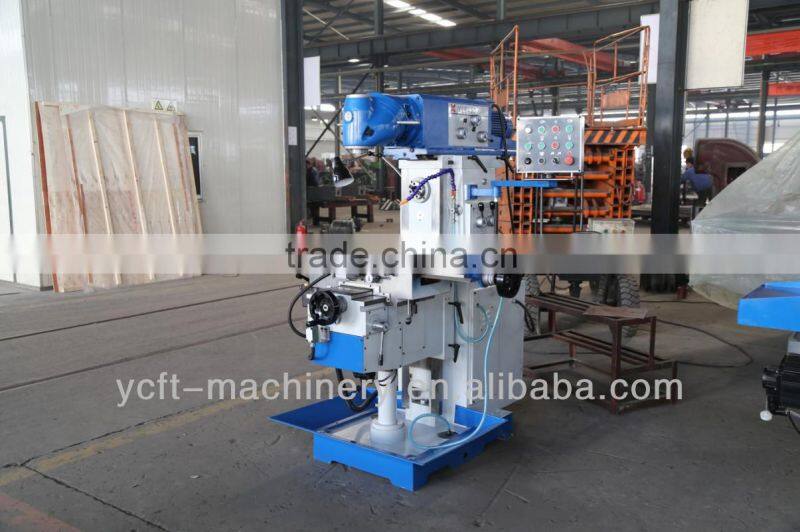

XL6430/XQ6432 Ram Milling Machine
Negotiable
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | XILI | Model Number | XL6430/XQ6432 | |
| Type | Vertical | CNC or Not | Normal | |
| Power(W) | 3KW | Certification | ISO/CE | |
| Warranty | ONE YEAR | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
XL6430/XQ6432 Ram Milling Machine| Specifications | Unit | XL6430 | XL6430A | XL6430W | XL6430AW |
| XQ6432 | XQ6432A | XQ6432W | XQ6432AW | ||
| Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 |
| 1270*320 | 1370*320 | 1270*320 | 1370*320 | ||
| T-slots(NO./width/pitch) | mm | 3*14*80 | |||
| Max table travel - X | mm | 720 | 820 | 720 | 820 |
| Max table travel - Y | mm | 300 | |||
| Max table travel - Z | mm | 400 | |||
| Spindle taper | - | 7:24 ISO40 | |||
| Max rotary angle of table | - | 45° | |||
| Distance between spindle center line and table surface | mm | 75-475 | 35-435 | ||
| Distance between spindle nose and table surface | mm | 260-660 | 220-620 | ||
| Distance from horizontal spindle center line to arm surface | mm | 180 | |||
| Spindle speed range | r.p.m | (V)11 steps 45-1660; (H)12 steps 35-1500 | |||
| Arm travel | mm | 400 | |||
| Table feed(X/Y/Z) | mm/min | No finite | |||
| Table rapid speed | 1000/1000/750 | ||||
| Main motor power | Kw | 3 | |||
| Torque of X/Y/Z axis AC servo motor | Nm | 10 | |||
| Cooling pump motor power | W | 40 | |||
| Flow of cooling pump | L/m | 12 | |||
| Overall size | mm | 1720*1680*1860 | 1820*1680*1860 | 1720*1680*1860 | 1820*1680*1860 |
| Standard accessories | ||
| Specification Model | Qty | |
| Inner hexagon spanner | 5 | 1 piece |
| Inner hexagon spanner | 6 (XL6430W / XL6430AW) | 1 piece |
| Inner hexagon spanner | 10 | 1 piece |
| Inner hexagon spanner | 12 | 1piece |
| Double-ended wrench | 17x19 | 1 piece |
| Double-ended wrench | 22X24 | 1 piece |
| Double-ended wrench | 32x36 | 1 piece |
| Handle | - | 1 piece |
| Machine vise | Q13 136 | 1 piece |
| Cutter arbor | 7:24 ISO40 Φ27 | 1 set |
| ISO 40 Handle set of cutter bar | Φ27 | 1 piece |
| ISO40 milling chuck | 4,5,6,8,10,12,14,16 | 1 set |
| Draw bar | M16(H,Z) | 1 piece/per |
| Nut | M16 | 2 pieces |
| Gasket | 16 | 2 pieces |
