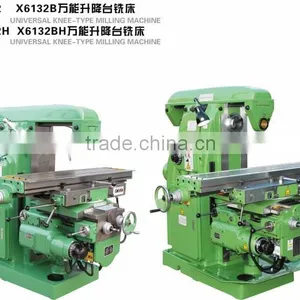

X6132 SERIE Unirversal Knee Type Milling Machine

Name: X6132 SERIE Unirversal Knee Type Milling Machine
Brand: XILI
SKU: 110835313
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number X6132

Type Vertical

CNC or Not Normal

Power(W) 9KW

Certification ISO/CE

Warranty ONE YEAR

After-sales Service Provided No overseas service provided

Specifications

Specifications
1.Universal Milling machine
2.table rotary 45 degree

specification	unit	X6132	X6132B		X6132H	X6132BH
Table size	mm	320X1325	320X1600		320X1325	320X1600
Max Longitudinal travel(manual/auto)	mm	700/680	900/880		700/680	900/880
Max transverse travel(manual/auto)	mm	255/240
Max vertical travel(manual/auto)	mm	320/300			410/390
Max rotary angle		±45°
Distance between spindle axis table	mm	30/350		30/440
Spindle speed step		18 steps
Spindle speed range		30-1500
Feed range of table travel	steps	18 steps
Main motor power	kw	7.5
Feed motor power	kw	1.5
Overall size (L x W x H)	mm	2294X1770X1610	2294X2050X1610		2294X1770X1790	2294X2050X1790
N.W/G.W	kg	2650/2950	2740/3040		2850/3150	2940/3240

Standard accessories
	Specification Model	Qty
Lifting crank	-	1set
ISO50 Cutter arbor Cutter arbor	φ40	1 set
Horizontal arbor assembly	Φ22	1 set
Horizontal arbor assembly	Φ27	1 set
Horizontal arbor assembly	Φ32	1 set
Oil gun		1 piece
Drawbar	M24x720	1 piece
Double-ended wrench	13x14	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece
Optional Accessories
	Specification Model	Remark
XC Series Vertical milling head	XC622B	7:24 ISO
XC Series Universal milling head	XC624A	MT4
Universal dividing head	125A	Include three-jaw chuck
Universal dividing head	160	Include three-jaw chuck
Swivel table	φ320	Manual
Indexable carbide mill tool	φ63	With shank
Indexable carbide mill tool	φ100	No shank
Indexable carbide mill tool	φ160	No shank
Sizing block	240x120	6 pieces/set
Clamping kit
Milling chucks	15pcs/Set
Q13 Series Machine vice	160
Q13 Series Machine vice	200
Q13 Series Machine vice	250
Q13 Series Machine vice	320
Q41 Series Machine Vice	160
