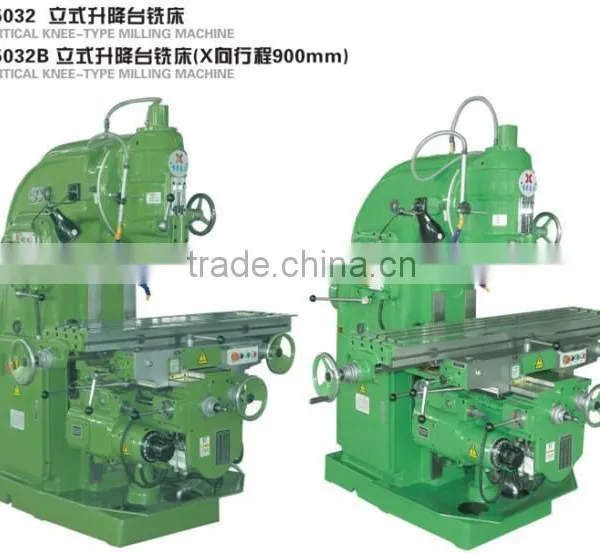

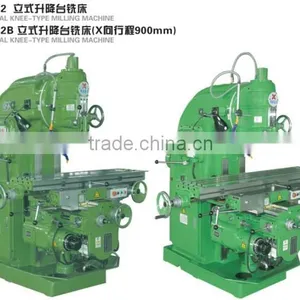

X5032 SERIE Vertical Knee-type Milling Machine

Name: X5032 SERIE Vertical Knee-type Milling Machine
Brand: XILI
SKU: 110835335
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Jiangsu Lionkin Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number X5032

Type Vertical

CNC or Not Normal

Power(W) 9KW

Weight 2900-3400

Certification ISO/CE

Warranty ONE YEAR

After-sales Service Provided No overseas service provided

Specifications

1.Vertical Milling Machine with good quality
2,Milling machine Table sizes:1700X400
3, Milling machine IS09001

Specification	Unit	X5032	X5032B	X5032H	X5032BH
Table size	mm	320X1325	320X1600	320X1325	320X1600
T-slots(NO./Width/Pitch)		3/18/70
Longitudinal travel (manual/auto)	mm	700/680	900/880	700/680	900/880
Cross travel (manual/auto)	mm	255/240
Vertical travel (manual/auto)	mm	370/350		460/440
Rapid feed speed X/Y/Z	mm/min	2300/1540/770
Spindle bore diameter	mm	29
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18steps
Stroke of spindle quill	mm	70
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	30-400		30-490
Distance between spindle axis and column guideway	mm	350
Feed motor power	kw	1.5
Main motor Power	kw	7.5
Overall size(L×W×H)	mm	2294×1770×1904	2294×2050×1904	2294×1770×2084	2294×2050×2084
Net weight	kg	2900/3200	3000/3300		3100/3400

Standard accessories
	Specification Model	Qty
Drawbar		1set
ISO50 Mill chuck	4,5,6,8,10,12,14,16	8 pieces/set
ISO50 Cutter arborCutter arbor	φ40	1 piece
7:24 The middle set	7:24 ISO50/MS4	1piece
Oil gun		1 piece
Inner hexagon spanner	6	1 piece
Double-ended wrench	17x19	1 piece
Double-ended wrench	22x24	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Single head spanner	14	1 piece
Single head spanner	50	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece
Optional Accessories
	Specification Model	Remark
Universal dividing head	125A	Include three-jaw chuck
Universal dividing head	160	Include three-jaw chuck
Swivel table	φ320	Manual
Indexable carbide mill tool	φ63	With shank
Indexable carbide mill tool	φ100	No shank
Indexable carbide mill tool	φ160	No shank
Sizing block	240x120	6 pieces/set
Clamping kit
Milling chucks	15sets
