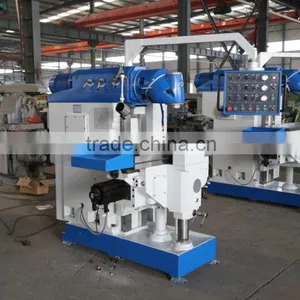

X5746/X5750 Ram Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
XILI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
XILI
Model Number
X5040
Type
Vertical
CNC or Not
Normal
Power(W)
5.5KW-7.5KW
Certification
ISO/CE
Warranty
ONE YEAR
After-sales Service Provided
No overseas service provided
Specifications
X5746/X5750 Ram Milling Machine| Specifications | Unit | X5646 | X5750 | X5750A |
| Table size | mm | 460*1235 | 500*1600 | 500*2000 |
| T-slots(NO./width/pitch) | mm | 5*18*80 | ||
| Table travel (X/Y/Z) | mm | 900*650*450 | 1200*700*500 | 1400*700*500 |
| Swivel angle of milling head | - | 360° | ||
| Spindle taper | - | ISO40 | ISO50 | |
| Spindle speed range | r.p.m | (27) 30-2050 | ||
| Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |
| Table rapid speed | 2200/2200/1100 | |||
| Distance between spindle nose and table surface | mm | 32-482 | 25-525 | |
| Distance from spindle center line to column | mm | 47-697 | 55-755 | |
| Main motor power | Kw | 5.5 | 7.5 | |
| Feed motor | Kw | AC servo motor X/Y:15NM; Z: 18NM | ||
| Max load | Kg | 800 | 1800 | 1800 |
| Overall size | mm | 1835*2362*2090 | 2475*2260*2180 | 2986*2260*2180 |
| weight | kg | 4000 | 5000 | 5500 |
| Standard accessories | ||
| Specification Model | Qty | |
| Drawbar & pad | 1set | |
| ISO40 Mill chuck | 4,5,6,8,10,12,14,16 | 8 pieces/set |
| Cutter arbor | ISO40 φ27 | 1 set |
| Double-ended wrench | 12x14 | 1 piece |
| Double-ended wrench | 22x24 | 1 piece |
| Inner hexagonal wrench | 5 | 1 piece |
| Inner hexagonal wrench | 8 | 1 piece |
| Inner hexagonal wrench | 10 | 1 piece |
